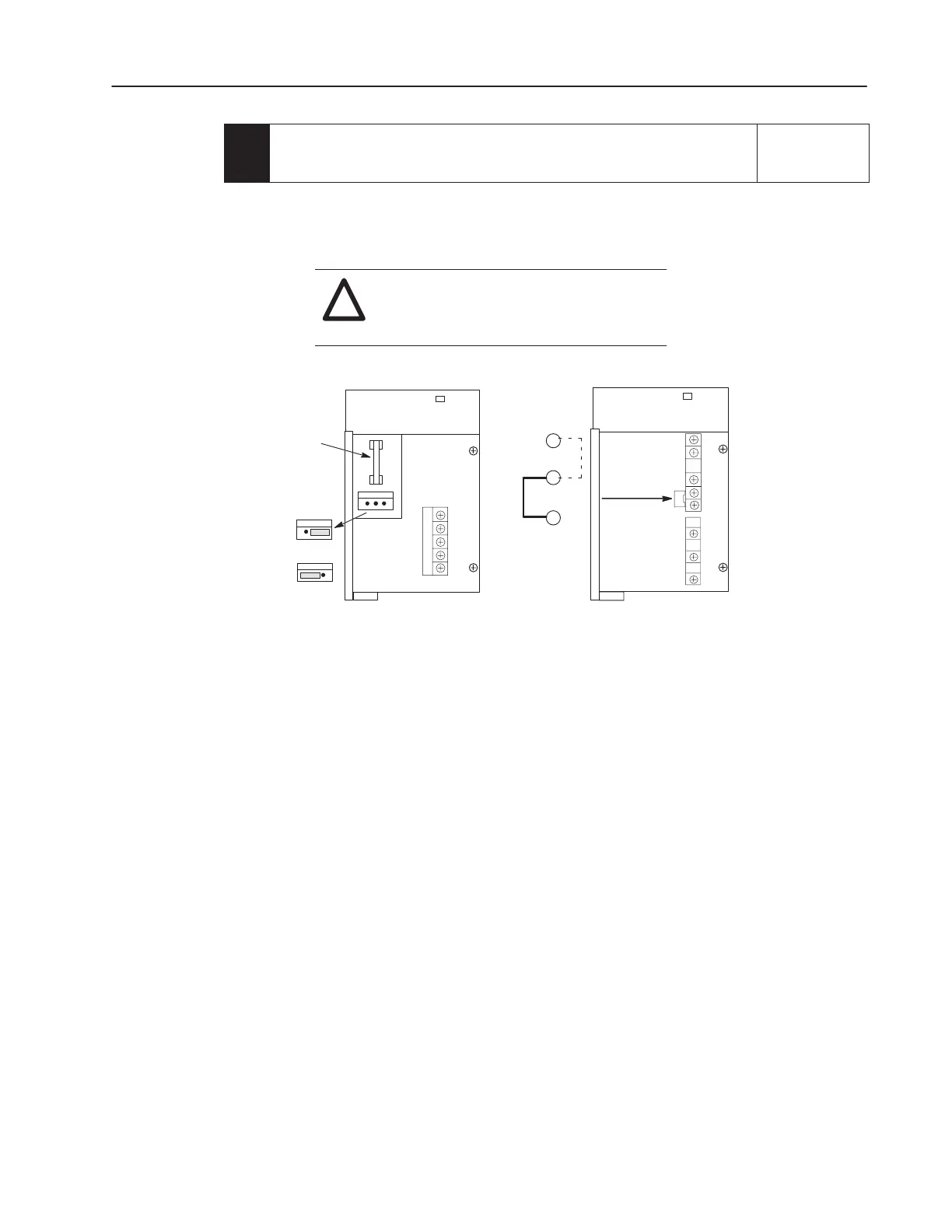

Quick Start for Experienced Users
Publication
1747-6.2
3.
Make
jumper selection for 120/240V ac on 1746-P1, 1746-P2, and
1746-P4 Power Supplies.
Reference
Place the input voltage jumper to match the input voltage. This does not apply to the 1746-P3, or
1746-P5 which do not have jumpers.
Chapter 6
(Installing Your
Hardware
Components)
ATTENTION: Set the input jumper before applying
power. Hazardous voltage is present on exposed pins
when power is applied; contact with the pin may cause
injury to personnel.
!
POWER
100/120 Volts
200/240 V
olts
Catalog Number
1746-P1 & P2
Fuse
85–132 V
AC
170–265 V
AC
Catalog Number
1746-P4
Jumper Selection
Jumper Selection
POWER
