Allen-Bradley SLC 500

2–13 Selecting Your Hardware Components
Publication 1747-6.2
Slot Numbers Description
Catalog
Number
Power
Supply at
5V dc
(Amps)
Power
Supply at
24V dc
(Amps)
0 Processor Unit 1747-L514 0.35 0.105
1 Output Module 1746-OW16 0.17 0.180
2 Combination Module 1746-IO12 0.09 .07
3, 4, 5, 6
Analog Output
Modules
1746-NO4I
0.22
(4 x 0.055)
0.780
(4 x 0.195)
Peripheral
device
Isolated Link Coupler 1747-AIC
Not
Applicable
0.085
Peripheral
device
Interface Converter 1746-PIC
Not
Applicable
Not
Applicable
Total Current: 0.83
1.22
➀
➀
Power Supply 1746-P4 is suf ficient for Chassis #2. The “Internal Current Capacity” for this power
supply is 10 Amps at 5V dc, 2.88 Amps at 24V dc; not to exceed 70 W atts.
?

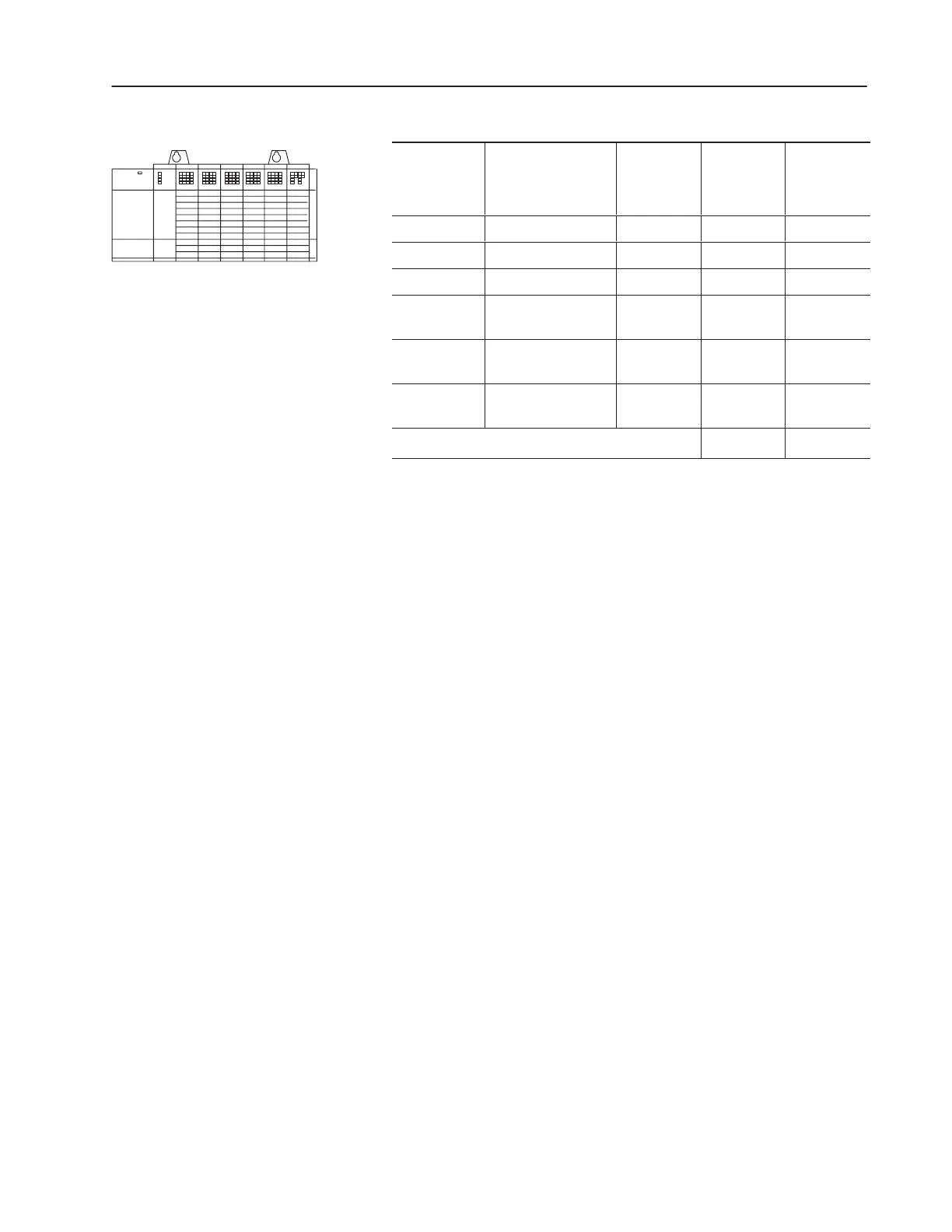

Slot 0 1 2 3 4 5 6
Chassis 2
