Chapter 4 Programming

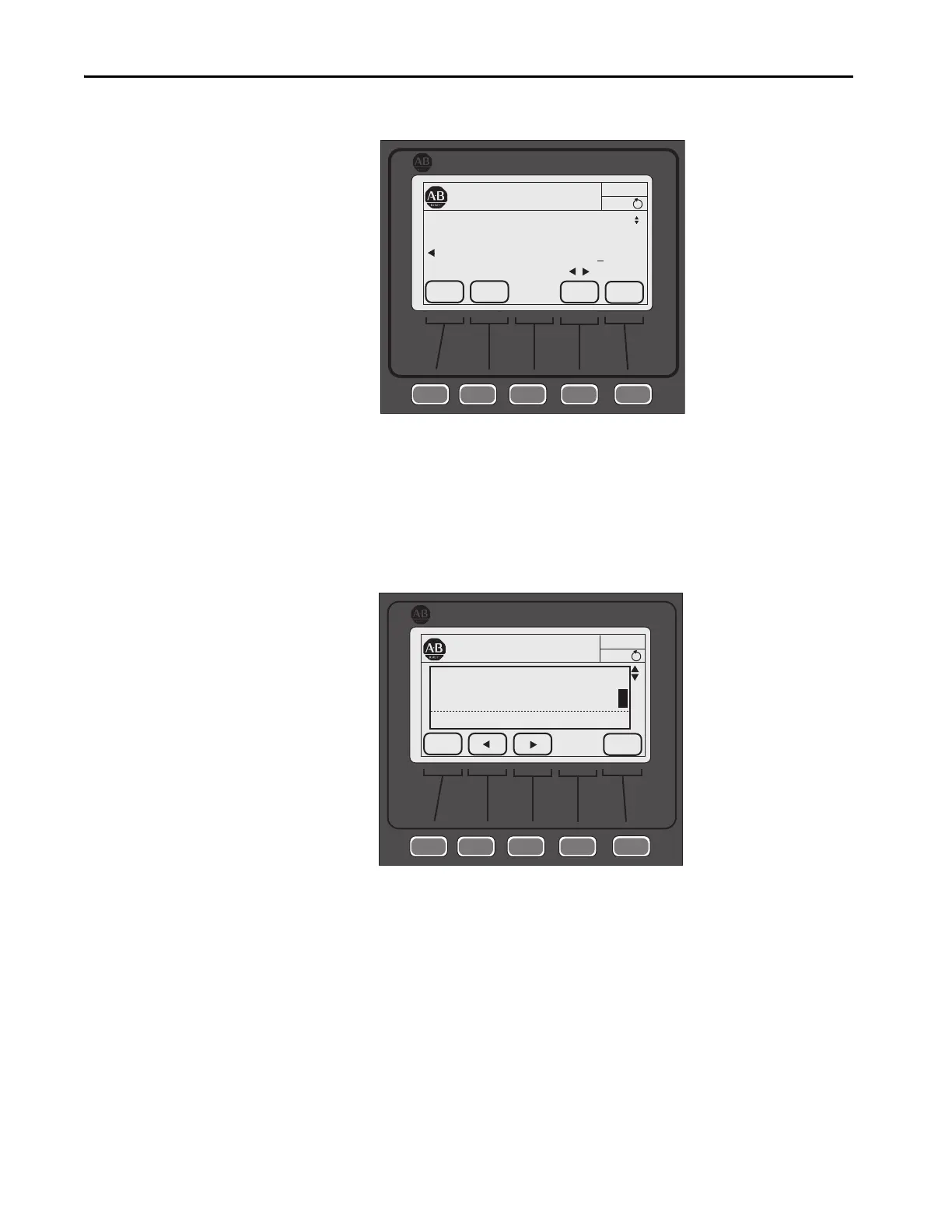

3. Select the desired 16 bit field, then press EDIT.
4. Use the right or left arrow to move the cursor to the desired bit. The bit
function is displayed at the bottom of the screen.
5. Enter a 1 to enable or 0 to disable, then press ENTER to load the change
into the control module.
TIP The UPPER and LOWER soft key allows for switching between the upper (16
to 31) and lower (0 to 16) bits.
PROPERTIES
AUTO
Stopped
0 Amps
Allen-Bradley
ESC
PAR #
Port 00 Dev Param 230
Motor Fault Enable
0000 0000 0000 0000
Bit 01 - Underload
EDIT
UPPER
F
PROPERTIES
AUTO
Stopped
0 Amps
Allen-Bradley
ESC
Port 07 Host Param 2
ENTER
Edit Motor Fault En
xxxx xxxx 0000 0000
Bit 16 - Power Qual
F
