272 Rockwell Automation Publication 1560F-UM001A-EN-P - June 2019
Appendix G Using DeviceLogix

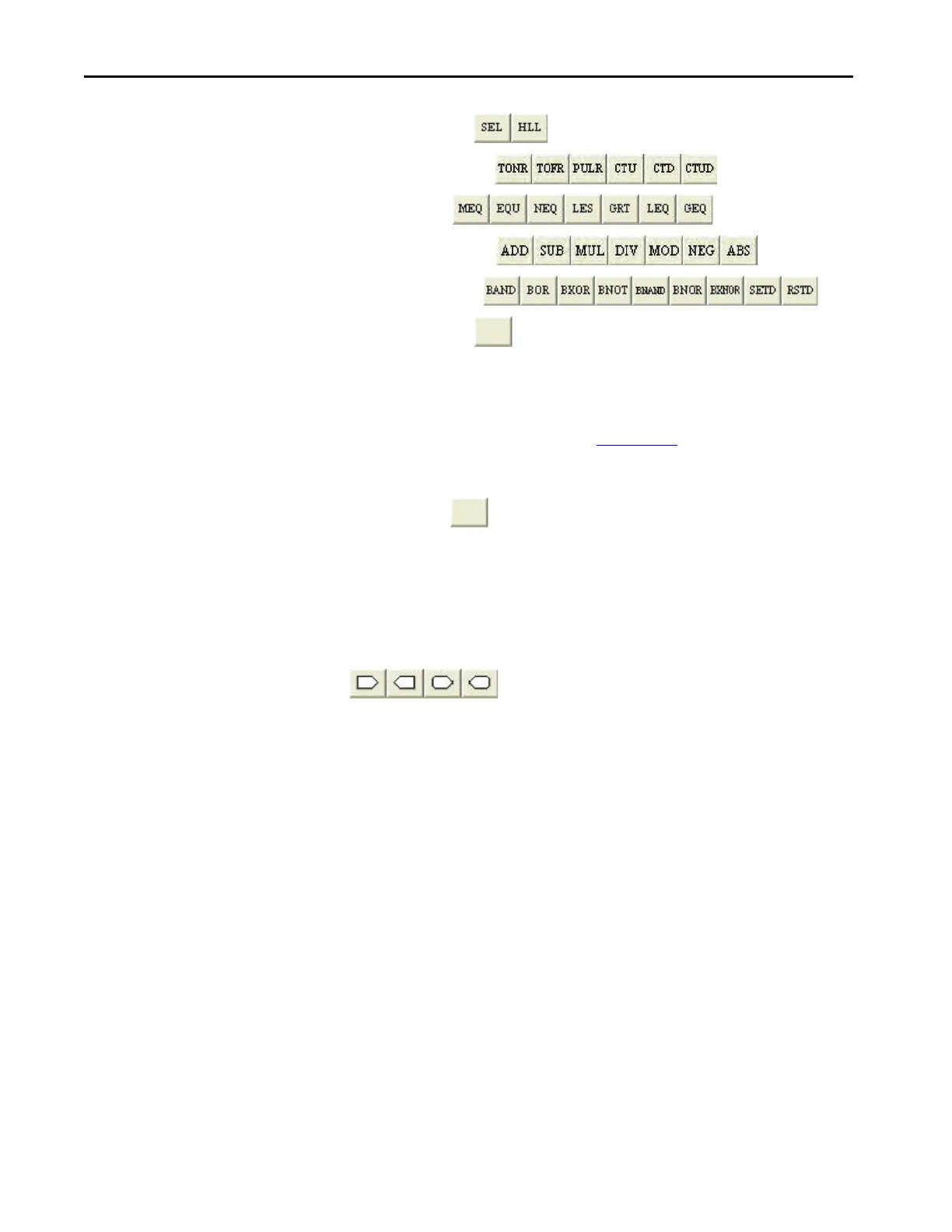

• Select/Limit
• Timer/Counter
• Compare
• Compute/Math
• Move/Logical
• Macro Block
The DeviceLogix Editor provides a graphical interface for configuring
Function Blocks to provide local control within the drive. DeviceLogix Editor
navigation and programming basics are not covered in this manual. Refer to the
DeviceLogix user manual, publication RA-UM003
for additional information.
Macro Blocks
You can create up to five Macro Blocks and you can use each five times. The
selections are empty until you create a Macro Block. You also create the icon
text associated with each Macro Block.
Bit and Analog I/O Points
The DeviceLogix controller in Port 14 uses (32) bit inputs, (18) bit outputs,
(24) analog inputs, and (2) analog outputs.
