Chapter 6 Optional HIM Operation
Table 42 - 20-HIM-A6 Control Button Functionality, Pump Control
HIM Control Screen
The HIM Control Screen is typically used to directly control a drive. Press the
(controls) key to display the Control Screen.

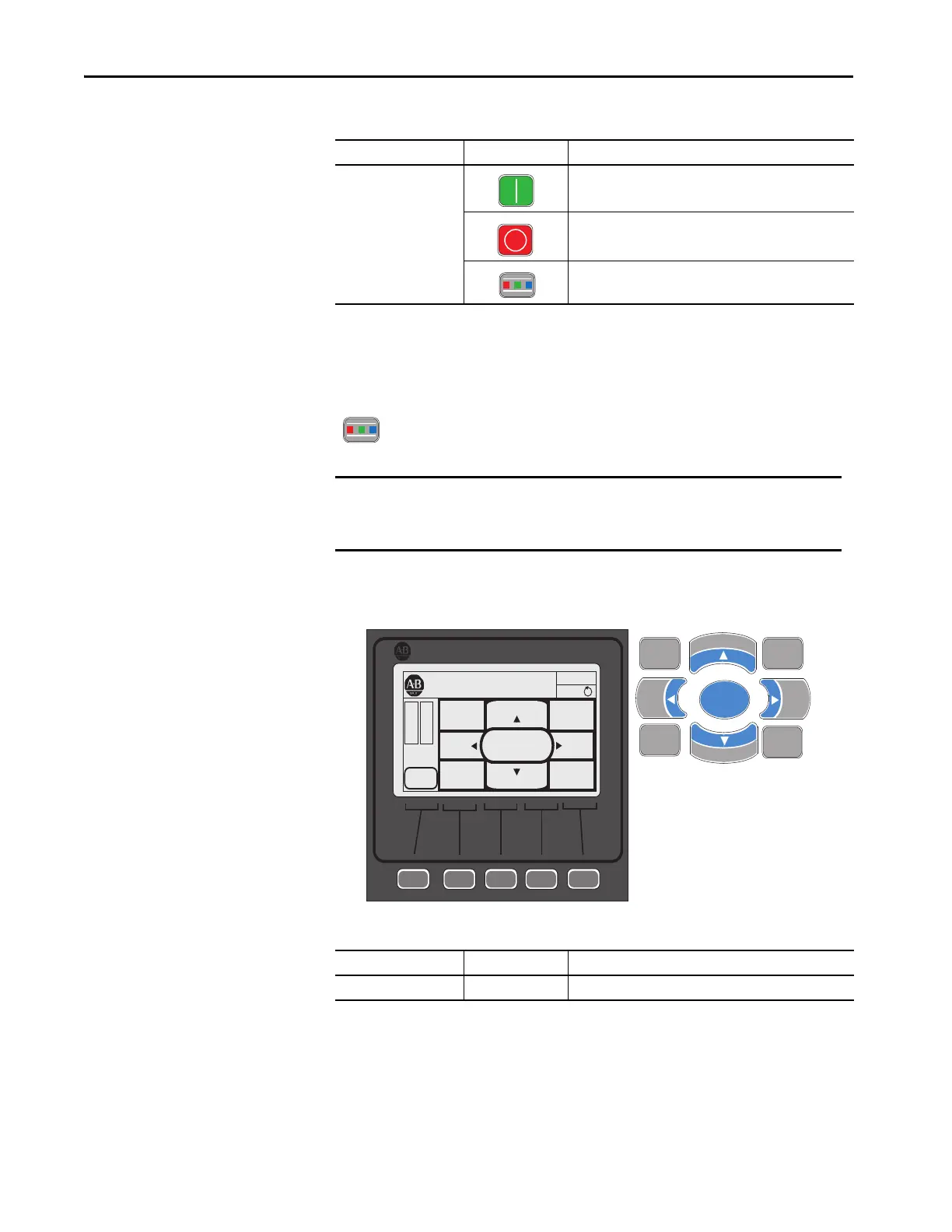

Figure 46 - HIM Control Screen
Table 43 - Control Screen Soft Key Functionality
Option Action Operation When Pressed
Pump Control The green start button begins motor acceleration to full speed.
The red stop button provides a coast stop, and/or reset a fault.
Displays the Control Screen with the Jog button. The jog button
initiates a pump stop maneuver.
IMPORTANT To navigate from the Control Screen to another HIM menu screen, you must
press the ESC soft key. This deactivates the Control Screen and displays the
previous screen.
Label Name Function
ESC Escape Reverts back to the previous screen.
PROPERTIES
AUTO
Stopped
0 Amps
Allen-Bradley
ESC
F
REF
MANUAL
REMOVE
HIM
REV
JOG
REF
HELP
FWD
EDIT
REF
REF
FBK
2
5
4
6
8
9
7
1
3
Control Screen Key Function Control Screen Navigation Number Keys
The Control Screen Key Function map
corresponds with the Control Screen
Navigation/Number Keys on the HIM.
