Programming Chapter 4
Parameter Search and Configuration
The 20-HIM-A6 or 20-HIM-C6S modules can access all of the controller
parameters. These modules provide two basic ways to search for and modify a
specific parameter or group of parameters: by parameter number or File-Group.
The following example explains how to search by parameter number using the
20-HIM-A6 module.
Parameter Search and Configuration by Parameter Number
To perform a parameter number search and modification, perform the following
steps.
Parameter Search and Configuration by Parameter Number

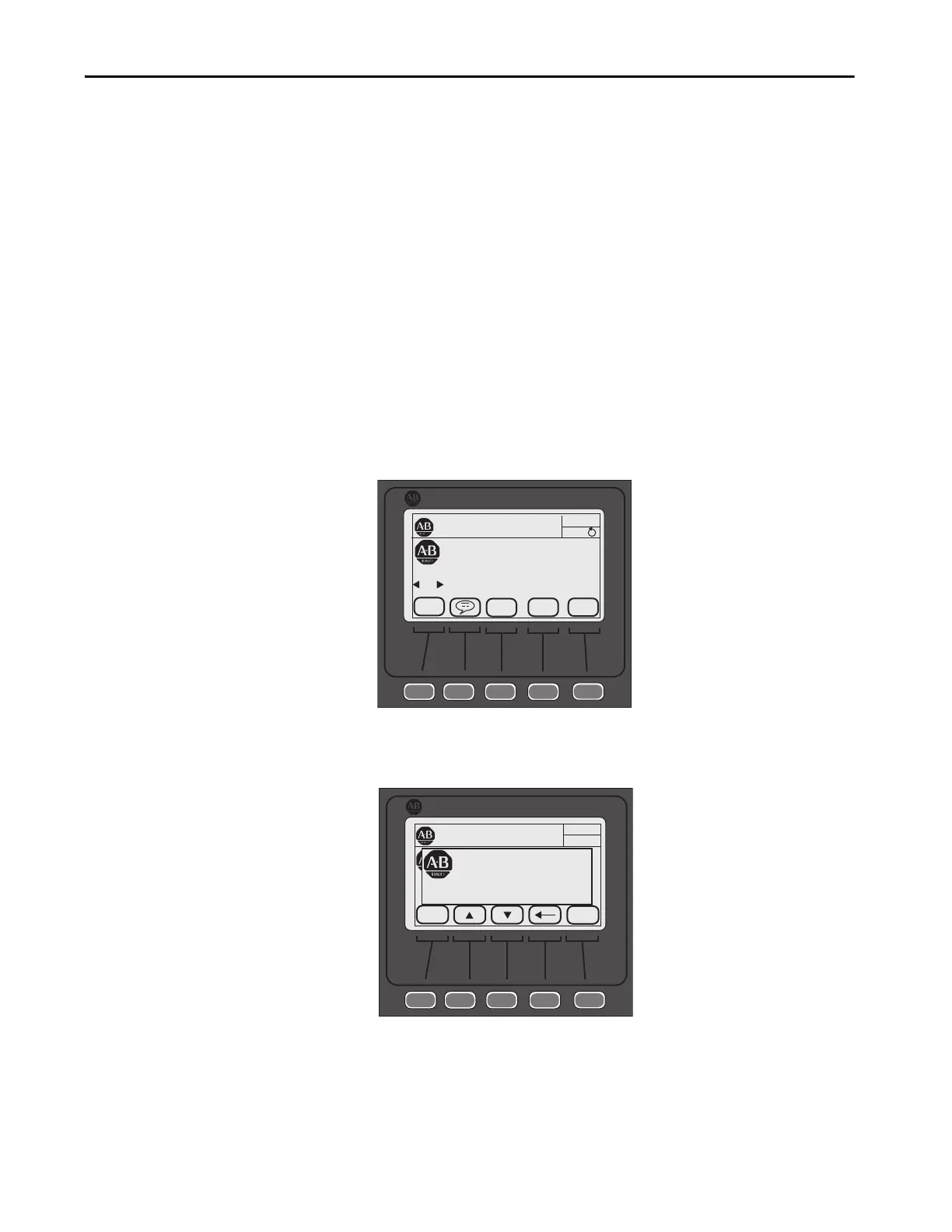

1. Ensure that the initial controller Power Up screen appears on the HIM.
2. Using the PAR# soft key, type the desired parameter number to display,
press the ENTER soft key, then press the EDIT soft key. The following
screen appears.
3. Press ENTER to load the changed value into memory.
TIP To access the next/previous PAR# from the one currently displayed, use the
UP/DOWN arrow soft keys to display the desired parameter for modification.
AUTO
F
00
Stopped
0 Amps
Allen-Bradley
ESC
SMC-50
Standard
Rev 1. 001 Ser. A
TEXT
PAR#
REF
PROPERTIES
AUTO
Stopped
0 Amps
Allen-Bradley
ESC
ENTER
00
SMC-50
Jump to Param #
1
