Allen-Bradley SMC-50 User Manual

Rockwell Automation Publication 1560F-UM001A-EN-P - June 2019 121
Chapter 5
Metering
Overview
While the SMC-50 operates a motor, it is also monitoring several different
parameters to provide a full-function metering package.
Viewing Metering Data
To access the metering information using the 20-HIM-A6, use the keypad to
follow the procedure below.

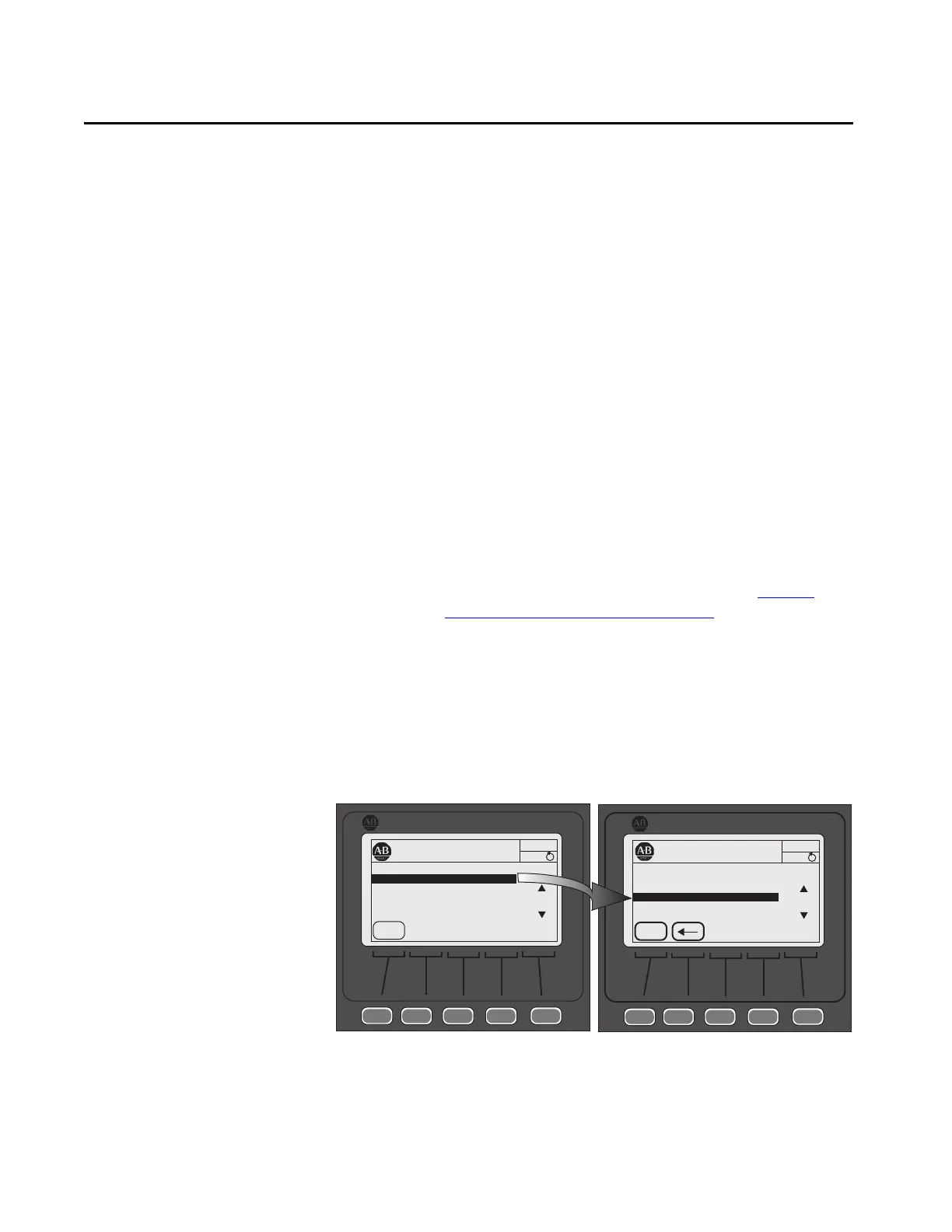

1. From the SMC-50 control module standard power-up screen, select
FOLDERS.
2. Use the right or left arrow until the Port 00 DEV PARAM screen is
displayed.
3. From the Port 00 DEV PARAM screen, select File-Group, then press the
ENTER key (number 5 on the keypad). The Port 00 Param File-Group
screen appears.
4. Use the up or down Arrow key to select File Monitoring. The Port 00
Param File-Group File Monitoring screen appears with seven GROUP
metering selections (Metering Basics, Metering Volts, Metering Current,
Metering Power, Start Stats. Monitoring, Power Quality).
5. Use the up or down arrow key to select the desired GROUP, then press the
ENTER key (number 5 on the keypad).
6. Select the desired parameter from the previous group selected, then press
the ENTER key to monitor the metering parameter.
TIP Ensure the Advanced Access Level is selected, located at the bottom of the
DEV PARAM screen. For additional configuration details, see Parameter
Access Level Modification Using the HIM on page 86.
PROPERTIES
AUTO
Stopped
0 Amps
Allen-Bradley
ESC
Port 00 Param File-Group
F
FILE Monitoring
FILE Set Up
FILE Motor Protection
FILE Communications
FILE Utility
PROPERTIES
AUTO
Stopped
0 Amps
Allen-Bradley
ESC
FILE Monitoring
Port 00 Param File-Group
Metering Power
Start Stats
Monitoring
Power Quality
GROUP
GROUP
GROUP
GROUP
F
