Programming Chapter 4
EEPROM
The SMC-50 control module provides a non-volatile area for storing user-
modified parameter values in the EEPROM.
Parameter Configuration
Using the START UP Configuration Tool (20-HIM-A6 or 20-HIM-C6S)
The general START UP configuration tool lets you rapidly configure an
controller. Enabled by the SMC-50 control module and the 20-HIM-A6 or 20-
HIM-C6S, a series of questions required to configure starting (for example, Soft,
Linear, Pump, etc.) and stopping (for example, Coast, Pump, etc.) modes are
displayed on the HIM via this tool.
Not all parameters are configured with this tool. You can configure any non-
configured startup parameters by using the parameter number or File—Group
search method. See Basic Configuration using the HIM
on page 112.
Accessing the General START UP Tool
1. Select the FOLDERS single-function key located on the lower left portion
of the keypad.
2. Use the left or right arrow key until the START UP folders screen is
displayed
.
3. Press the ENTER (#5) key to begin the configuration process. The HIM
displays "Run General Start-up?".

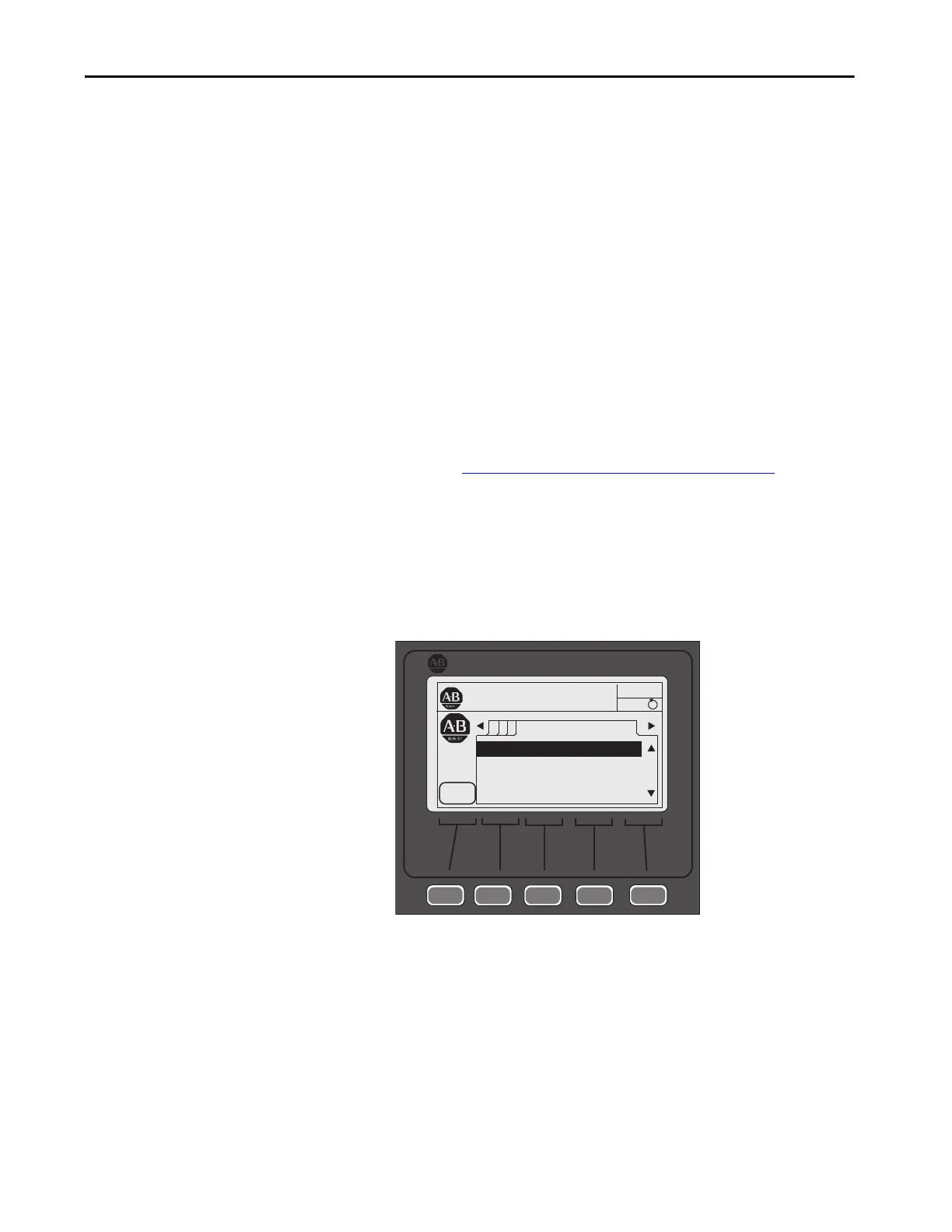

Begin Start Up
AUTO
F
00
Stopped
0 Amps
Allen-Bradley
ESC
START UP
