Chapter 1 Product Overview
Programming
Figure 19 shows how to connect a HIM and DPI device to the SMC-50 control
module. Table 3
provides a description of each port.
See the control wiring diagram that enables start-stop control from a HIM.

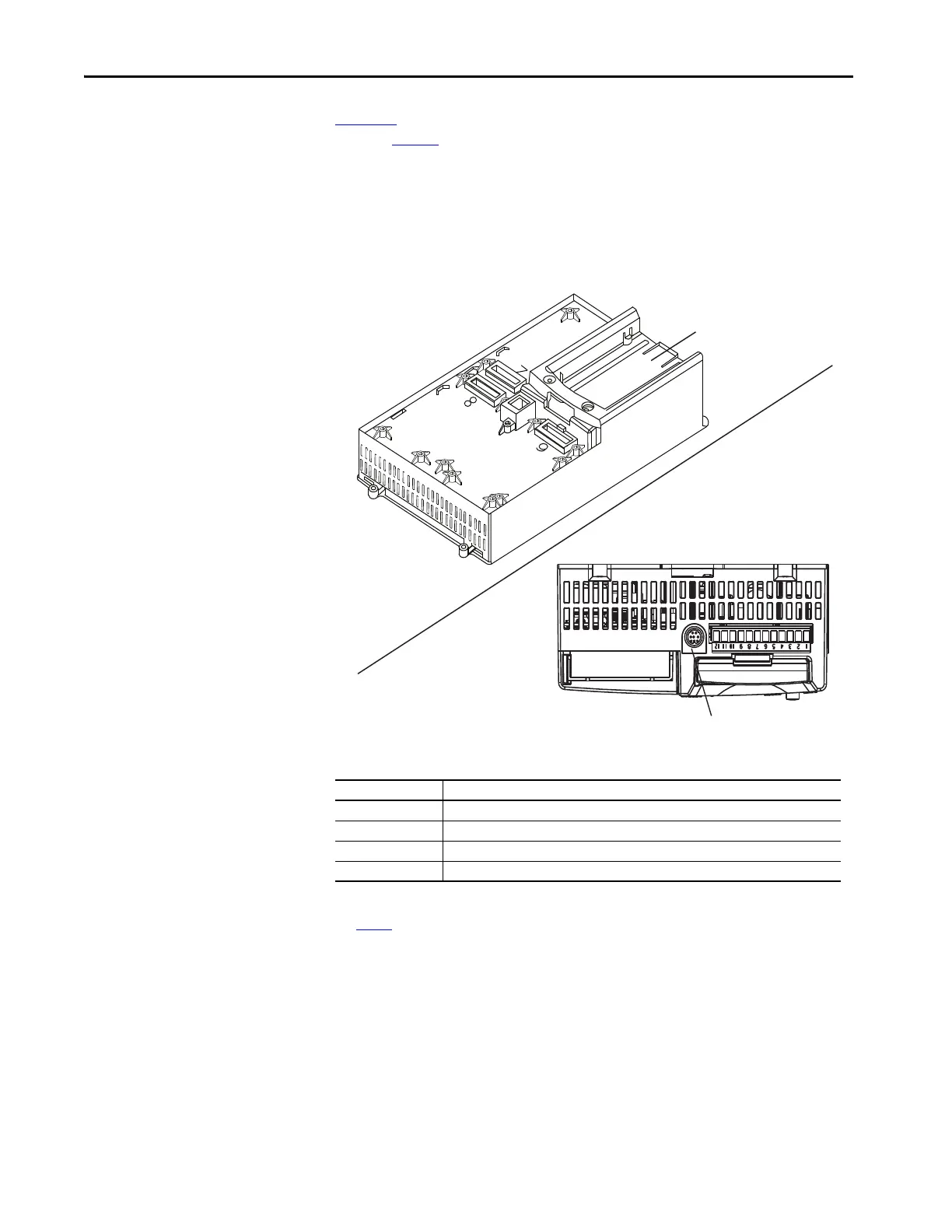

Figure 19 - SMC-50 Control Module with a HIM
Table 3 - Description of Ports
TIP The SMC-50 control module only supports the use of DPI communication
modules and DPI 20-HIM-A6 Modules.
DPI Port Number Source
1 Front-Mounted HIM (HIM Bezel)
2 Remote DPI (top of SMC-50 control module)
3 Remote DPI (top of SMC-50 control module with splitter)
4
(1)
(1) When using a 20-COMM-x network communication module, it must physically be located in control module hardware port 9.
However, its DPI Port Number assignment is 4. The cable connection for the DPI Port 4 is located below the HIM bezel (see
Figure 19
).
20-COMM-x Module
Front View
Top View
HIM Bezel Port
DPI Port 2
(Port 2 and 3 if you use a splitter)
