Allen-Bradley SMC-50 User Manual

114 Rockwell Automation Publication 1560F-UM001A-EN-P - June 2019
Chapter 4 Programming
150-SM4 Digital I/O Option Module
In addition to the two on-board 24V DC input and two auxiliary relay outputs of
the SMC-50 control module, the 150-SM4 Digital I/O Option Module has four
120...240V AC inputs and three auxiliary relay outputs. You can use these inputs
and outputs for control functions.
Configure 120...240V AC Inputs

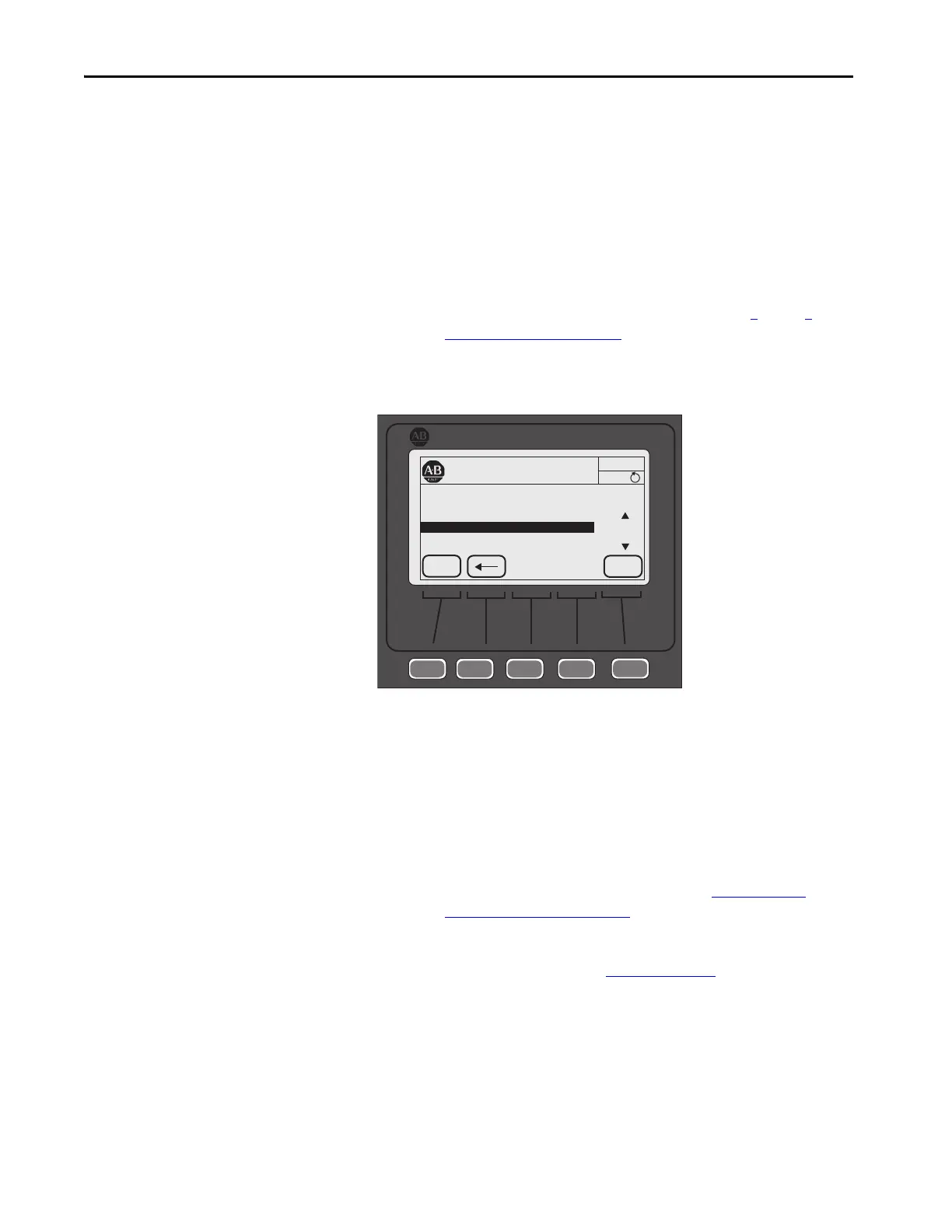

1. From the File-Group screen, press ENTER (number 5 on the keypad).
The four inputs are displayed.
2. Use the up or down arrow to select the input, then press ENTER (number
5 on the keypad). The display will show the current setting of the input.
3. Press the EDIT soft key to change the selected input function.
4. Use the up or down arrow to select the desired function (for example,
Start, Stop, Coast, etc.), then press the ENTER soft key to load the
selection. If necessary, use the back arrow to return to the previous
selection.
For additional information using the FILE GROUP function of the HIM, see
the 20-HIM-A6 user manual, publication 20HIM-UM001
.
TIP Before proceeding with the following steps, perform steps 1
through 4 in
Basic Configuration using the HIM
.
TIP For a complete list of 150-SM4 parameters, see the Digital I/O Option
Module Parameter List on page 115.
PROPERTIES
AUTO
Stopped
0 Amps
Allen-Bradley
ESC
FILE Inputs
Port 09 Param File-Group
Input1
Input2
Input3
Inputs
GROUP
ENTER
F
