Allen-Bradley SMC-50 User Manual

94 Rockwell Automation Publication 1560F-UM001A-EN-P - June 2019
Chapter 4 Programming
For additional details on these procedures, see the 20-HIM-A6 or 20-HIM-C6S
user manual, publication 20HIM-UM001
.
Parameter Search and Configuration by File-Group Structure
Parameter Structure
The parameters of the controller are structured into five parameter File-Groups:
1. Monitoring
2. Setup
3. Motor Protection
4. Communications
5. Utility
The parameters associated with each of these five File-Groups are shown in
Table 19
through Table 23 beginning on page 109 of this chapter.
Parameter Search and Configuration by File-Group (SMC-50 Control Module Category Search)

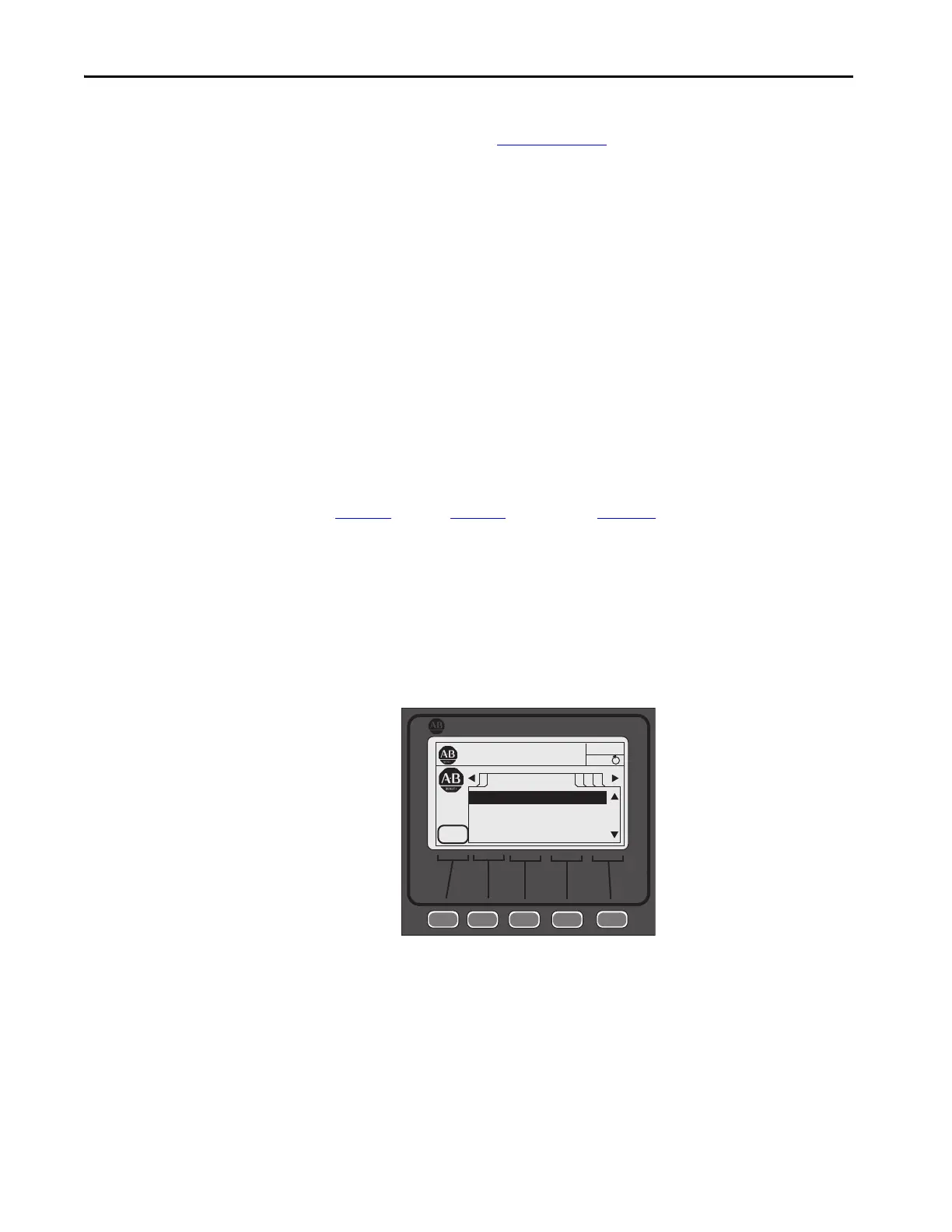

1. From the HIM Power-Up screen, press the FOLDERS single-function
key.
2. Press the LEFT or RIGHT arrow key until the screen displays DEV
PARAM. Ensure Port 00 SMC-50 control module is selected from the
PORTS screen.
3. Using the DOWN arrow key, scroll to the File-Group selection, then press
ENTER (#5 keypad). The screen displays Port 00 Param File-Group at the
top of the screen.
4. Using the DOWN arrow key, scroll to the Set Up selection, then press
ENTER. The screen displays the setup categories (for example, Basic,
Starting).
Linear List
File-Group
Changed Parameters
Param Access Level
AUTO
F
00
Stopped
0 Amps
Allen-Bradley
ESC
DEV PARAM
