Rockwell Automation Publication 1560F-UM001A-EN-P - June 2019 29
Product Overview Chapter 1

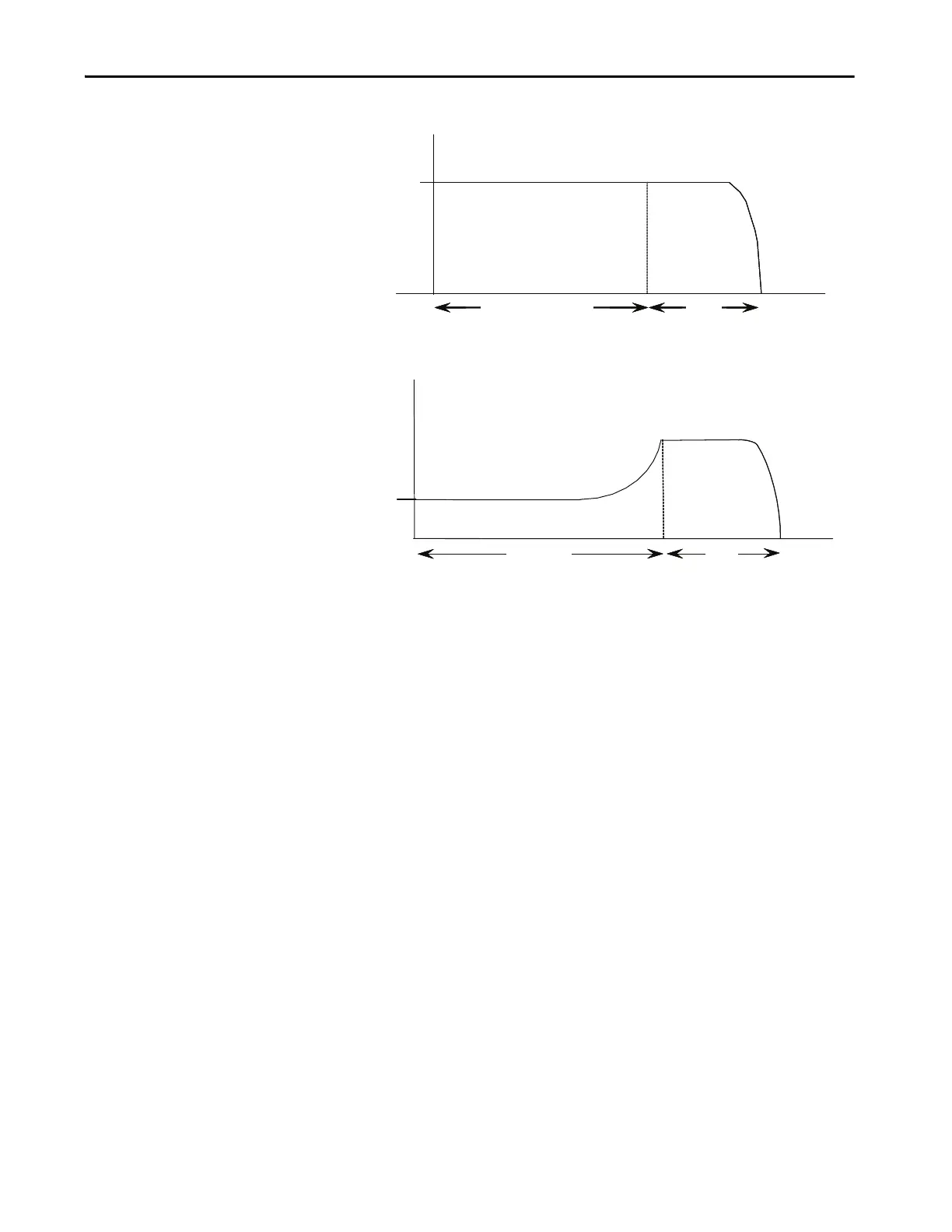

Figure 15 - Stall Protection
Figure 16 - Jam Detection
Ground Fault
In isolated or high impedance-grounded systems, core-balanced current sensors
are typically used to detect low level ground faults caused by insulation
breakdowns or entry of foreign objects. Detection of such ground faults can be
used to interrupt the system to prevent further damage, or to alert the
appropriate personnel to perform timely maintenance.
The SMC-50 module can provide ground fault indication when used with the
150-SM2 Option Module and an external core balance current transformer.
Percent
Full Load
Current
600%
Programmed Start Time
Stall
Time (seconds)
Percent
Full Load
Current
100%
Running
Jam
Time (seconds)
