ArcShield Plenum Installation Instructions Appendix E

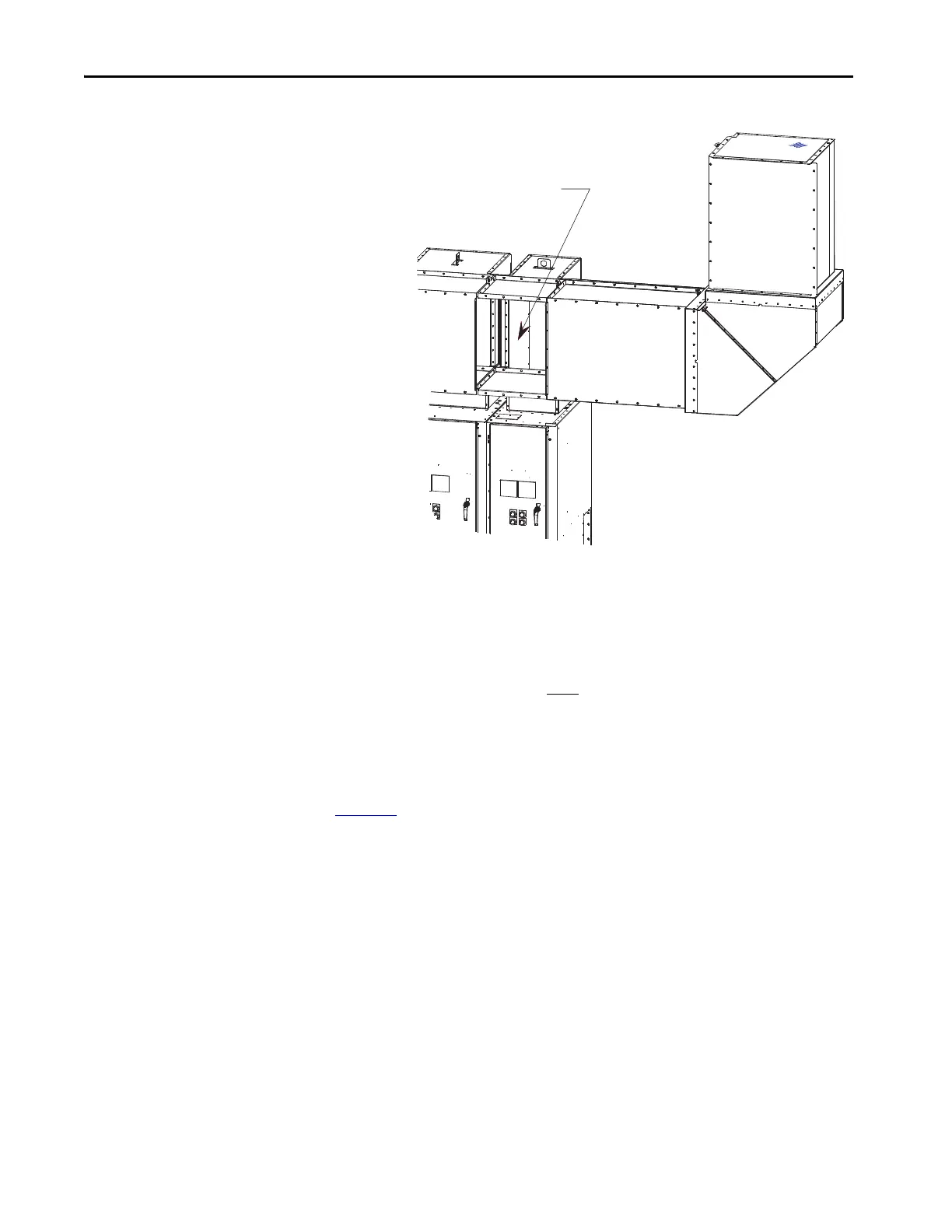

Figure 97 - Optional Extension/Elbow with Vertical Extension (Right side exit)
After the Extension/Elbow assembly is attached through the fastener holes on
the inside flange of the Plenum, the front duct section can be replaced and
fastened through the holes on the outside flanges.
STEP 7 – Additional
Mounting Support
The Extension/Elbow Assembly must have additional mounting support.
90° Elbow Section: Approximate weight 64 kg (142 lb)
36 in. Extension Assembly: Approximate weight 51 kg (112 lb)
Figure 98
shows an example of how the Extension/Elbow Sections can be
supported by suspension from a high ceiling. Points A, B, and C show where
chains or high tension cables may be connected.
Last Plenum in Line-up
remains open for installation
of Extension Assembly
