Chapter 4 Programming
4. Press the Yes soft key to begin the process or Abort soft key to return to the
START UP folders screen.
The HIM displays a series of questions about the Motor, Start, and Stop
processes.
Entering Data into General Startup
1. Display the parameter.
If the HIM provides the allowable range (for example, 1.0 << 2200.0) at
the bottom of the screen, enter the data value. If an up or down arrow soft
key is displayed, use the soft key to display the desired selection.
2. Enter the desired value, then press the ENTER soft key.
TIP Depending on the answers to the Start and Stop processes, some screens
may not be displayed.
EXAMPLE
If: Soft Start, Linear Speed, or Pump Start is selected:
Then: Starting Torque, Max Torque, Rated Torque, and Rated Speed will not
be displayed.
Reason: These parameters are specific to the Torque Start parameter group.
Allen-Bradley
Abort
SMC-50
Run General Start-Up?
-
-
-
Yes
Allen-Bradley
ESC
SMC-50
General Start-Up
Edit Ramp Time
Enter
0.0 < < 1000.0
Allen-Bradley
ESC
SMC-50
General Start-Up
Edit Stop Mode
Enter
Soft Stop 1
0 < < 5
Secs

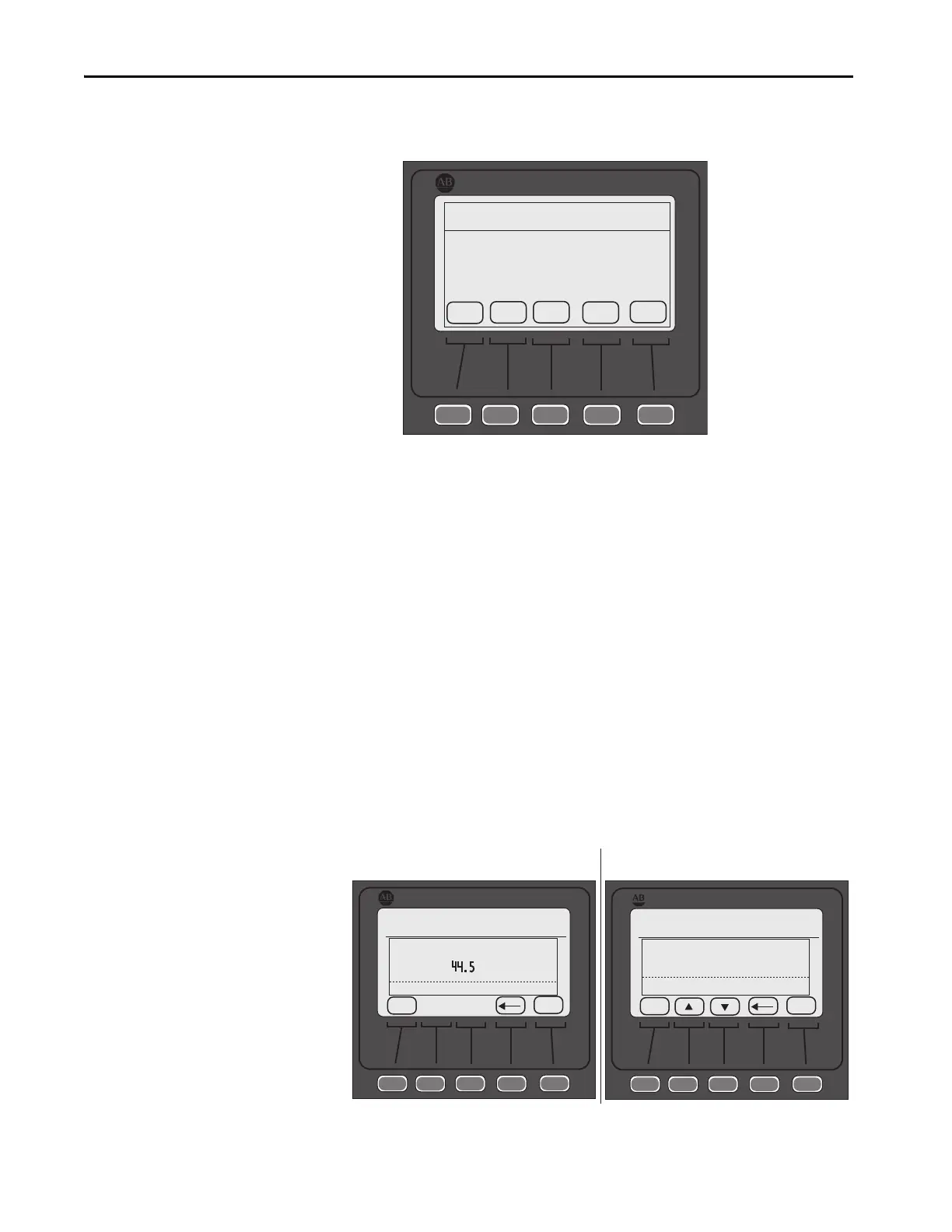

Enter the data value if you see this screen Use the up and down arrows or soft keys to display
your selection if you see this screen
