Allen-Bradley SMC-50 User Manual

Rockwell Automation Publication 1560F-UM001A-EN-P - June 2019 149
Diagnostics Chapter 8
The HIM displays the five most recent Fault codes if Faults was selected.
The HIM displays the 100 most recent Alarm codes with an abbreviated
description if Alarm codes were selected. The most recent code is listed as
01 with the second most recent code as 02, and so on.
4. Select the Fault or Alarm in question, then press ENTER. The date and
time that the Fault or Alarm occurred is displayed.
TIP The Fault/Alarm buffers are available using Connected Components
Workbench software via the Explore and Device properties drop-down
menu. Ensure 0-SMC-50 controller is selected from the list of Devices.
PROPERTIES
AUTO
Stopped
0 Amps
Allen-Bradley
ESC
CLR

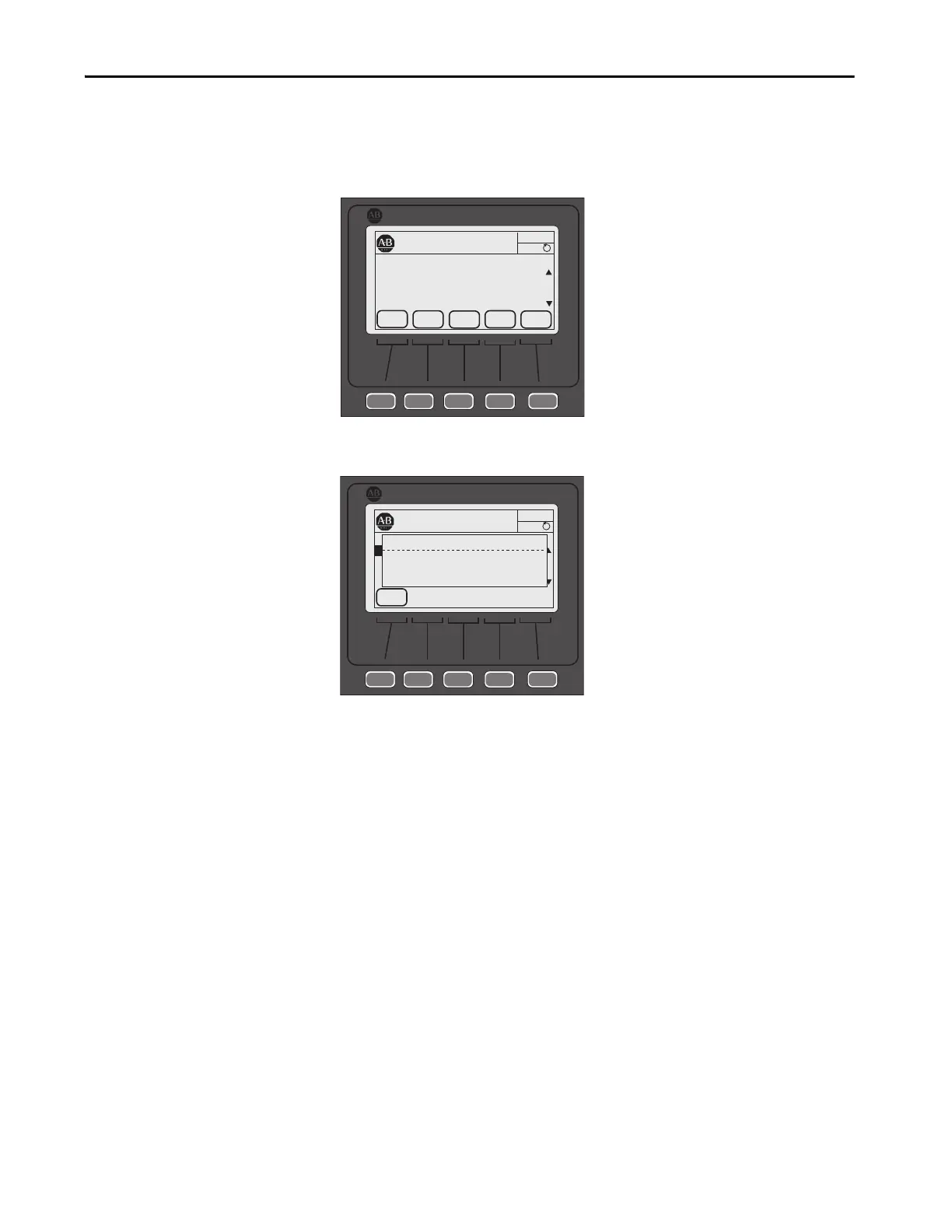

Port 00 Faults
01 61 IO Config
02 7028 Exp
03 9026 Exp Removed
04 0 None
ENTER
END
TOP
F
PROPERTIES
AUTO
Stopped
0 Amps
Allen-Bradley
ESC
F
Port 00 Faults
01 61 IO Config
02 7028 Exp
03 9026 Exp Removed
04 0 None
Fault 01 Time Stamp
2011/05/25 11 : 43 19
