Chapter 4 Programming

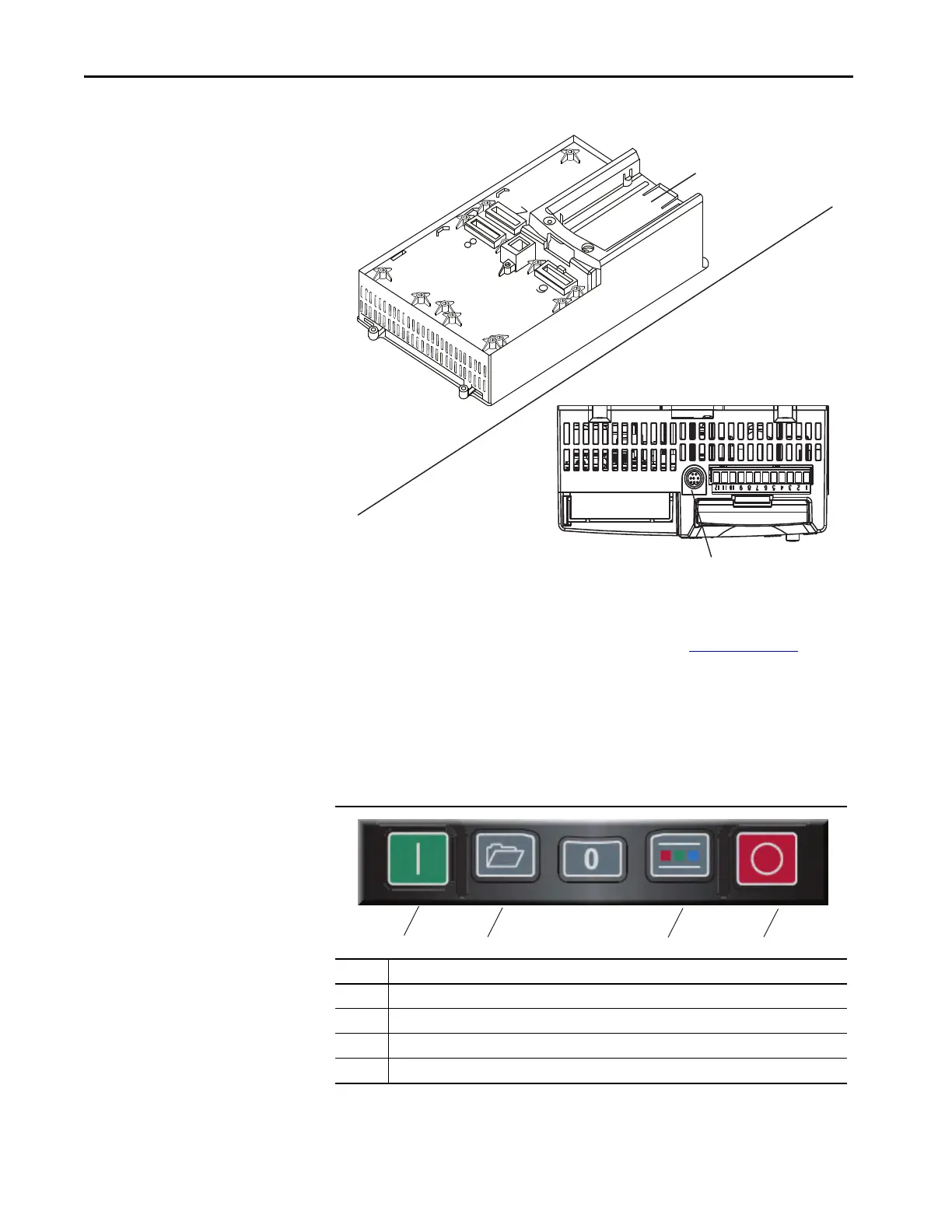

Figure 41 - HIM Mounting Locations
The following information describes some of the basic screens and keypad
functions of the 20-HIM-A6 or 20-HIM-C6S. Additional details about all HIM
functions can be found in the user manual, publication 20HIM-UM001
.
HIM Single-Function Keys
The four single-function keys only perform their dedicated functions no matter
which screen or data entry mode you are using.
Table 9 - HIM Single-Function Keys
Key Function
Start Starts the controller if the control module’s Logic Mask is enabled for the port the HIM is connected to.
(1)
(1) If the device (port) is enabled and removed under power or an expansion device is removed, a fault is generated. The bit location
(for example, 0, 1, 2, etc.) corresponds to the DPI port numbers.
Folders Accesses folders for parameters, diagnostics, memory functions, preferences, and other tests.
Controls Accesses jog, direction, auto/manual, and other control functions.
Stop Stops the controller or clears a fault. The Stop key is always active. Coast Stop only.
Front View
Top View
HIM Bezel Port
DPI Port 2
(Port 2 and 3 if you use a splitter)
