Click Apply to set the bandwidth control for the selected ports. Results of configured Bandwidth Settings will be displayed in the Port Bandwidth
Table
.
QoS Scheduling Mechanism
This drop-down menu allows you to select between a Weight Fair and a Strict mechanism for emptying the classes of service. In the Configuration folder
open the
QoS folder and click QoS Scheduling Mechanism, to view the screen shown below.

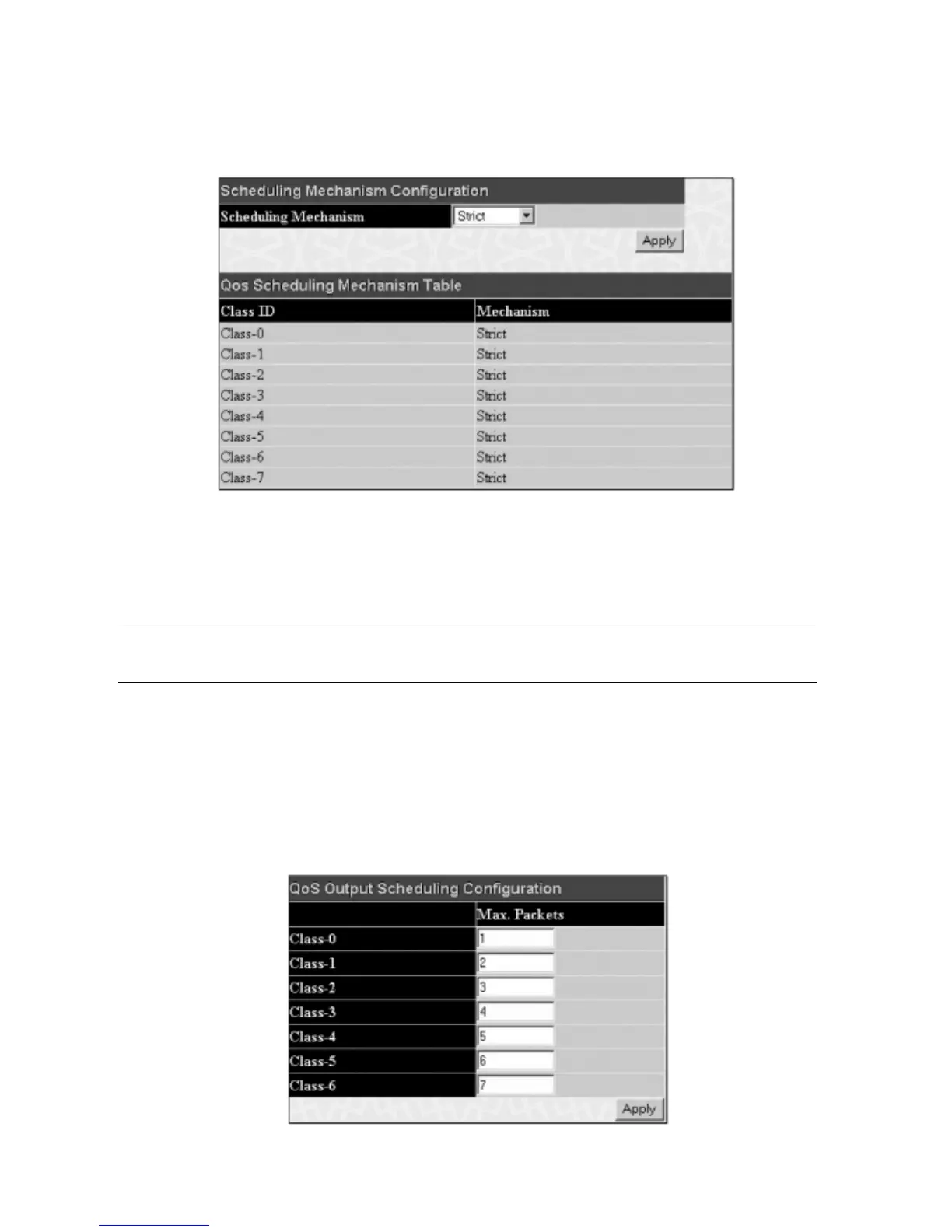

Figure 6- 49. Scheduling Mechanism Configuration and QoS Scheduling Mechanism Table
The
Scheduling Mechanism has the following parameters.
Parameter Description
Strict
The highest queue is the first to process traffic.That is, the highest queue will finish before other queues empty.
Weight fair Use the weighted round-robin (WRR) algorithm to handle packets in an even distribution in priority queues.
Click
Apply to let your changes take effect.
Output Scheduling
QoS can be customized b
y changing the output scheduling used f
or the classes of ser
vice in the Switch.
As with any changes to QoS implementation, careful
consideration should be given to how network traffic in lower classes of service is affected. Changes in scheduling may result in unacceptable levels of packet loss
or significant transmission delay. If you choose to customize this setting, it is important to monitor network performance, especially during peak demand, as
bottlenecks can quickly develop if the QoS settings are not suitable. In the
Configuration folder open the QoS folder and click QoS Output Scheduling,
to view the screen shown below.
Figur
e 6- 50.
QoS Output Scheduling Configuration windo
w
68
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
