Allied Telesis AT-9724TS User Manual

To display the detailed entry for a given user, click on the hyperlinked User Name.This will open the SNMP User Table Display page, as shown below.

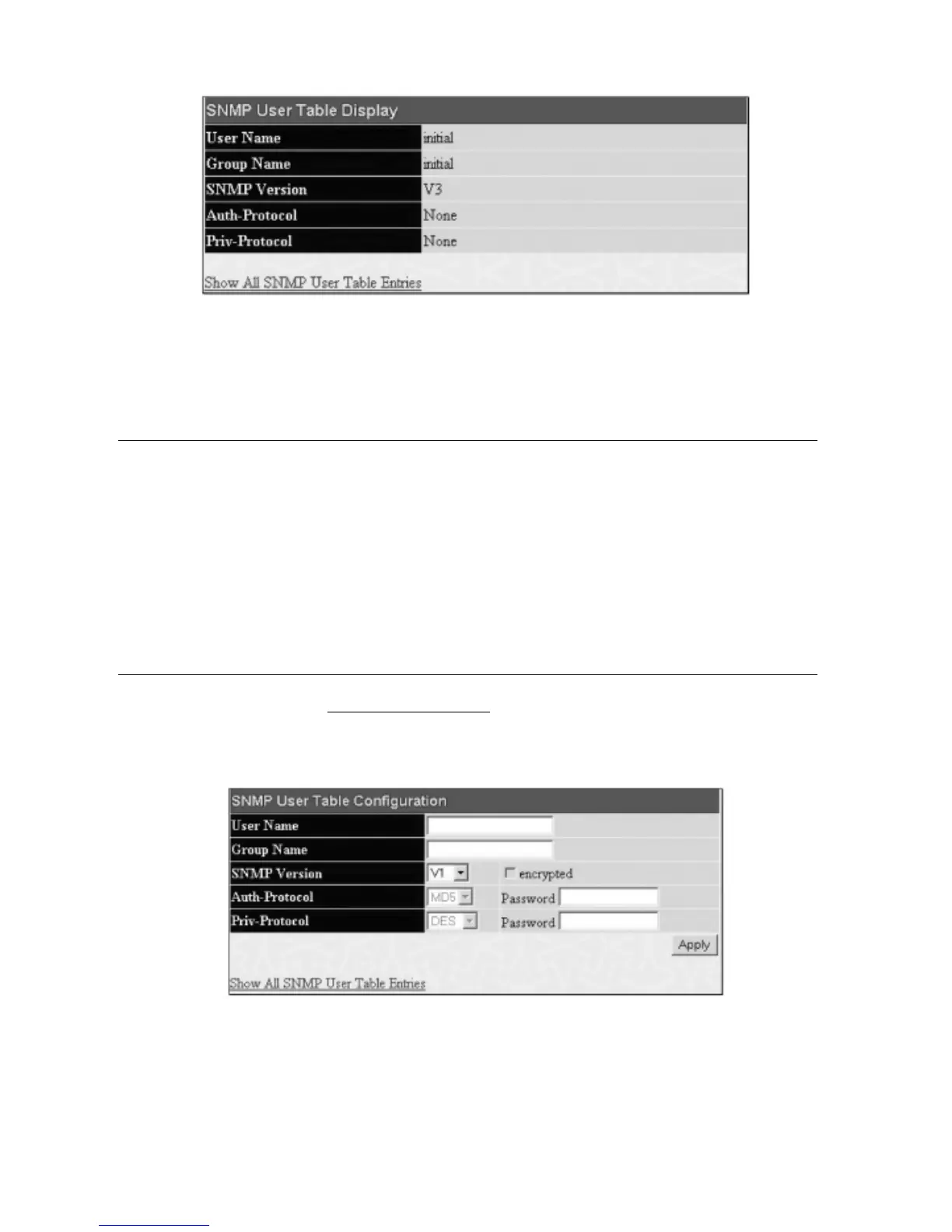

Figure 8- 2. SNMP User Table Display window
The following parameters are displayed:
Parameter Description
User Name
An alphanumeric string of up to 32 characters.This is used to identify the SNMP users.
Group Name This name is used to specify the SNMP group created can request SNMP messages.
SNMP V
ersion
V1 – Indicates that SNMP v
ersion 1 is in use.
V2 – Indicates that SNMP version 2 is in use.
V3 – Indicates that SNMP version 3 is in use.
Auth-Protocol None – Indicates that no authorization protocol is in use.
MD5 – Indicates that the HMAC-MD5-96 authentication level will be used.
SHA – Indicates that the HMAC-SHA authentication protocol will be used.
Priv-Protocol None – Indicates that no authorization protocol is in use.
DES – Indicates that DES 56-bit encryption is in use based on the CBC-DES (DES-56) standard.
To return to the
SNMP User Table, click the Sho
w All SNMP User Table Entries link.
To add a new entry to the
SNMP User Table Configuration, click on the Add button on the SNMP User Table page.
This will open the SNMP User Table Configuration page, as shown below.
Figur
e 8- 3.
SNMP User
T
able Configuration windo
w
The following parameters can be set:
150
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
