The following fields can be viewed or set:
Parameter Description
VLAN Name
Enter a VLAN Name for the forwarding table to be browsed by.
MAC Address Enter a MAC address for the forwarding table to be browsed by.
Unit – Port Select the switch Unit ID of the switch in the Switch stack and then the port by using the corresponding pull-
down menus.
Find Allows the user to move to a sector of the database corresponding to a user defined port,VLAN, or MAC
address.
VID The VLAN ID of the VLAN the port is a member of.
MAC Address The MAC address entered into the address table.
Unit Refers to the Unit of the switch stack that the MAC address was learned from.
Port The port that the MAC address above corresponds to.
Type How the Switch discovered the MAC address.The possible entries are Dynamic, Self, and Static.
Next Click this button to view the next page of the address table.
Clear Dynamic Entry Clicking this button will clear Dynamic entries learned by the Switch.This may be accomplished by VLAN Name
or by Port.
View All Entry Clicking this button will allow the user to view all entries of the address table.
Clear All Entry Clicking this button will allow the user to delete all entries of the address table.
9-7 Switch History Log
The Web manager allows the Switch's history log, as compiled by the Switch's management agent, to be viewed.To view the Switch history log, open the
Monitoring folder and click the Switch History Log link.

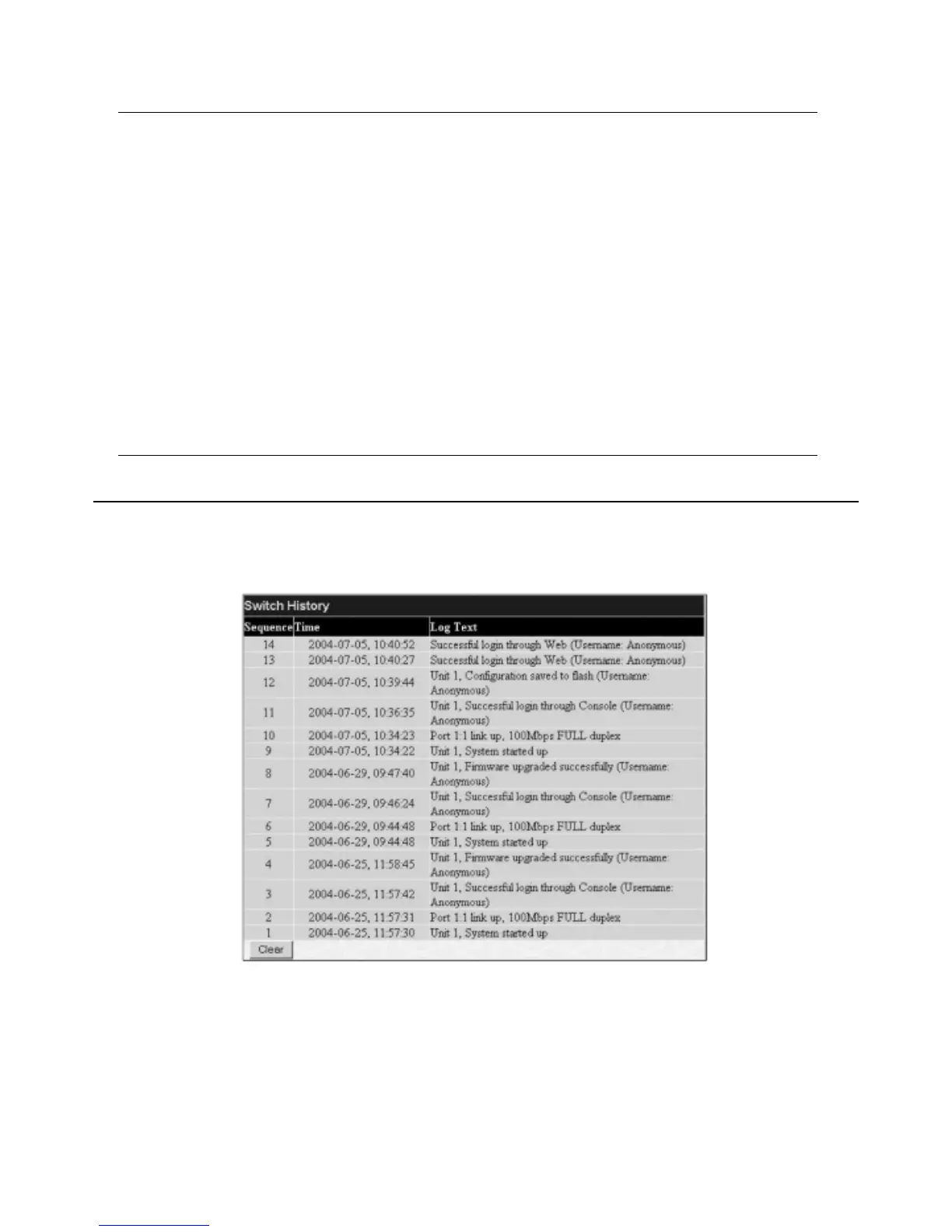

Figure 9- 18. Switch History window
The Switch can record event inf
ormation in its o
wn logs,
to designated SNMP tra
p r
eceiving stations, and to the PC connected to the console manager. Click
Next to go to the next page of the
Switch History Log. Clicking Clear will allow the user to clear the Switch History Log.
The information is described as follows:
169
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
