Allied Telesis AT-9724TS User Manual

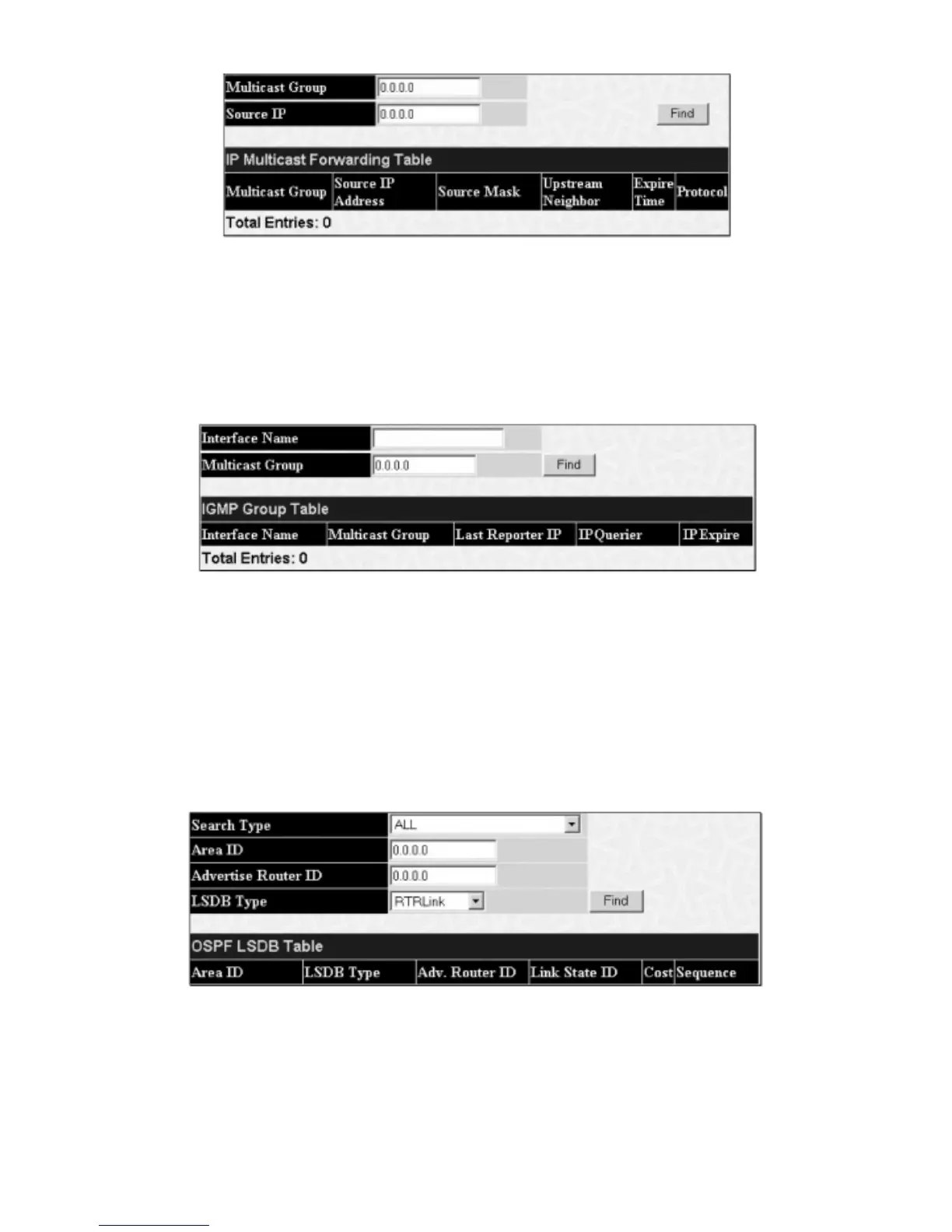

Figure 9- 32. Browse IP Multicast Forwarding Table
Browse IGMP Group Table
The Browse IGMP Group Table window may be found in the Monitoring menu in the Layer 3 Feature folder.This window will show current IGMP
gr
oup entries on the Switch.To search a specific IGMP group entry, enter an interface name into the
Interf
ace Name
field or a Multicast Gr
oup
IP
address and click
Find.
Figure 9- 33. Browse IGMP Group Table
OSPF Monitoring
This section offers windows regarding OSPF (Open Shortest Path First) information on the Switch, including the OSPF LSDB Table, OSPF Neighbor
Table
and the OSPF Virtual Neighbor Table.To view these tables, open the Monitoring folder and click OSPF Monitoring.
Br
o
wse OSPF LSDB Table
This table can be found in the OSPF Monitoring folder by clicking on the Browse OSPF LSDB Table link.The OSPF Link-State Database Table
displays the current link-state database in use by the OSPF routing protocol on a per-OSPF area basis.
Figure 9- 34. Browse OSPF LSDB Table
The user may search for a specific entry by entering the following information into the fields at the top of the screen:
To browse the
OSPF LSDB Table, you first must select which browse method you want to use in the Search Type field.The choices are All, Area ID,
Advertise Router ID, LSDB,Ar
ea ID &
Adver
tise Router ID
, Ar
ea ID & LSDB
,
and
Adver
tise Router ID & LSDB
.
If
Area ID is selected as the br
o
wse method,
y
ou m
ust enter the IP ad
dr
ess in the
Ar
ea ID
field,
and then click
Find.
If
Adv. Router ID is selected, you must enter the IP address in the Advertisement Router ID field, and then click Find.
If
LSDB is selected, you must select the type of link state (RtrLink, NetLink, Summar
y
, ASSummar
y
and ASExtLink) in the L
SDB T
ype
field,
and then click
Find.
180
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
