Allied Telesis AT-9724TS User Manual

97
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch
The following parameters may be set or viewed:
Parameter Description
Dest Protocol
Allows for the selection of the protocol for the destination device. Choose between RIP and OSPF.
Src Protocol Allows for the selection of the protocol for the source device. Choose between RIP, OSPF, Static and Local.
Type Allows for the selection of one of six methods of calculating the metric value.The user may choose between
All, Internal, External, ExtType1, ExtType2, Inter-E1, Inter-E2. See the table above for available metric value types for
each source protocol.
Metric Allows the entry of an OSPF interface cost.This is analogous to a Hop Count in the RIP routing protocol.
Click Add/Modify to implement changes made.
Note: The source protocol (Src Protocol) entry and the destination protocol (Dest Protocol) entry cannot be the same.
Static/Default Route
Entries into the Switch’s forwarding table can be made using both MAC addresses and IP addresses. Static IP forwarding is accomplished by the entry of an IP
address into the
Switch’s Static IP Routing Table.

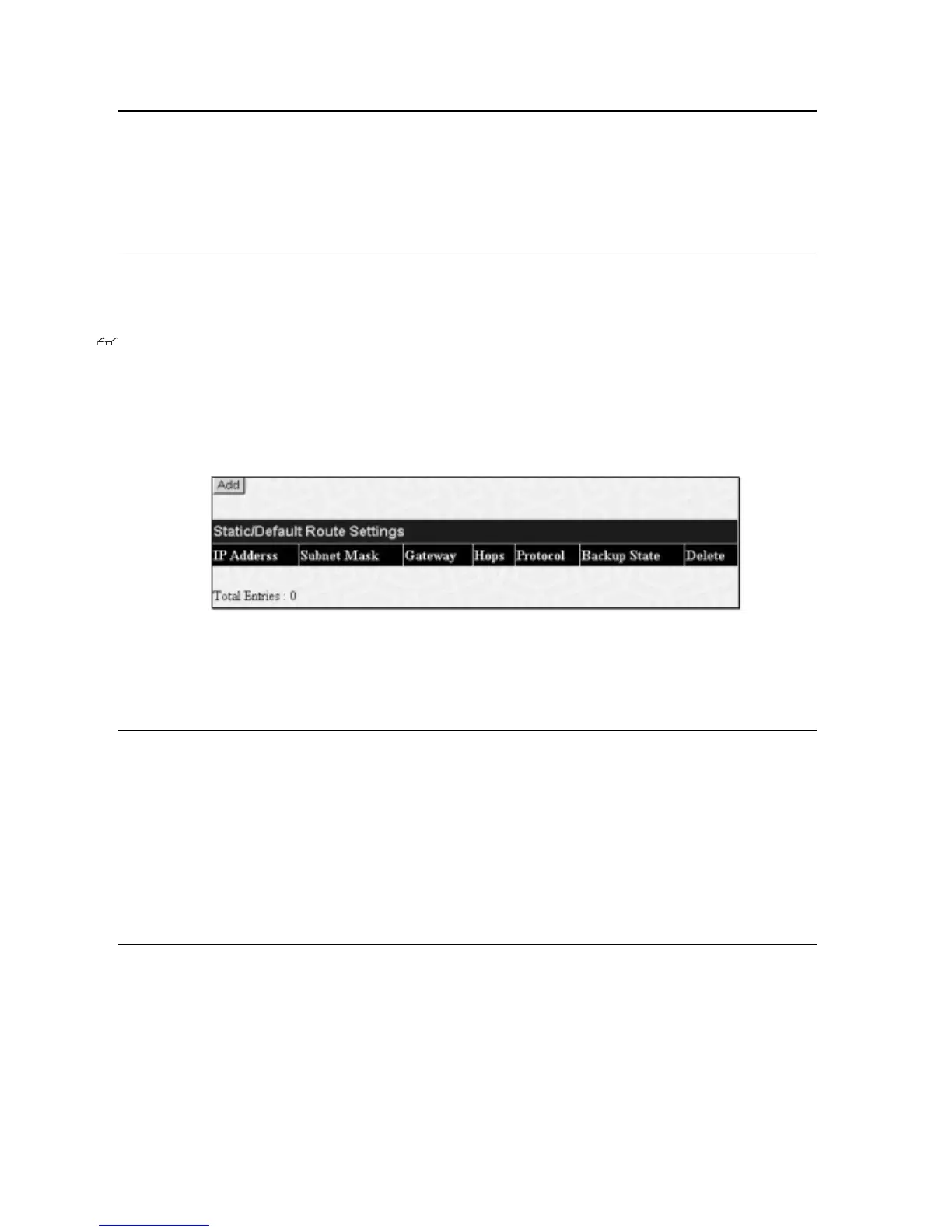

Figure 6- 90. Static/Default Route Settings window
This window shows the following values:
P
a
r
a
meter Description
IP Address
The IP address of the Static/Default Route.
Subnet Mask The cor
r
esponding Subnet Mask of the IP ad
dr
ess entered into the table.
Gateway The corresponding Gateway of the IP address entered into the table.
Hops Repr
esents the metric value of the IP interface enter
ed into the table.This field may read a number between 1-
65535 for an OSPF setting, and 1-16 for a RIP setting.
Protocol Represents the protocol used for the Routing Table entry of the IP interface.This field may read OSPF, RIP,
Static or Local.
Back
up State
Repr
esents the Backup state that this IP interface is configur
ed f
or
.
This field may read Primary or Backup.
Delete Click the 8 if you would like to delete this entry from the Static/Default Route Settings table.
To enter an IP Interface into the Switch’s
Static/Default Routes window, click the Add button, revealing the following window to configure.

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
