Allied Telesis AT-9724TS User Manual

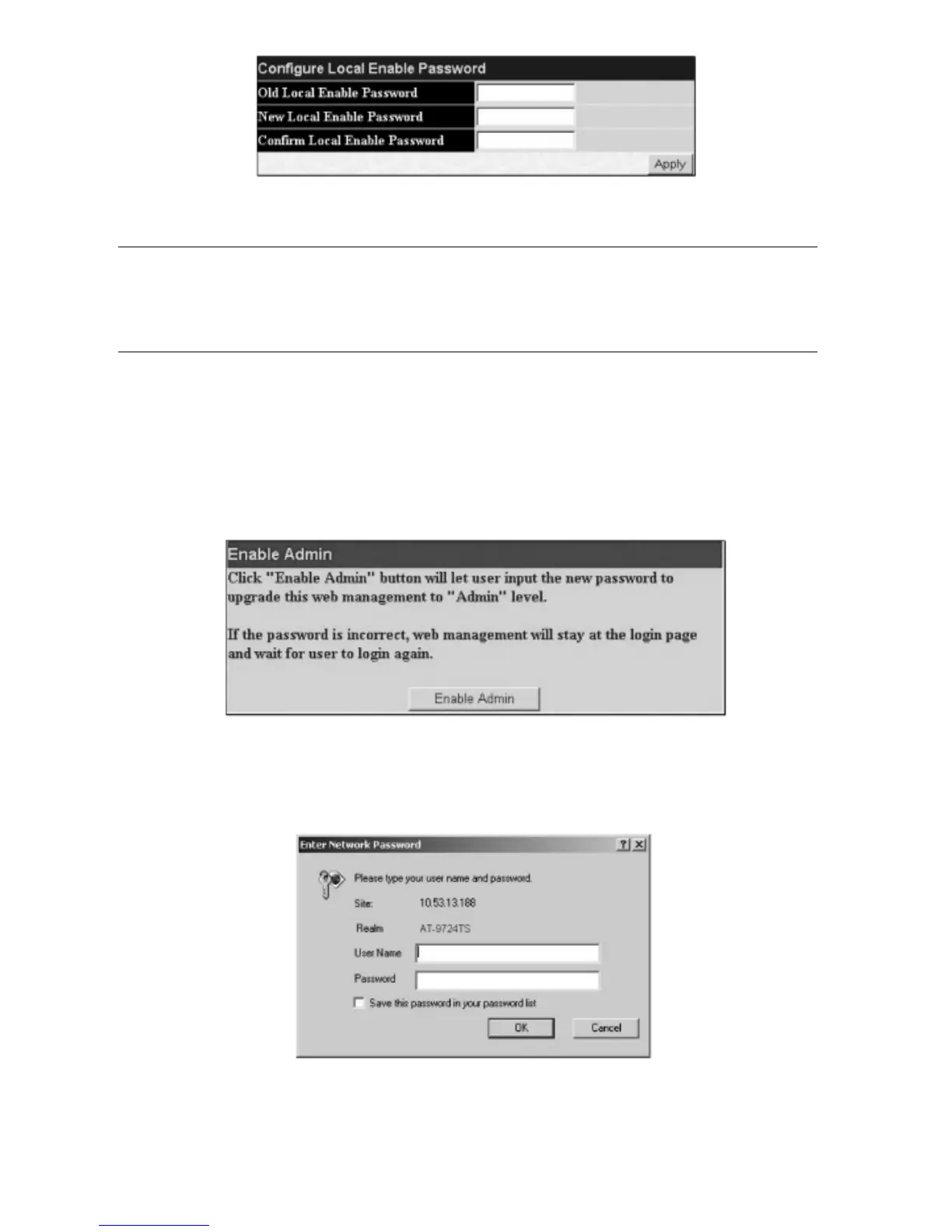

Figure 7- 18. Configure Local Enable Password window
To set the Local Enable Password, set the following parameters and click
Apply.
Parameter Description
Old Local Enable Password If a password was previously configured for this entry, enter it here in order to change it to a new password.
New Local Enable Password Enter the new password that you wish to set on the Switch to authenticate users attempting to access
Administrator Level privileges on the Switch.The user may set a password of up to 15 characters.
Confirm Local Enable Password Confirm the new password entered above. Entering a different password here from the one set in the New
Local Enabled field will result in a fail message.
Enable Admin
The Enable Admin window is for users who have logged on to the Switch on the normal user level, and wish to be promoted to the administrator level.After
logging on to the Switch, users will have only user level privileges.To gain access to administrator level privileges, the user will open this window and will have to
enter an authentication password. Possible authentication methods for this function include TACACS/XTACACS/TACACS+/RADIUS, user defined server groups,
local enable (local account on the Switch), or no authentication (none). Because XTACACS and TACACS do not support the enable function, the user must
create a special account on the server host, which has the username "enable", and a password configured by the administrator that will support the "enable"
function.This function becomes inoperable when the authentication policy is disabled.
To view the following window, click
Security Management > Access Authentication Control > Enable Admin:
Figure 7- 19. Enable Admin Screen
When this scr
een a
ppears,
click the
Ena
b
le Admin
button r
e
v
ealing a window for the user to enter authentication (password, username), as seen below.
A successful entry will promote the user to Administrator level privileges on the Switch.
Figure 7- 20. Enter Network Password window
142
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
