Allied Telesis AT-9724TS User Manual

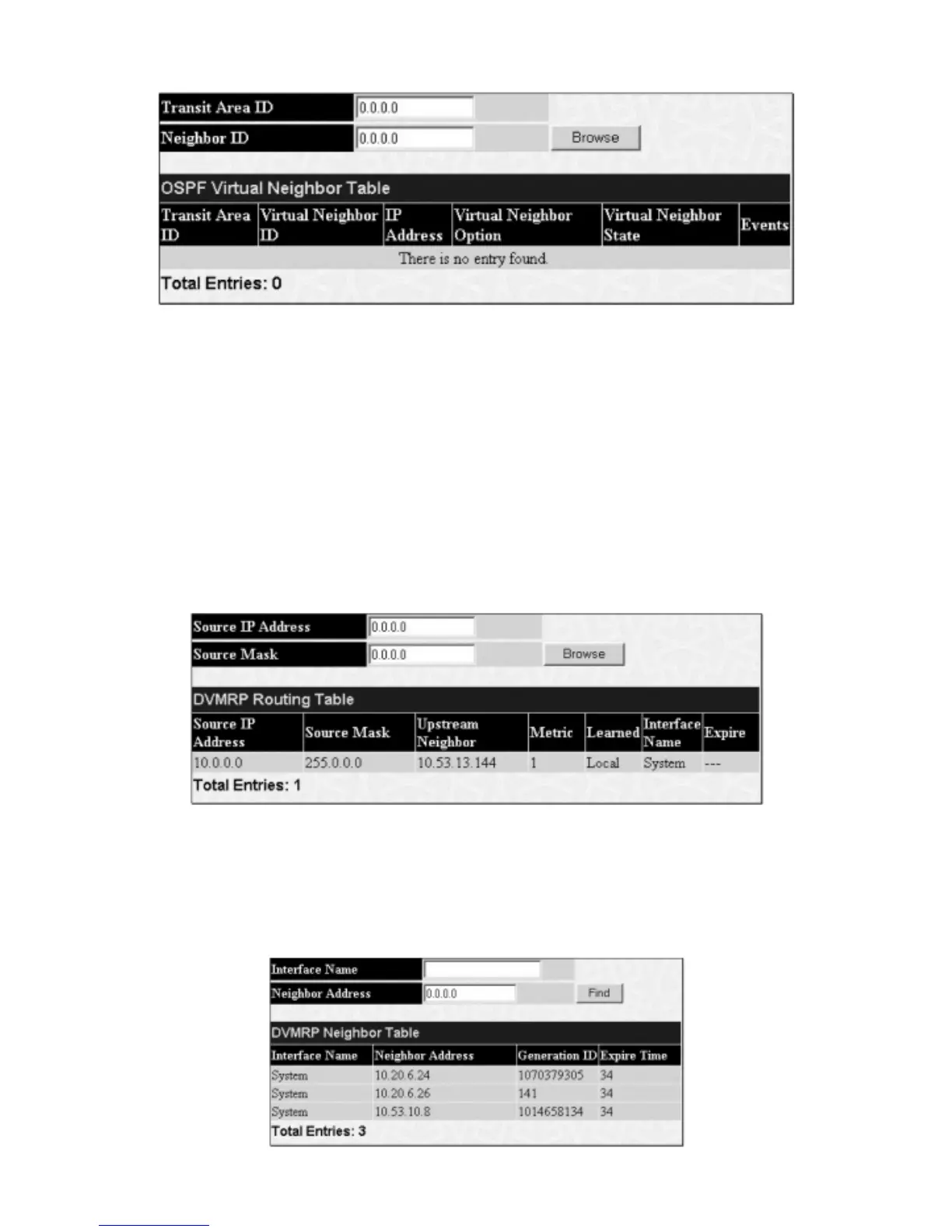

Figure 9- 36 .OSPF Virtual Neighbor Table
DVMRP Monitoring
This menu allows the DVMRP (Distance-Vector Multicast Routing Protocol) to be monitored for each IP interface defined on the Switch.This folder, found in
the
Monitoring folder, offers 3 screens for monitoring; Browse DVMRP Routing Table, Browse DVMRP Neighbor Address Table and Browse
DVMRP Routing Next Hop Table
. Information on DVMRP and its features in relation to the AT-9724TS can be found in Chapter 6, under IP Multicast
Routing Protoco
l.
Browse DVMRP Routing Table
Multicast routing information is gathered and stored by DVMRP in the DVMRP Routing Table, which may be found in the Monitoring folder under
Browse DVMRP Monitoring, contains one row for each port in a DVMRP mode. Each routing entry contains information about the source and multicast
group, and incoming and outgoing interfaces.You may define your search by entering a
Source IP Address and its subnet mask into the fields at the top of the
page.
Figure 9- 37 . DVMRP Routing Table
Browse DVMRP Neighbor Address Table
This table
, found in the
Monitor
ing
men
u under
D
VMRP Monitor > Browse DVMRP Neighbor Address Table
contains inf
ormation about
DVMRP neighbors of the Switch.To search this table, enter either an
Interface Name or Neighbor Address into the respective field and click the Find
button.
D
VMRP neighbors of that entr
y will a
ppear in the
D
VMRP Neighbor T
a
b
le
belo
w
.
Figure 9- 38. DVMRP Neighbor Table
182
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
