Allied Telesis AT-9724TS User Manual

10-5 Save Changes
The AT-9724TS has two levels of memory; normal RAM and non-volatile or NV-RAM. Configuration changes are made effective clicking the Apply button.When
this is done, the settings will be immediately applied to the switching software in RAM, and will immediately take effect.
Some settings, though, require you to restart the Switch before they will take effect. Restarting the Switch erases all settings in RAM and reloads the stored
settings from the NV-RAM.Thus, it is necessary to save all setting changes to NV-RAM before rebooting the switch.
To retain any configuration changes permanently, click on the
Save button in the Save Changes page, as shown below.

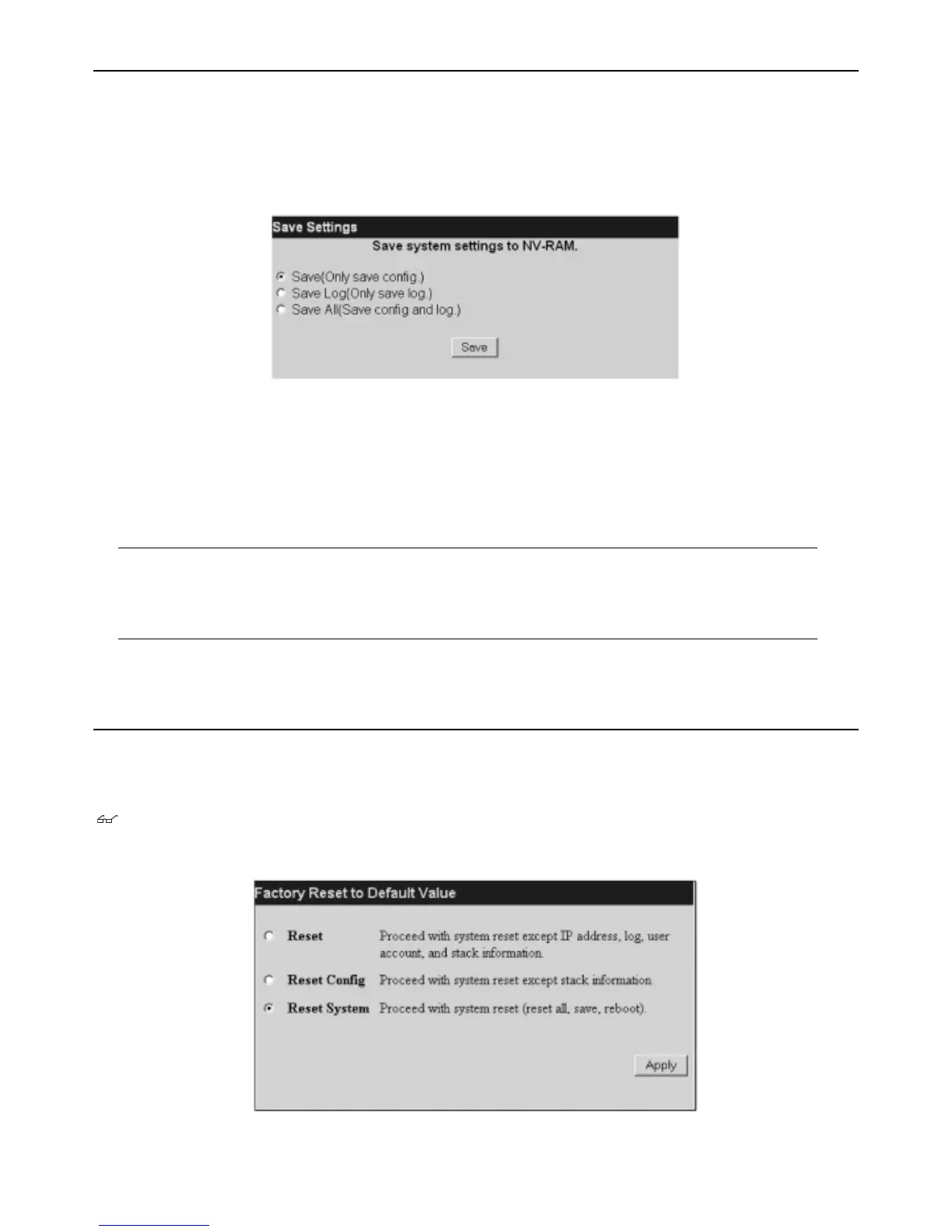

Figure 10- 8. Save Changes Screen
The Switch has three levels of save, which are as follows:
Parameter Description
Save (Only save config)
Clicking the radio button for this entry will save only the current switch configuration to NV-RAM.
Save Log (Only save log) Clicking the radio button for this entry will save only the current current log file to NV- RAM.
Save All (Save config and log) Clicking the radio button for this entry will save both the current switch configuration and the current log file
to NV-RAM.
These settings will be used every time the Switch is rebooted. See the
Reset section for more information on changing configurations saved to NV-RAM.
10-6 Reset
The R
eset
function has se
veral options when resetting the Switch. Some of the current configuration parameters can be retained while resetting all other
configuration parameters to their factory defaults.
Note:
Only the
R
eset System
option will enter the factor
y default parameters into the Switch’s non-volatile RAM, and then restart the Switch.
All other options enter the factory defaults into the current configuration, but do not save this configuration.
Reset System will return the Switch’s
configuration to the state it was when it left the factory.
Figur
e 10- 9. Factory Reset to Default Value window
188
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
