Initializing Ports for MAC Based 802.1x
To initialize ports for the MAC side of 802.1x, the user must first enable 802.1x by MAC address in the Advanced Settings window. Click Port Access
Entity > PAE System Control > Initialize Port(s)
to open the following window:

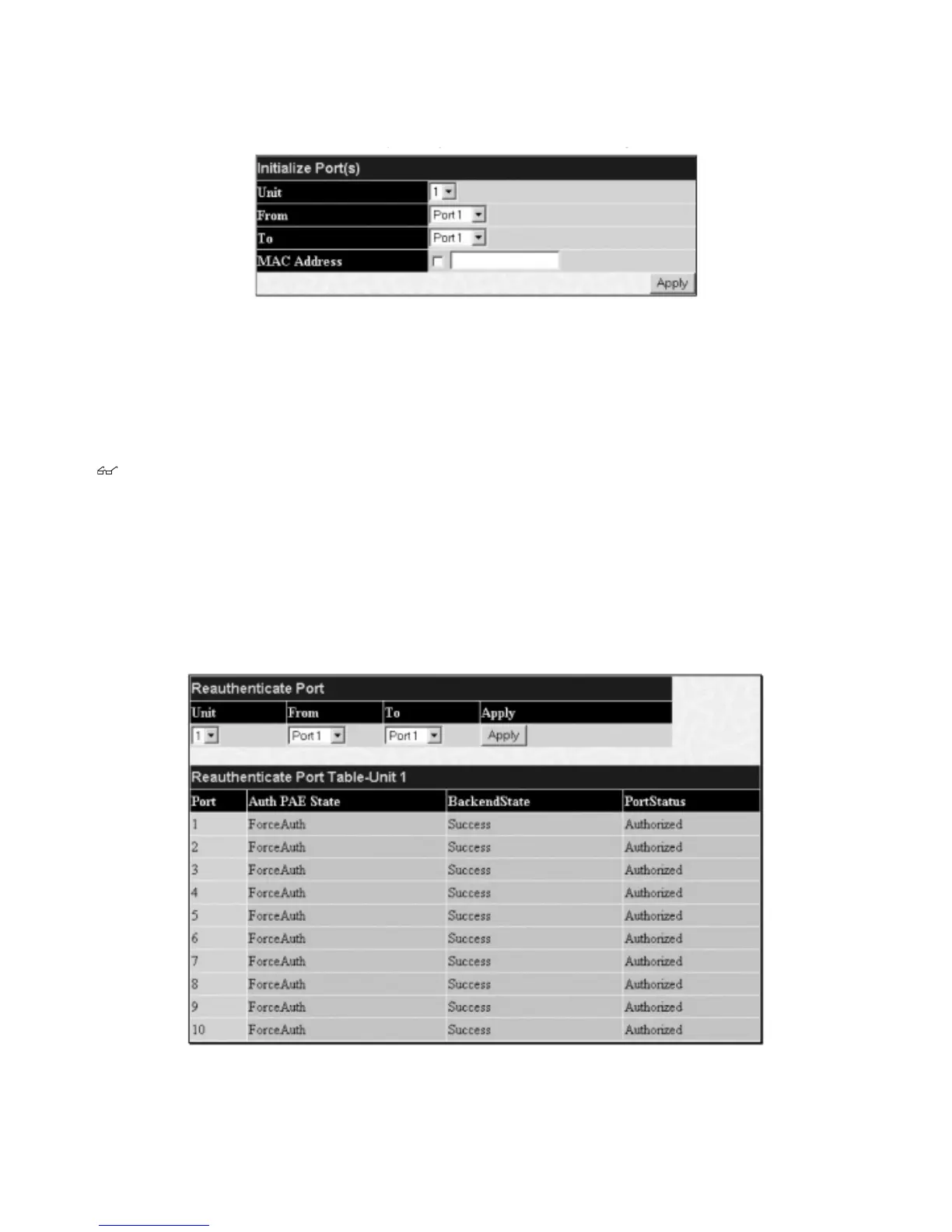

Figure 6- 80. Initialize Ports window (MAC based 802.1x)
To initialize ports, first choose the switch in the switch stack by using the
Unit pull-down menu, then the range of ports in the From and To field.Then the
user must specify the MAC address to be initialized by entering it into the
MAC Address field and checking the corresponding check box.To begin the
initialization, click
Apply.
Note: The user must first globally enable 802.1X in the Advanced Settings window in the Configuration folder before initializing ports.
Information in the
Initialize Ports Table cannot be viewed before enabling 802.1X.
Reauthenticate Port(s) for Port Based 802.1x
This window allows you to reauthenticate a port or group of ports by choosing a port or group of ports by using the pull down menus From and To and
clicking
Apply.The Reauthenticate Port Table displays the current status of the reauthenticated port(s) once you have clicked Apply.
Click
Port Access Entity > PAE System Control > Reauthenticate Port(s) to open the Reauthenticate Port(s) window:
Figur
e 6- 81.
Reauthenticate Port and Reauthenticate Port Table window
90
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch
