The user may search the IGMP Snooping Forwarding Table by VLAN Name using the top left hand corner Search.
The following fields can be viewed:
Parameter Description
VLAN Name
The VLAN Name of the multicast group.
Source IP The Source IP address of the multicast group.
Multicast Group The IP address of the multicast group.
Port Map These are the ports where the IP multicast packets are being forwarded to.
9-10 Browse Router Port
This displays which of the Switch’s ports are currently configured as router ports.A router port configured by a user (using the console or Web-based
management interfaces) is displayed as a static router port, designated by S.A router port that is dynamically configured by the Switch is designated by D.

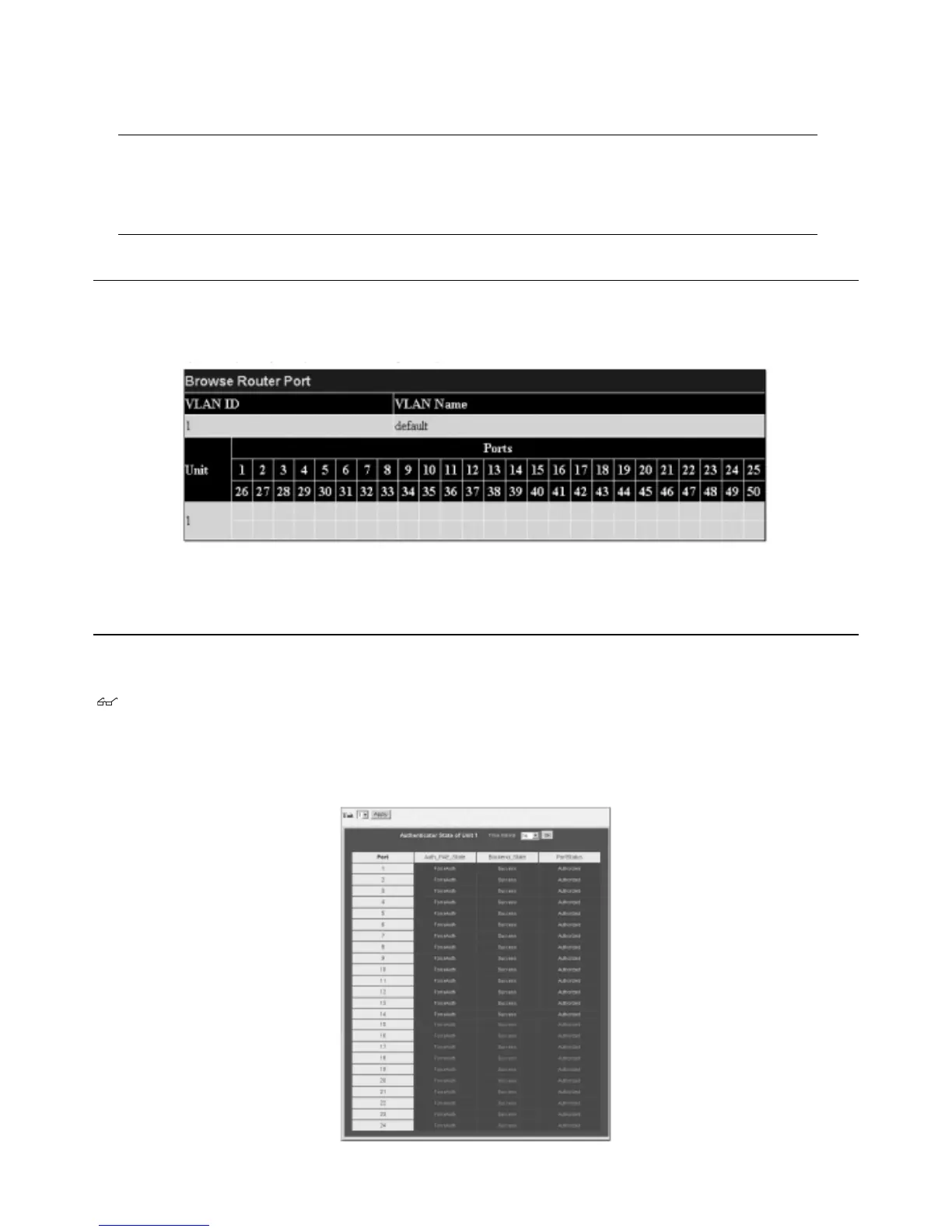

Figure 9- 21. Browse Router Port window
9-11 Port Access Control
The following screens are used to monitor 802.1x statistics of the Switch, on a per port basis.To view the Port Access Control screens, open the monitoring
folder and click the
Port Access Control folder.There are six screens to monitor.
Note: 802.1X must be enabled under Configuration > Advanced Settings.
Authenticator State
The following section describes the 802.1X Status on the Switch.To view the Authenticator State, click Monitoring > Port Access Control >
Authenticator State
.
Figur
e 9- 22.Authenticator State window – Port Based 802.1x
171
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
