Allied Telesis AT-9724TS User Manual

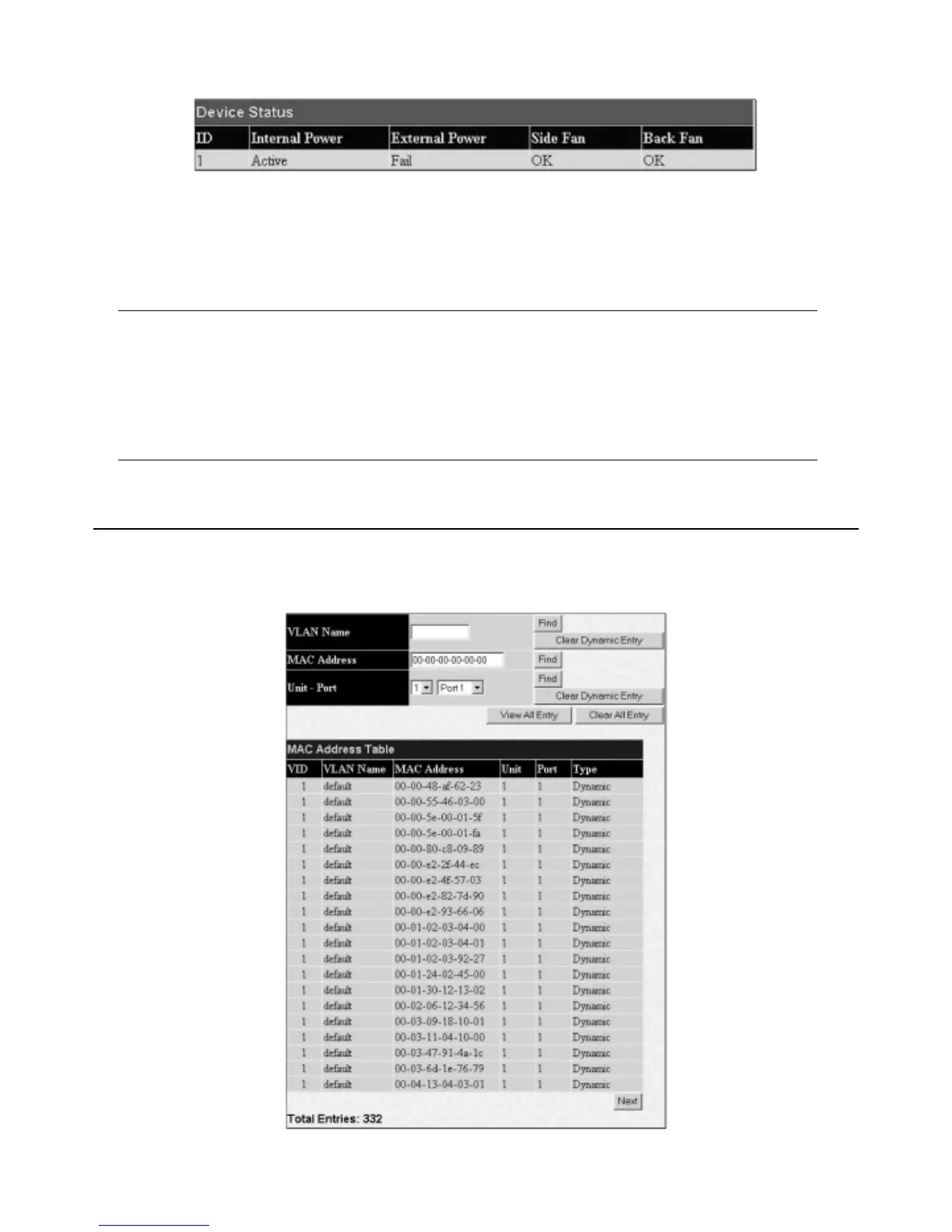

Figure 9- 16. Device Status window
The following fields may be viewed in this window:
Parameter Description
ID
The Box ID of the Switch in the switch stack.
Internal Power A read only field denoting the current status of the internal power supply.Active will suggest the mechanism is
functioning correctly while Fail will show the mechanism is not functioning correctly.
External Power A read only field denoting the current status of the external power supply.Active will suggest the mechanism is
functioning correctly while Fail will show the mechanism is not functioning correctly.
Side Fan A read only field denoting if the side fan of the Switch is functioning properly.
Back Fan A read only field denoting if the back fan of the Switch is functioning properly.
9-6 MAC Address
This allows the Switch's dynamic MAC address forwarding table to be viewed.When the Switch learns an association between a MAC address and a port
number, it makes an entry into its forwarding table.These entries are then used to forward packets through the Switch.
To view the MAC Address forwarding table, from the
Monitoring menu, click the MAC Address link:
Figur
e 9- 17.
MA
C
Ad
dress Table
168
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
