Alternatively, you can enter config ipif System ipaddress xxx.xxx.xxx.xxx/z.Where the x's represent the IP address to be assigned to the IP interface
named System and the z represents the corresponding number of subnets in CIDR notation.
The IP interface named System on the Switch can be assigned an IP address and subnet mask which can then be used to connect a management station to the
Switch's Telnet or Web-based management agent.

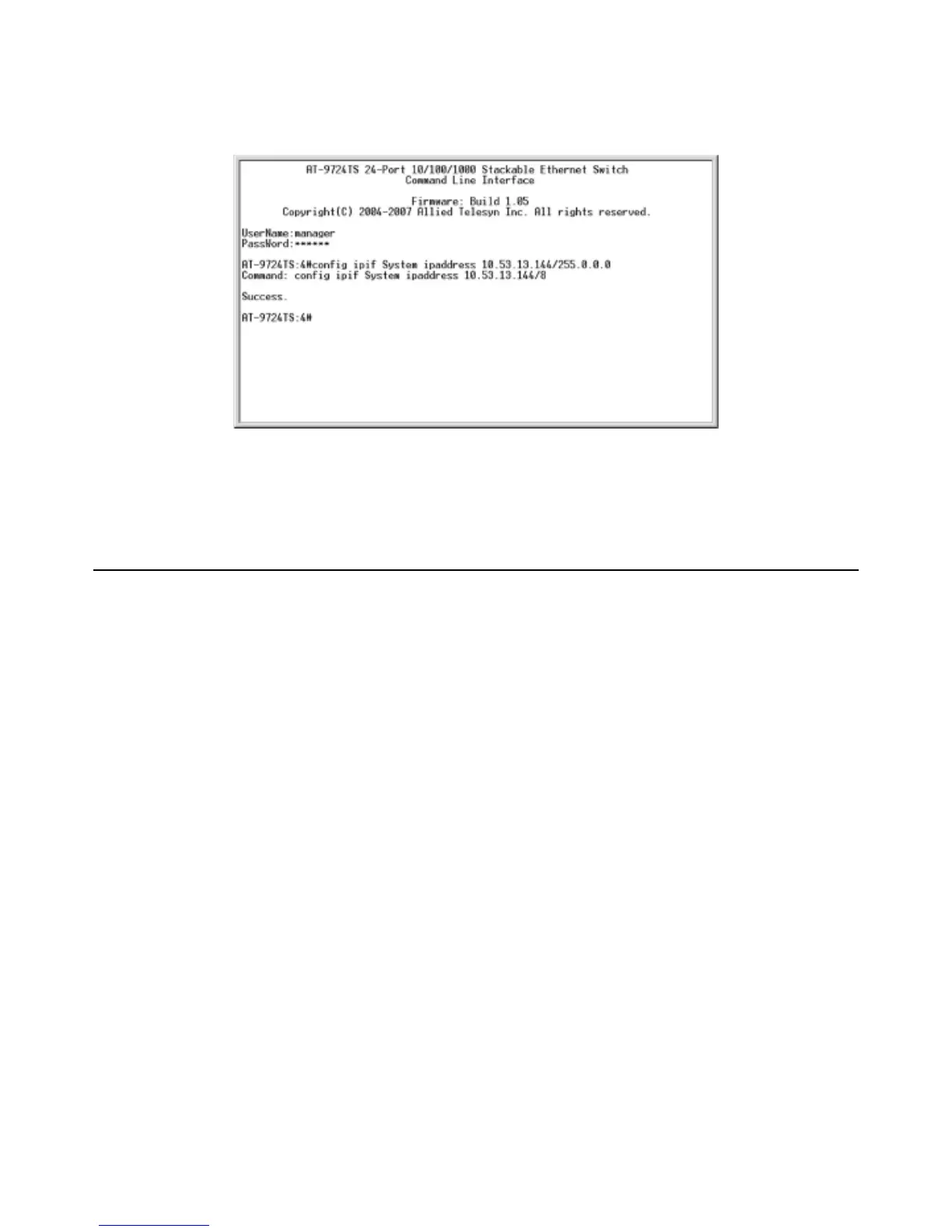

Figure 4- 4.Assigning the Switch an IP Address
In the above example, the Switch was assigned an IP address of 10.53.13.144 with a subnet mask of 255.0.0.0.The system message Success indicates that the
command was executed successfully.The Switch can now be configured and managed via Telnet and the CLI or via the Web-based management.
4-10 Connecting Devices to the Switch
After you assign IP addresses to the Switch, you can connect devices to the Switch.
To connect a device to an SFP transceiver port:
Use your cabling requirements to select an appropriate SFP transceiver type.
Insert the SFP transceiver (sold separately) into the SFP transceiver slot.
Use the appropriate network cabling to connect a device to the connectors on the SFP transceiver.
m Caution: When the SFP transceiver acquires a link, the associated integrated 10/100/1000T port is disabled.
24
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch
