Allied Telesis AT-9724TS User Manual

Static Multicast Forwarding
The following figure and table describe how to set up Multicast Forwarding on the Switch. Open the Forwarding Filtering folder and click on the
Multicast Forwarding link to see the entry screen below:

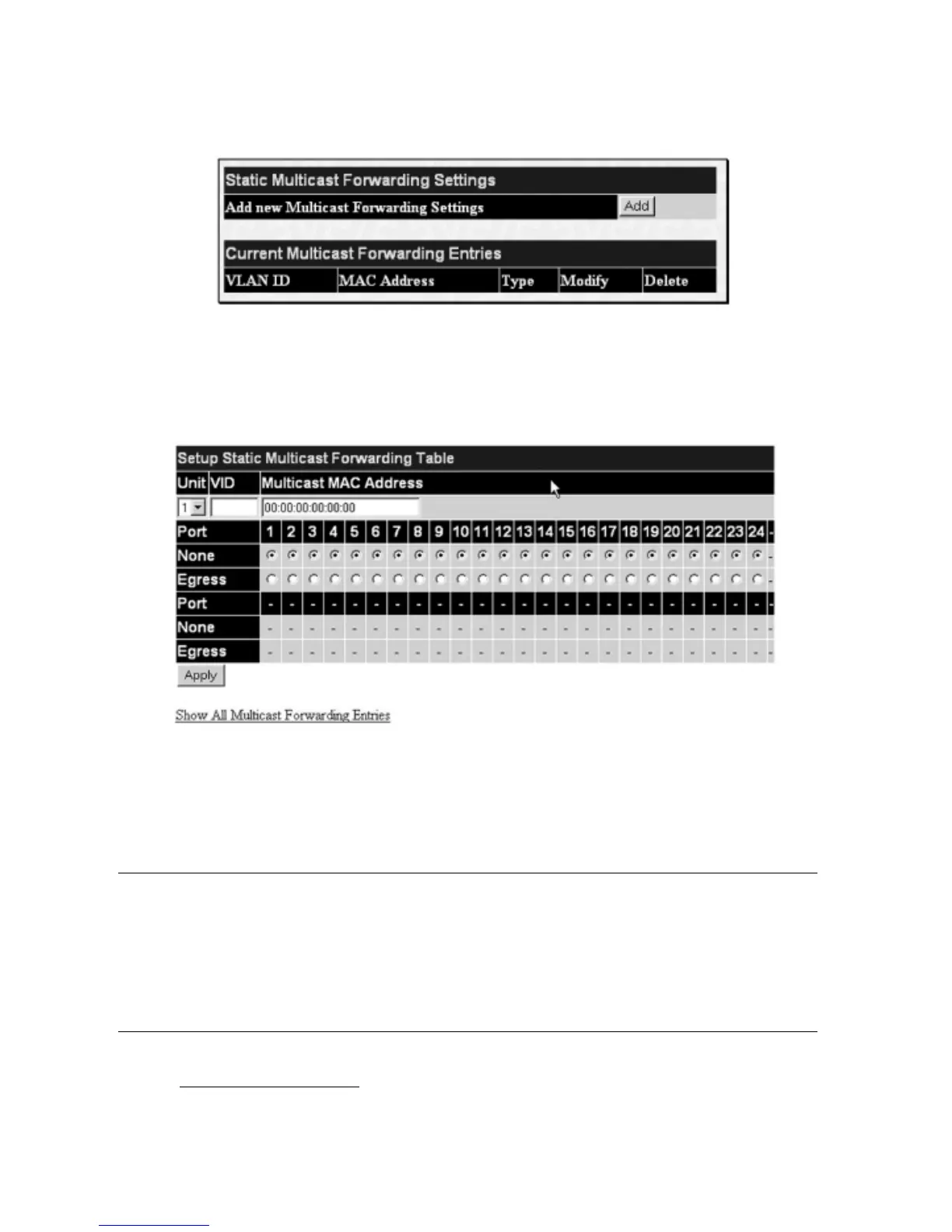

Figure 6- 35. Static Multicast Forwarding Settings and Current Multicast Forwarding Entries
The Static Multicast F
orwarding Settings
page displa
ys all of the entries made into the Switch's static multicast forwarding table. Click the
Add button
to open the
Setup Static Multicast Forwarding Table, as shown below:
Figure 6- 36. Setup Static Multicast Forwarding Table
The f
ollo
wing parameters can be set:
Parameter Description
Unit Choose the Switch ID number of the Switch in the switch stack to be modified.
VID The VLAN ID of the VLAN the corresponding MAC address belongs to.
Multicast MAC Address The MAC address of the static source of multicast packets.This must be a multicast MAC address.
Port Allows the selection of ports that will be members of the static multicast group.The options are:
None – No restrictions on the port dynamically joining the multicast group.When None is chosen, the port will
not be a member of the Static Multicast Gr
oup.
Egr
ess
–
The port is a static member of the multicast group.
Click
Apply to implement the changes made.To delete an entry in the Static Multicast Forwarding Table, click the corresponding 8 under the Delete
heading. Click the Show All Multicast Forwarding Entries link to return to the Static Multicast Forwarding Settings window.
53
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
