RADIUS Server
The RADIUS feature of the Switch allows you to facilitate centralized user administration as well as providing protection against a sniffing, active hacker.The Web
Manager off
ers three windows.
Click
Port Access Entity > RADIUS Server > Authentic Radius Server to open the RADIUS Server Authentication Setting window
shown below:

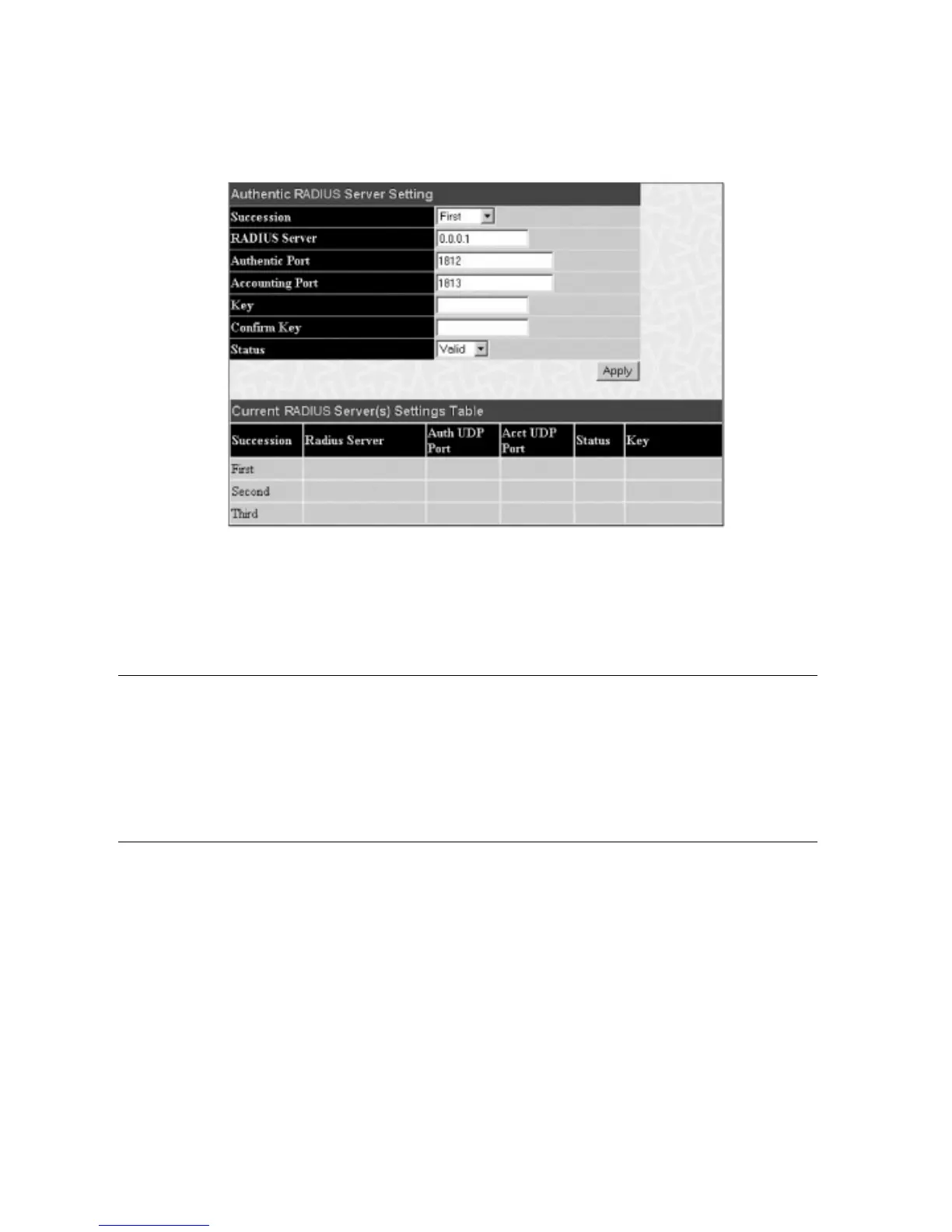

Figure 6- 83.Authentic RADIUS Server Setting and Current RADIUS Server Settings Table window
This window displays the following information:
Parameter Description
Succession Choose the desired RADIUS server to configure: First, Second or Third.
RADIUS Server Set the RADIUS server IP.
Authentic Port Set the RADIUS authentic server(s) UDP port.The default port is 1812.
Accounting Port Set the RADIUS account server(s) UDP port.The default port is 1813.
K
ey
Set the k
e
y the same as that of the RADIUS ser
v
er
.
Confirm Key Confirm the shared key is the same as that of the RADIUS server.
Status This allo
ws you to set the RADIUS Server as Valid (Enabled) or Invalid (Disabled).
Click
A
pply
to implement changes made
.
92
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch

Allied Telesis AT-9724TS Specifications

General

MAC address table	16000 entries
Packet buffer memory	2 MB
Maximum data transfer rate	88 Gbit/s
Full duplex	Yes
Dimensions (WxDxH)	440 x 210 x 44 mm
Power requirements	100-240V AC/50-60Hz
Management platform	SNMP, RMON
Networking features	IEEE 802.3 10T Ethernet, IEEE 802.3u 100TX Ethernet, IEEE 802.3ab 1000T Ethernet, IEEE 802.3z 1000X Ethernet
Connectivity technology	Wired
DHCP features	DHCP client
Security algorithms	SSH
Switch type	Managed
Switch layer	L3+
SFP/SFP+ slots quantity	4
Basic switching RJ-45 Ethernet ports quantity	24
Memory type	SDRAM / Flash
Flash memory	16 MB
Internal memory	256 MB
Power consumption (typical)	90 W
Certification	UL 1950 FCC Class A CSA 22.2 No. 950 EN55022 Class A EN 60950 (TUV) EN50082-1 CE
Storage temperature (T-T)	-25 - 55 °C
Operating temperature (T-T)	0 - 40 °C

Weight and Dimensions

Weight	3200 g
