802.1p Default Priority
The Switch allows the assignment of a default 802.1p priority to each port on the Switch. In the Configuration folder open the QoS folder and click 802.1p
Default Priority
, to view the screen shown below.

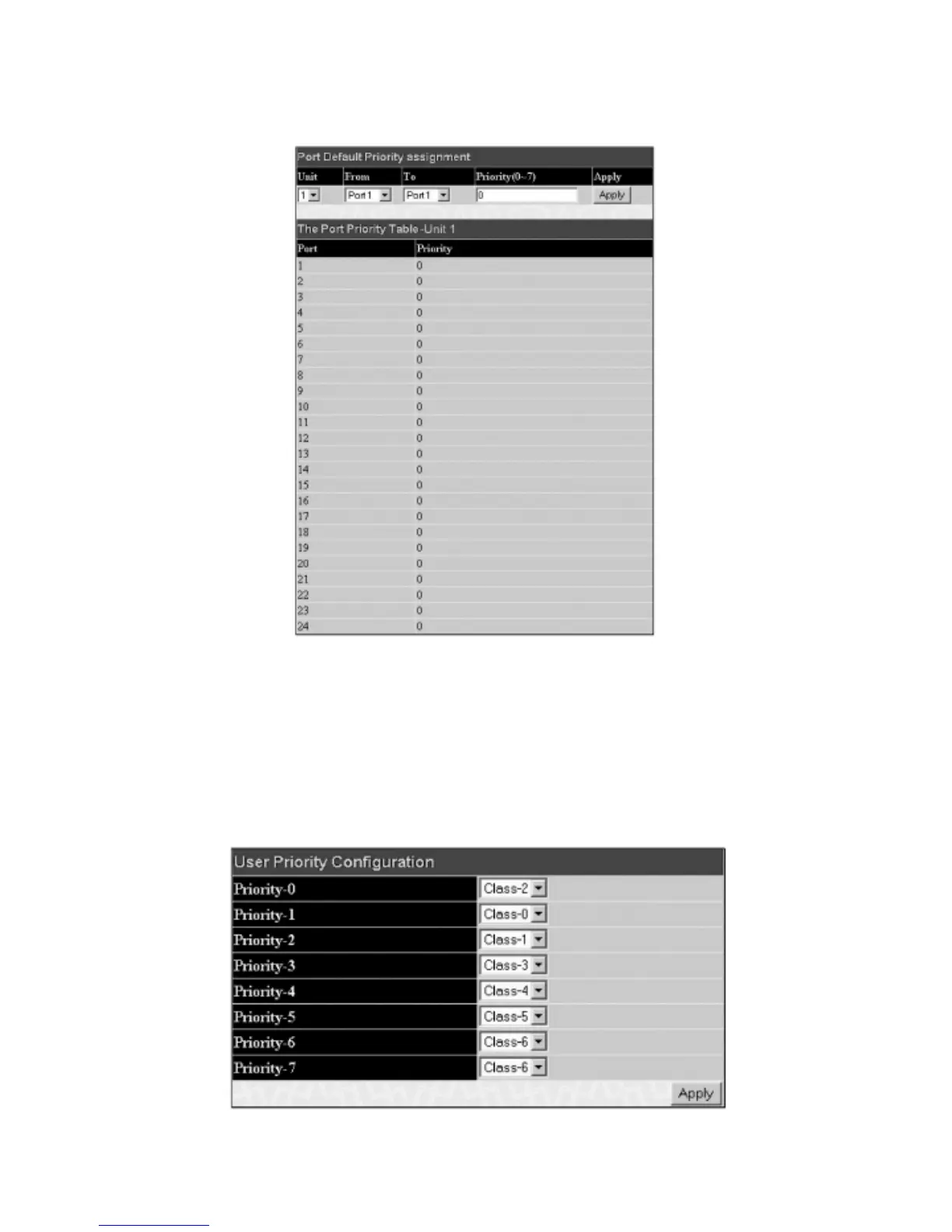

Figure 6- 52. Port Default Priority Assignment and The Port Priority Table window
This page allows you to assign a default 802.1p priority to any given port on the Switch.The priority queues are numbered from 0, the lowest priority, to 7, the
highest priority.To implement a new default priority, choose the Switch of the Switch stack to be configured by using the
Unit pull-down menu, choose a port
range by using the
From and To pull-down menus and then insert a priority value, from 0-7 in the Priority field. Click Apply to implement your settings.
802.1p User Priority
The AT-9724TS allows the assignment of classes of service to each of the 802.1p priorities. In the Configuration folder open the QoS folder and click
802.1p User Priority, to view the screen shown below.
Figure 6- 53. User Priority Configuration window
70
Allied Telesyn AT-9724TS High-Density Layer 3 Stackable Gigabit Ethernet Switch
