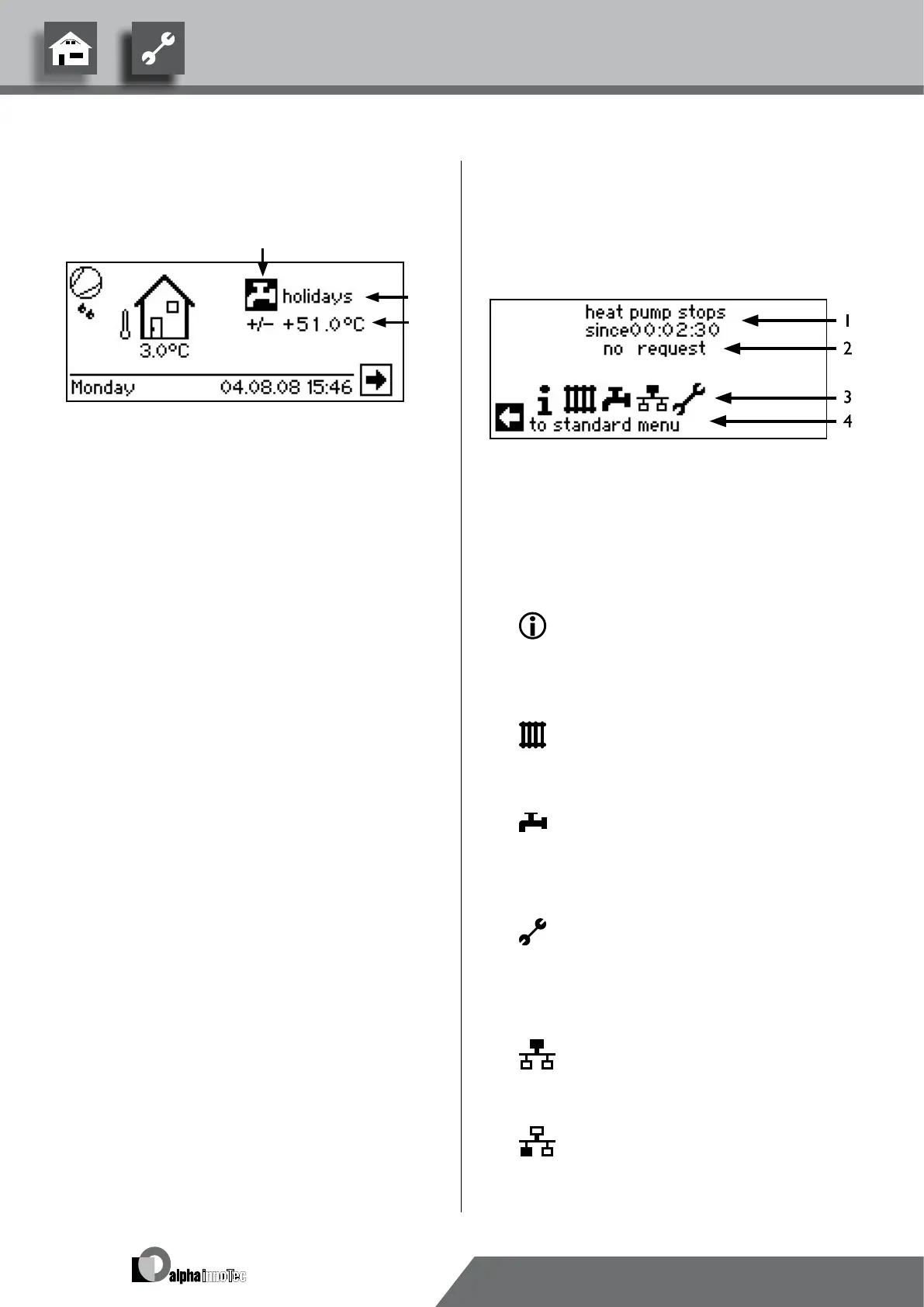

Standard screen
“Domestichotwater”
10
9
11
9 Symbol for program area
“DomesticHotWater”
Indicates that domestic hot water functions are being
controlled in the standard screen.
10 Current domestic hot water mode of opera-
tion
Auto(matic), Holidays, 2 hg, Off or Party.
11 Set temperature for heating hot water
The Navigation Screen
The navigation screen provides an overview of the various
program areas of the heating and heat pump regulator.
basIc dIsplay
1 Current operating state of the heat pump with time
indication
2 Reason for the current operating state or fault mes-
sage
3 Symbols for the program areas of the heating and heat
pump regulator
Standard symbols which are always displayed are:
Symbol for program area “Information and
Quick Setting”
Operating information and system operation
by the user
Enabled for all users
Symbol for program area “Heating”
Program area for setting all parameters for the
heating and mixing circle
Only for qualied technicians
Symbol for program area “Domestic Hot
Water”
Program area for setting all parameters for do-
mestic hot water preparation
Only for qualied technicians
Symbol for program area “Service”
Program area for setting the basic system pa-
rameters
Only for authorised service personnel
In parts, access via USB stick only
Symbol for program area “Parallel Connection
Master.” Connection of up to 4 heat pumps
with one another.
Only for qualied technicians.
Symbol for program area “Parallel Connection
Slave.” Only for qualied technicians.
4 Information on the activated symbol.
