callIng up the machIne status
In the “Service Information” menu select the menu
eld “Maschine status”…

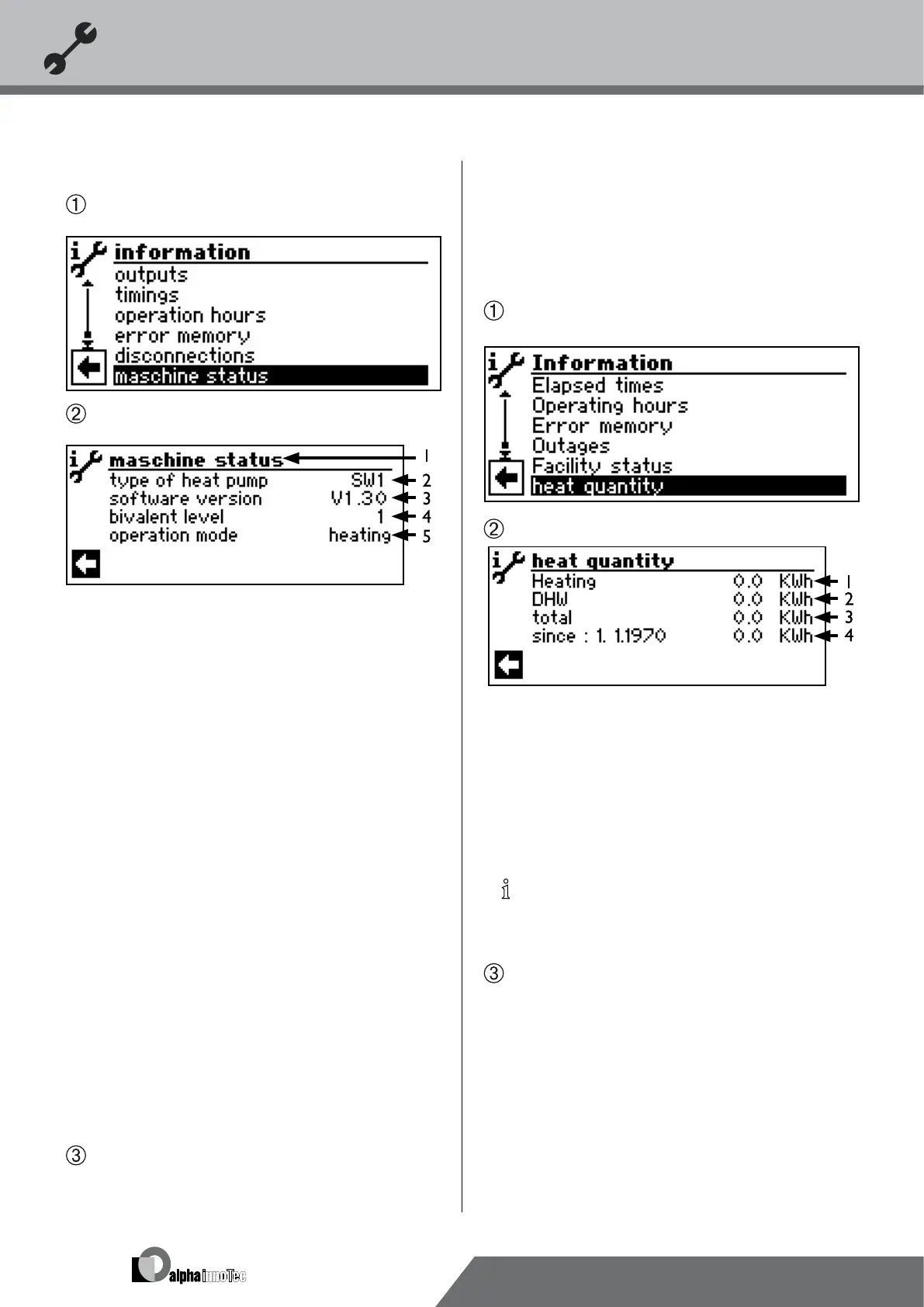

The screen changes to the menu “Service Information
maschine status”…
1 Symbol for program area “Service
Information” with menu title
2 Type of heat pump
3 Software version
of the heating and heat pump regulator
4 Bivalent level
1 = a compressor may operate
2 = two compressors may operate
3 = additional heat generator may operate as well
5 Operation mode
Current operating state of the heat pump
Heating
Domestic hot water
Defrost
Only for output-controlled heat pump:
Current capacity Heating output currently provided by
the output-controlled compressor.
This heating output can be used to
set the overow valve in a storage
tank integrated in series according
to the setting diagram in the unit in-
structions.
Capacity demand Required output for output-controlled
compressor controlled by the heating
and heat pump controller.
Software version SEC Current software version of the
inverter controller of the output-
controlled heat pump
Return to menu “Service Information”.
heat quantIty
Many heat pump types are equipped with heat quantity re-
cording by pressure sensors in the cooling circuit of the heat
pump. In these heat pumps the heat quantity can be read out
directly – for all other units in the Luxtronik 2.0 series the
external heat quantity meter can be retrotted (accessory).
In the “Service Information” menu select the menu
eld “heat quantity”…
The screen changes to the menu „heat quantity“…
1 Recorded heat quantity for heating in kWh
2 Recorded heat quantity for hot water in kWh
3 Sum of the recorded heat quantities in kWh
4 Date of the last recording.
Go to and click the date to reset the heat quantity re-
cording to zero. In this way the heat quantity can be
recorded for a period dened by you (start date =
displayed date).
NOTICE
If applicable, after displaying the recorded heat
quantity for hot water, the recorded heat quantity
for swimming pool is displayed.
Return to menu “Service Information”.
