Program area “Service”
select program area

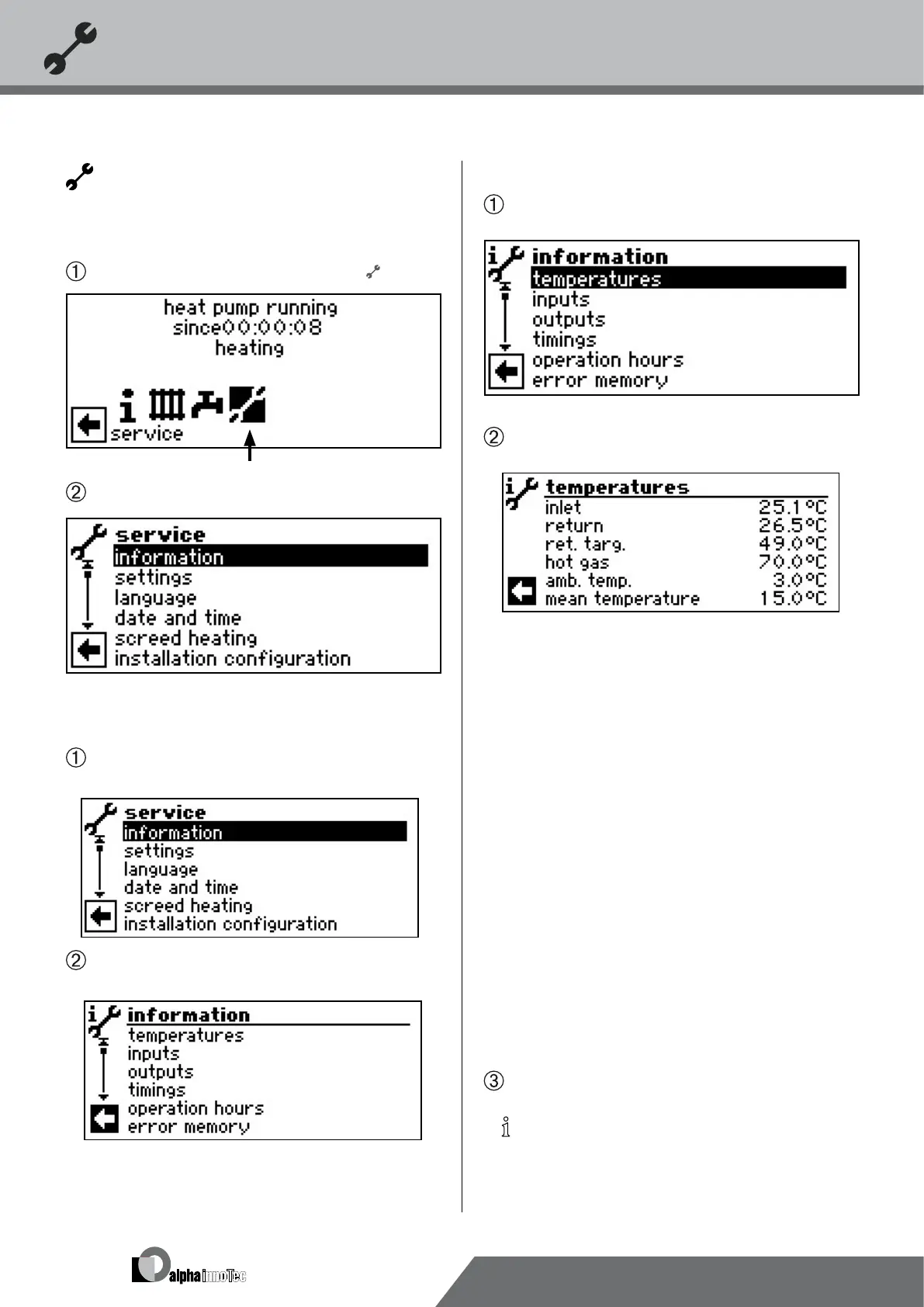

In the navigation screen, select the Symbol …
The screen changes to the menu “Service”…
query InformatIon
In the menu “Service”, select the menu eld “Informa-
tion”…
The screen changes to the menu “Service Informa-
tion”…
query temperatures
In the “Service Information” menu select the menu
eld “Temperatures”…
The screen changes to the menu “ Service information
Temperatures”…
Inlet Flow temperature heating circle
Return Return ow temp. of heating circle
Ret. targ. Return setpoint heating circle
Return external Return temp. in separate tank.
Hot gas Hot gas temperature
amb. temp. External temperature
Mean temperature Average temperature
outside over (function heating limit)
Act. service water Domestic hot water actual
temperature
Targ. service water Domestic hot water target
temperature
Heats in Heat source inlet temperature
Heats out Heat source outlet temperature
Mixing circle 1 fore. Mixing circle 1
Forward ow temperature
Mixing circle 1 desir. Mixing circle 1
Forward ow set temperature
Room temperatures Is displayed if the room control unit is
connected
In addition – depending on the unit type of the connected
heat pump – the cooling circuit information provided by
sensors in the cooling circuit appears here.
Return to menu “Service Information”
