External sensor for the surface mounting.
•
Operating instructions.
•
“Brief description of the heat pump control“.
NOTICE
Please fasten the brief description in the vicinity of
the heating and heat pump control.
What to do rst:
Check the supplied product for signs of external
damage during delivery…
Check that nothing is missing from the scope of supply.
Immediately submit a complaint in the event of delivery
defects.
Installation
InstallIng the InstallatIon control
In the case of devices for internal mounting, the control card
of the heating and heat pump is integrated in the electrical
switch cabinet of the device.
Operating instructions of your heat pump, assembly
of the operating element
assembly of the Wall control
For all work to be carried out:
NOTICE
Observe the locally-applicable accident prevention
regulations, statutory provisions, ordinances and di-
rectives.
WARNING!
Only qualied technicians may mount the
heating and heat pump control.

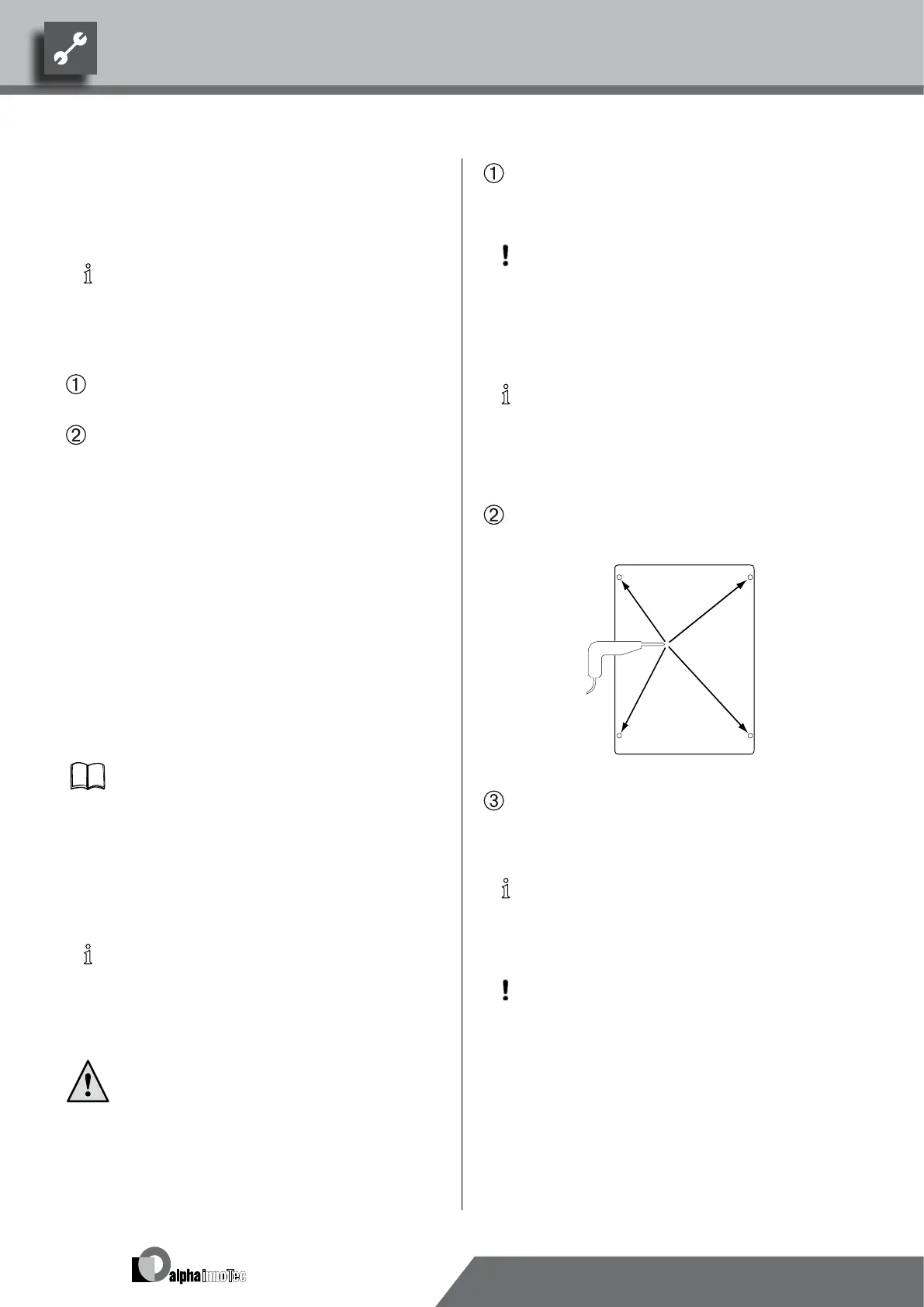

Position the drill template at the point where the heat-
ing and heat pump control is to be located…
ATTENTION!
Check the potential mounting location for con-
cealed wiring. Position the drill template in such way
that no concealed wiring can be drilled into or dam-
aged during the subsequent assembly work.
NOTICE
You need to ensure ≥ 2 cm free space to the right
and left of the drill template, so that there is enough
space for the side fastening screws of the housing
cover.
Fix drill template onto the wall with adhesive tape, drill
holes (Ø 6 mm, depth ≥ 55 mm)…
Take drill template off the wall, insert dowels in the
holes, screw in screws (spacing from the substrate to
the screw head approximately 10mm)…
NOTICE
The wall mounting material included in the scope of
supply requires solid masonry.
ATTENTION
Ensure that the screws are rmly in the substrate.
