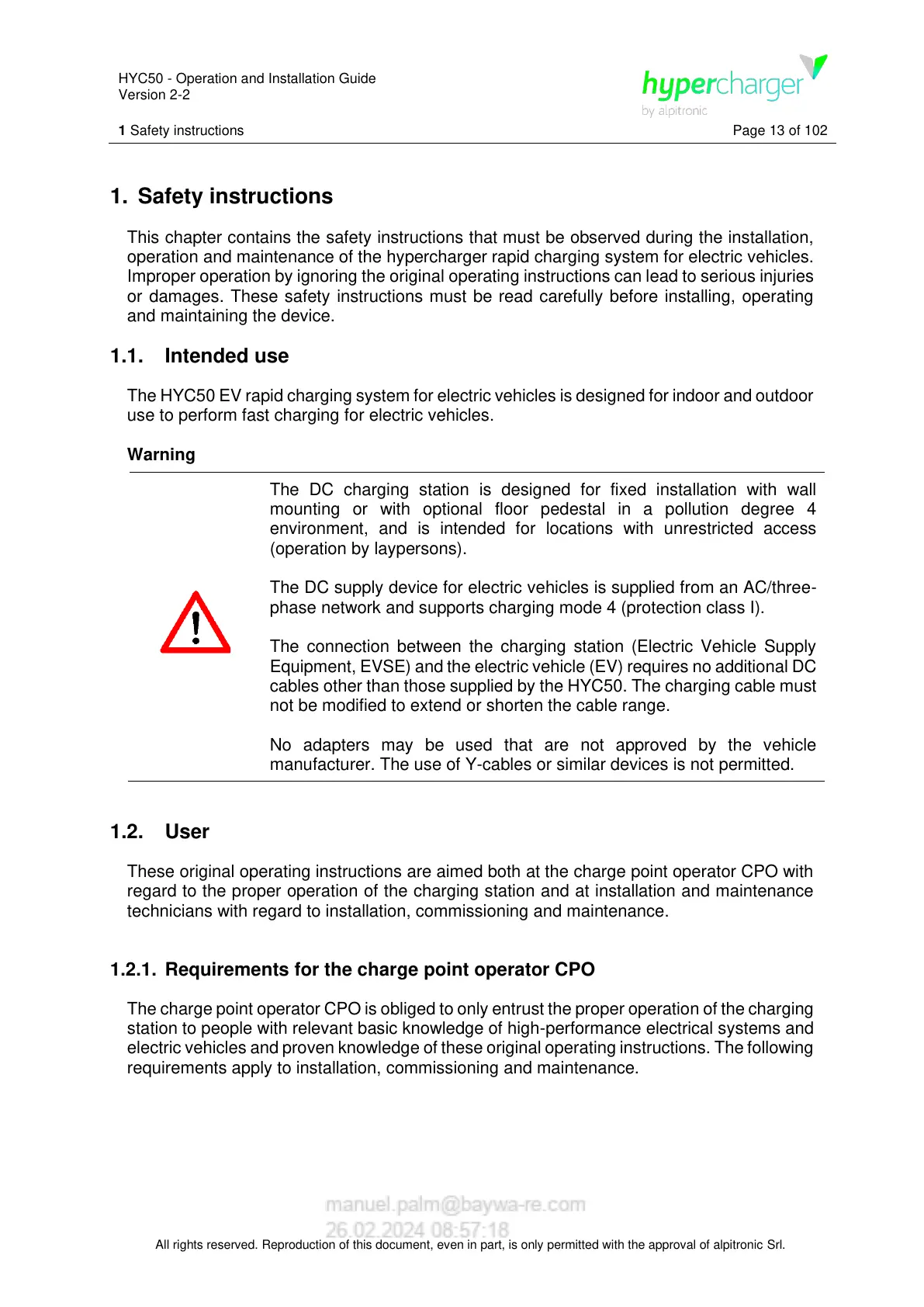

1. Safety instructions
This chapter contains the safety instructions that must be observed during the installation,
operation and maintenance of the hypercharger rapid charging system for electric vehicles.
Improper operation by ignoring the original operating instructions can lead to serious injuries
or damages. These safety instructions must be read carefully before installing, operating
and maintaining the device.
1.1. Intended use
The HYC50 EV rapid charging system for electric vehicles is designed for indoor and outdoor
use to perform fast charging for electric vehicles.
Warning
The DC charging station is designed for fixed installation with wall
mounting or with optional floor pedestal in a pollution degree 4
environment, and is intended for locations with unrestricted access
(operation by laypersons).
The DC supply device for electric vehicles is supplied from an AC/three-
phase network and supports charging mode 4 (protection class I).
The connection between the charging station (Electric Vehicle Supply
Equipment, EVSE) and the electric vehicle (EV) requires no additional DC
cables other than those supplied by the HYC50. The charging cable must
not be modified to extend or shorten the cable range.
No adapters may be used that are not approved by the vehicle
manufacturer. The use of Y-cables or similar devices is not permitted.
1.2. User
These original operating instructions are aimed both at the charge point operator CPO with
regard to the proper operation of the charging station and at installation and maintenance
technicians with regard to installation, commissioning and maintenance.
1.2.1. Requirements for the charge point operator CPO
The charge point operator CPO is obliged to only entrust the proper operation of the charging
station to people with relevant basic knowledge of high-performance electrical systems and
electric vehicles and proven knowledge of these original operating instructions. The following
requirements apply to installation, commissioning and maintenance.
