4.2. Mechanical installation of the pedestal
4.2.1. Insertion of the concrete foundation
The basic requirement for mounting the HYC50 on a pedestal is a solid surface, this can be
a concrete foundation or a concrete floor.
Notice
When dimensioning the foundation, a proof of static stability must be
provided in accordance with the relevant standards. The sufficient
mechanical strength of the foundation plate must be taken into account.
Optionally, a foundation can also be ordered from alpitronic
(sales@hypercharger.it). This measures 60 x 60 x 94 cm and weighs
approx. 440 kg.

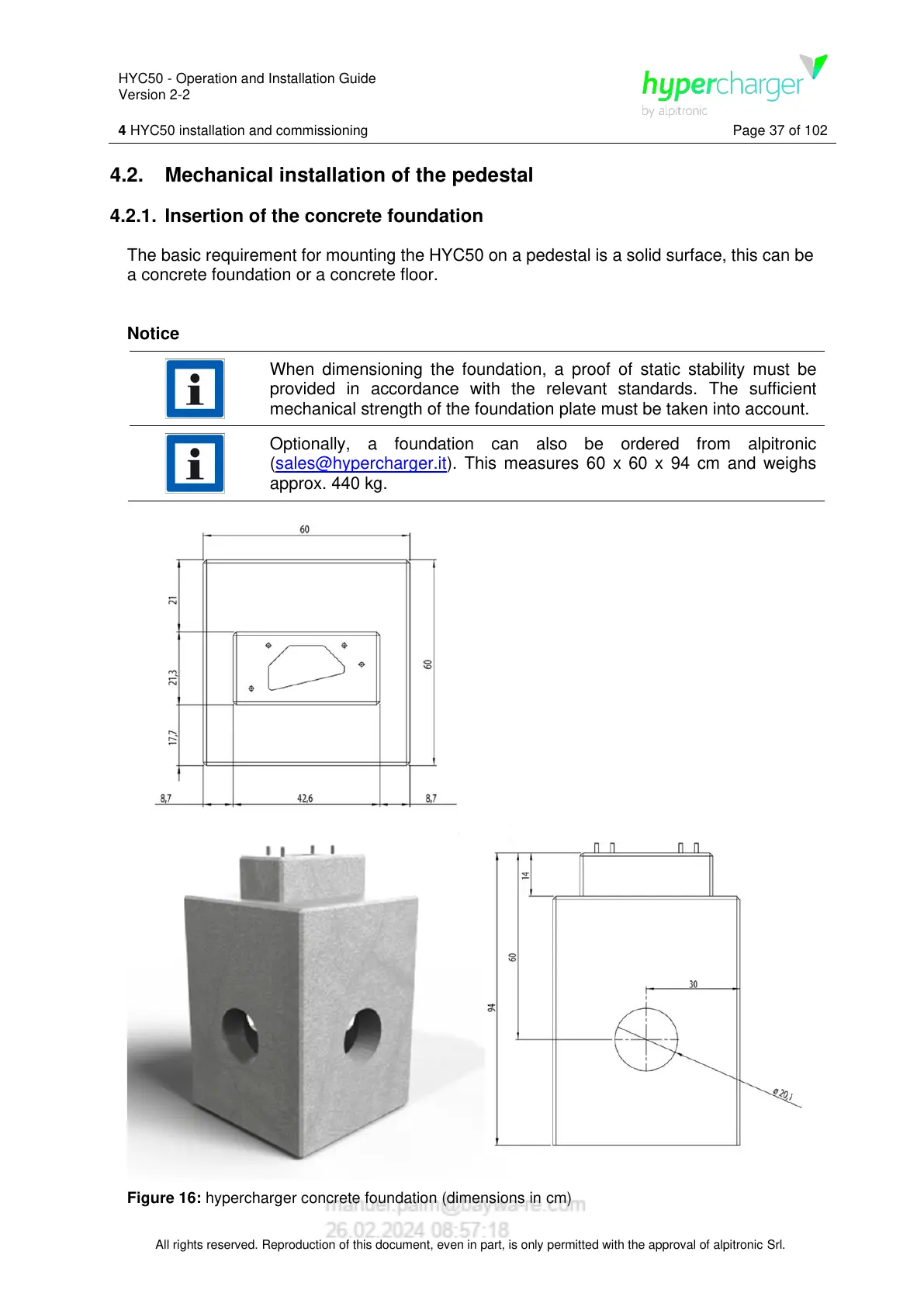

Figure 16: hypercharger concrete foundation (dimensions in cm)
