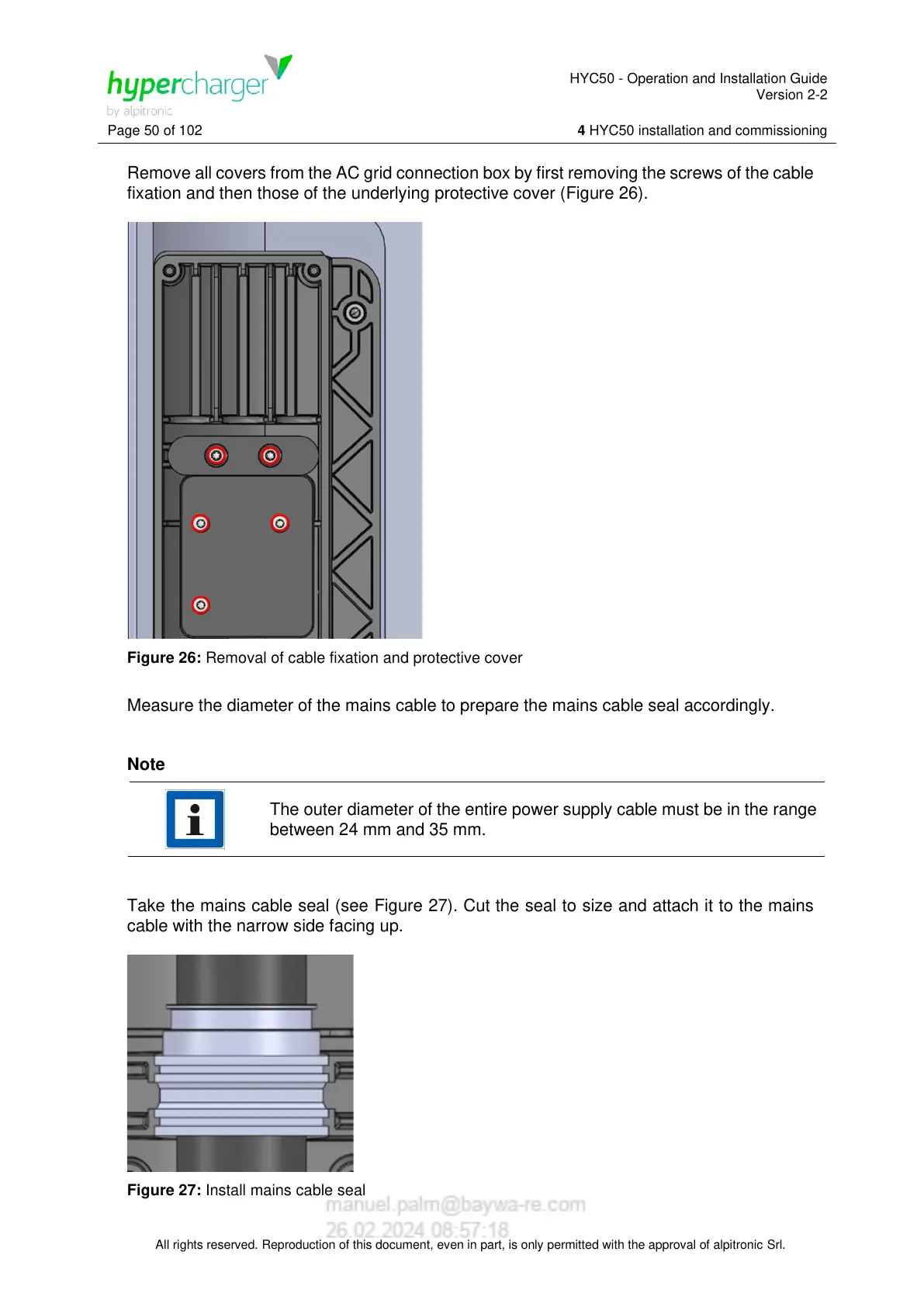

Remove all covers from the AC grid connection box by first removing the screws of the cable
fixation and then those of the underlying protective cover (Figure 26).
Figure 26: Removal of cable fixation and protective cover
Measure the diameter of the mains cable to prepare the mains cable seal accordingly.
Note
The outer diameter of the entire power supply cable must be in the range
between 24 mm and 35 mm.
Take the mains cable seal (see Figure 27). Cut the seal to size and attach it to the mains
cable with the narrow side facing up.
Figure 27: Install mains cable seal
