HYC50 - Operation and Installation Guide

Version 2-2

Page 64 of 102

4 HYC50 installation and commissioning

Insert the three mains connection cables (L1, L2, L3) into the main switch from below and

fasten them.

Notice

Tighten the screws with a torque wrench (5 Nm).

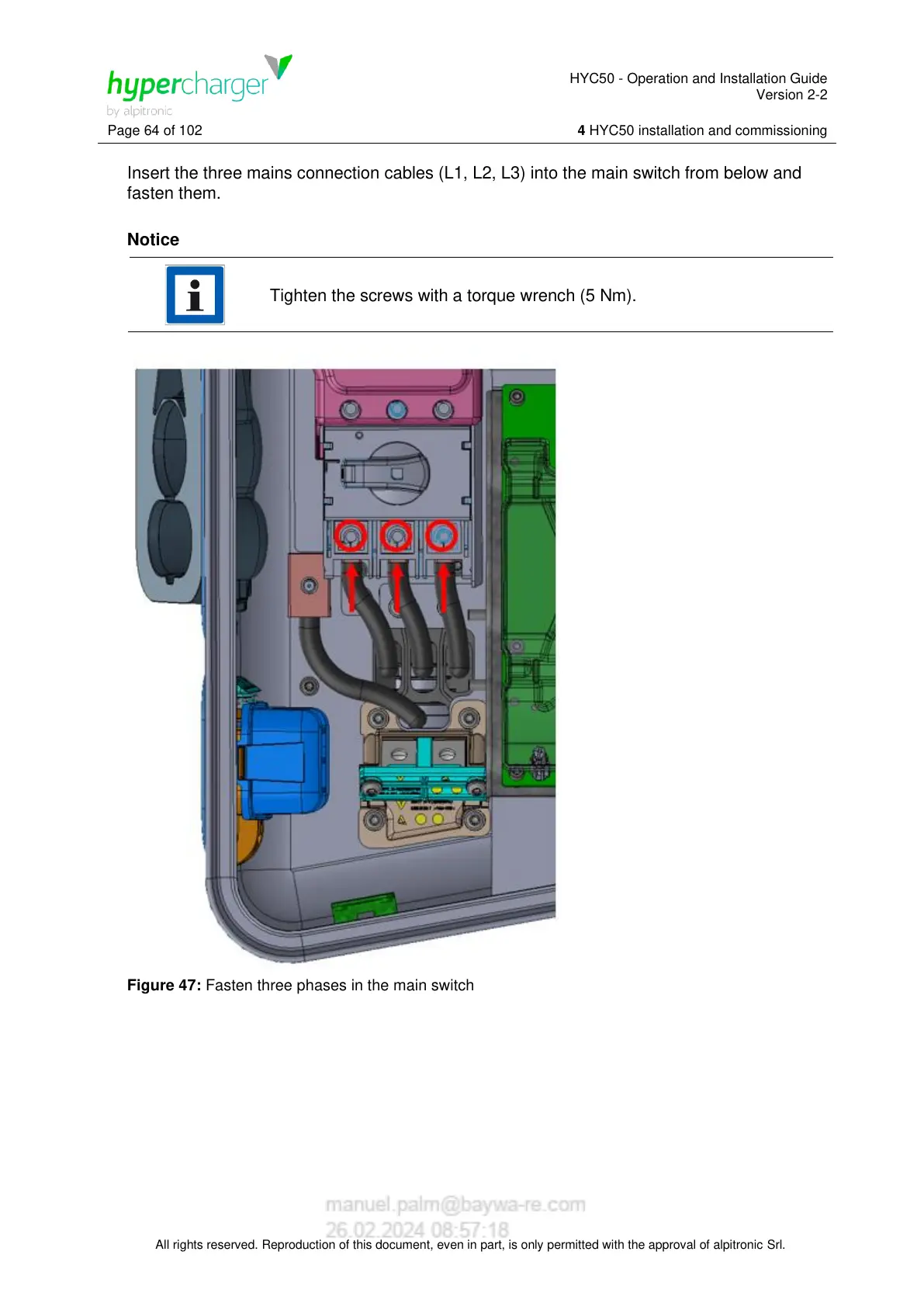

Figure 47: Fasten three phases in the main switch
