In the standard configuration, the HYC50 comes equipped with a cable length of 4.45 m.
Cable management is recommended for this cable length. Optionally, charging cables with
a length of 2.7 m can be ordered. These are only available without cable management.
Notice
alpitronic strongly recommends using the cable management for easier
handling of the 4.45 m charging cable. It prevents them from touching the
ground and getting damaged.
The cable management must be ordered separately. Contact
sales@hypercharger.it for more information.

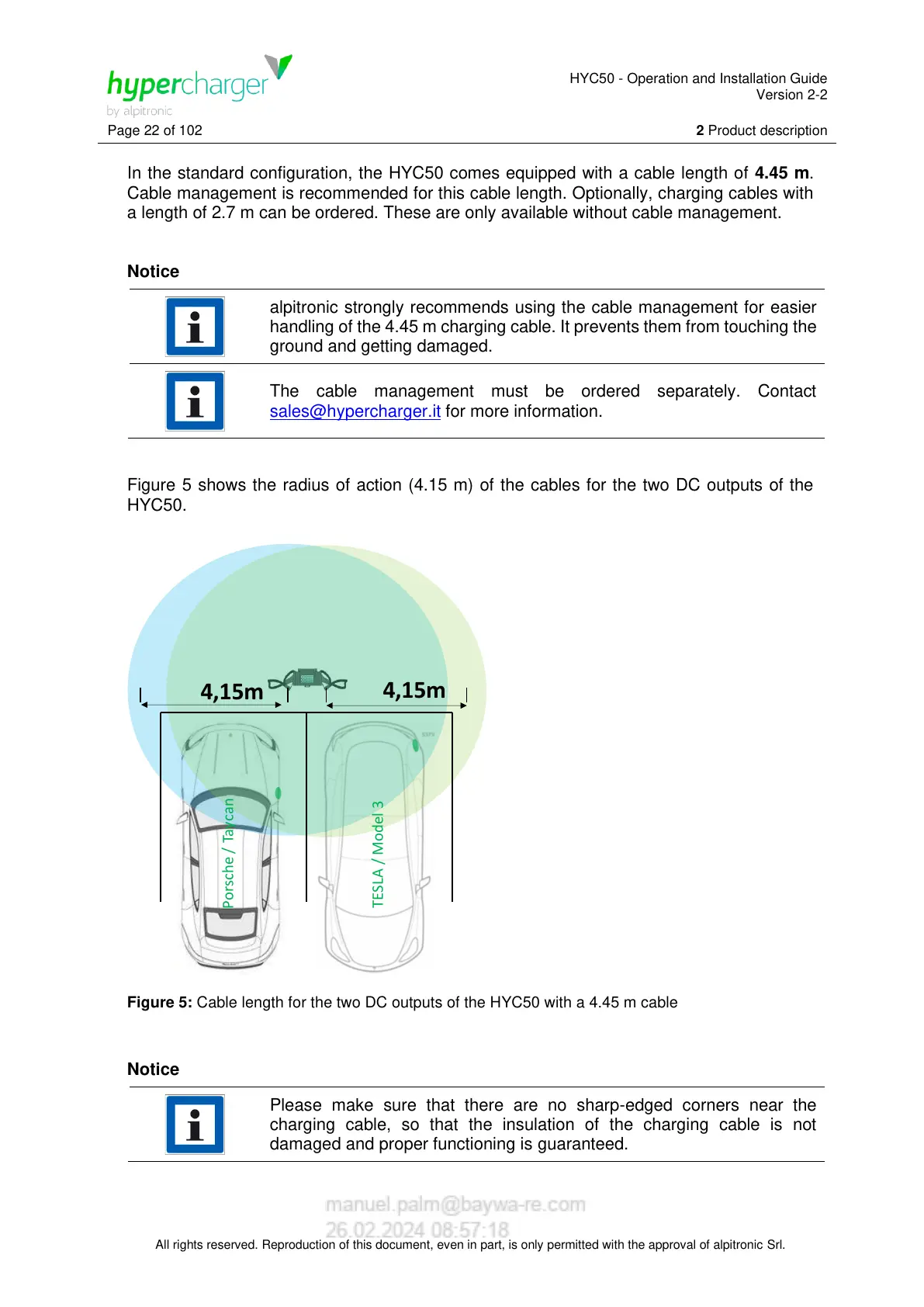

Figure 5 shows the radius of action (4.15 m) of the cables for the two DC outputs of the
HYC50.
Figure 5: Cable length for the two DC outputs of the HYC50 with a 4.45 m cable
Notice
Please make sure that there are no sharp-edged corners near the
charging cable, so that the insulation of the charging cable is not
damaged and proper functioning is guaranteed.
