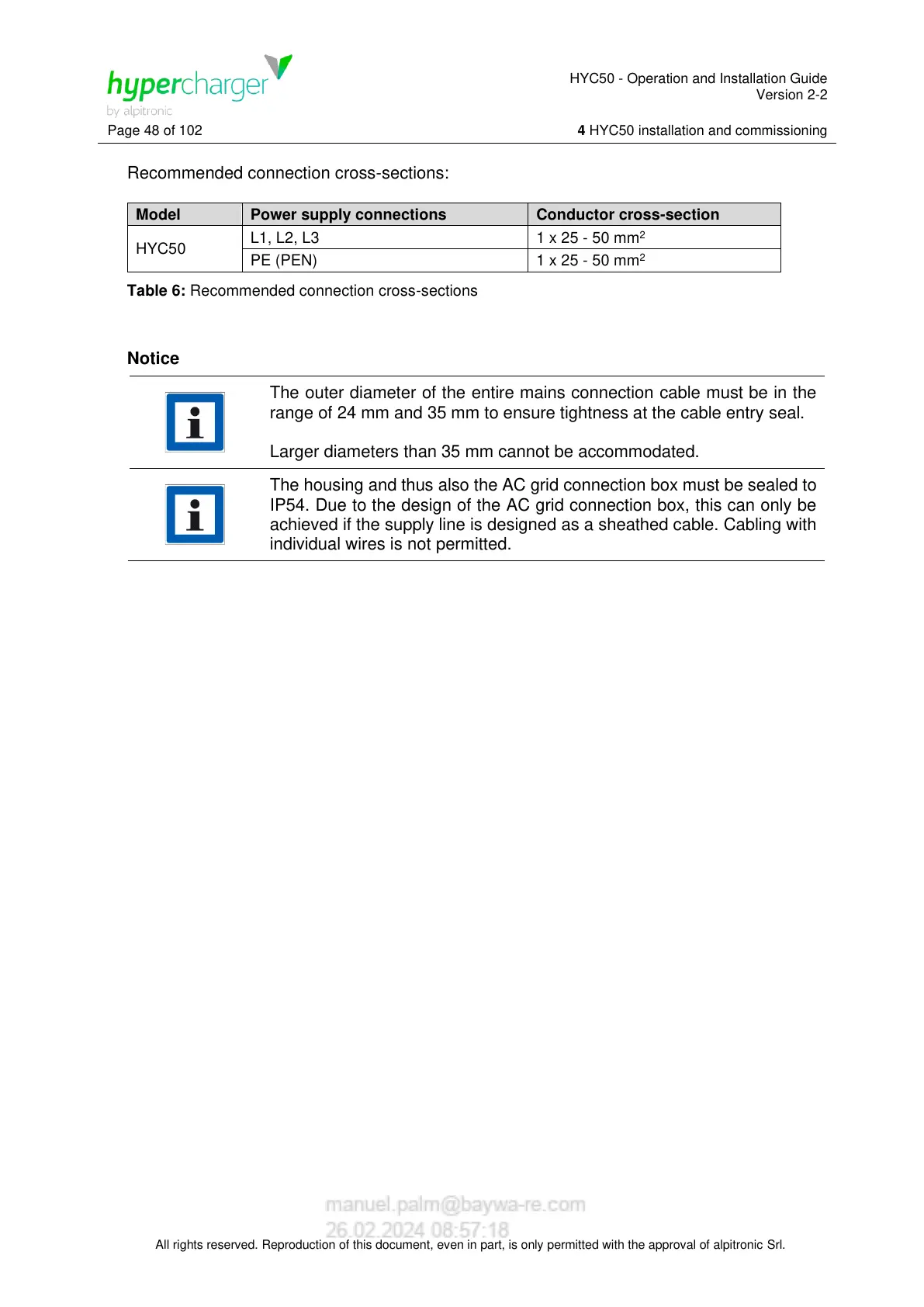

Recommended connection cross-sections:
Model
Power supply connections
Conductor cross-section
HYC50
L1, L2, L3
1 x 25 - 50 mm
2
PE (PEN)
1 x 25 - 50 mm
2
Table 6: Recommended connection cross-sections
Notice
The outer diameter of the entire mains connection cable must be in the
range of 24 mm and 35 mm to ensure tightness at the cable entry seal.
Larger diameters than 35 mm cannot be accommodated.
The housing and thus also the AC grid connection box must be sealed to
IP54. Due to the design of the AC grid connection box, this can only be
achieved if the supply line is designed as a sheathed cable. Cabling with
individual wires is not permitted.
