HYC50 - Operation and Installation Guide
Version 2-2
4 HYC50 installation and commissioning
All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.

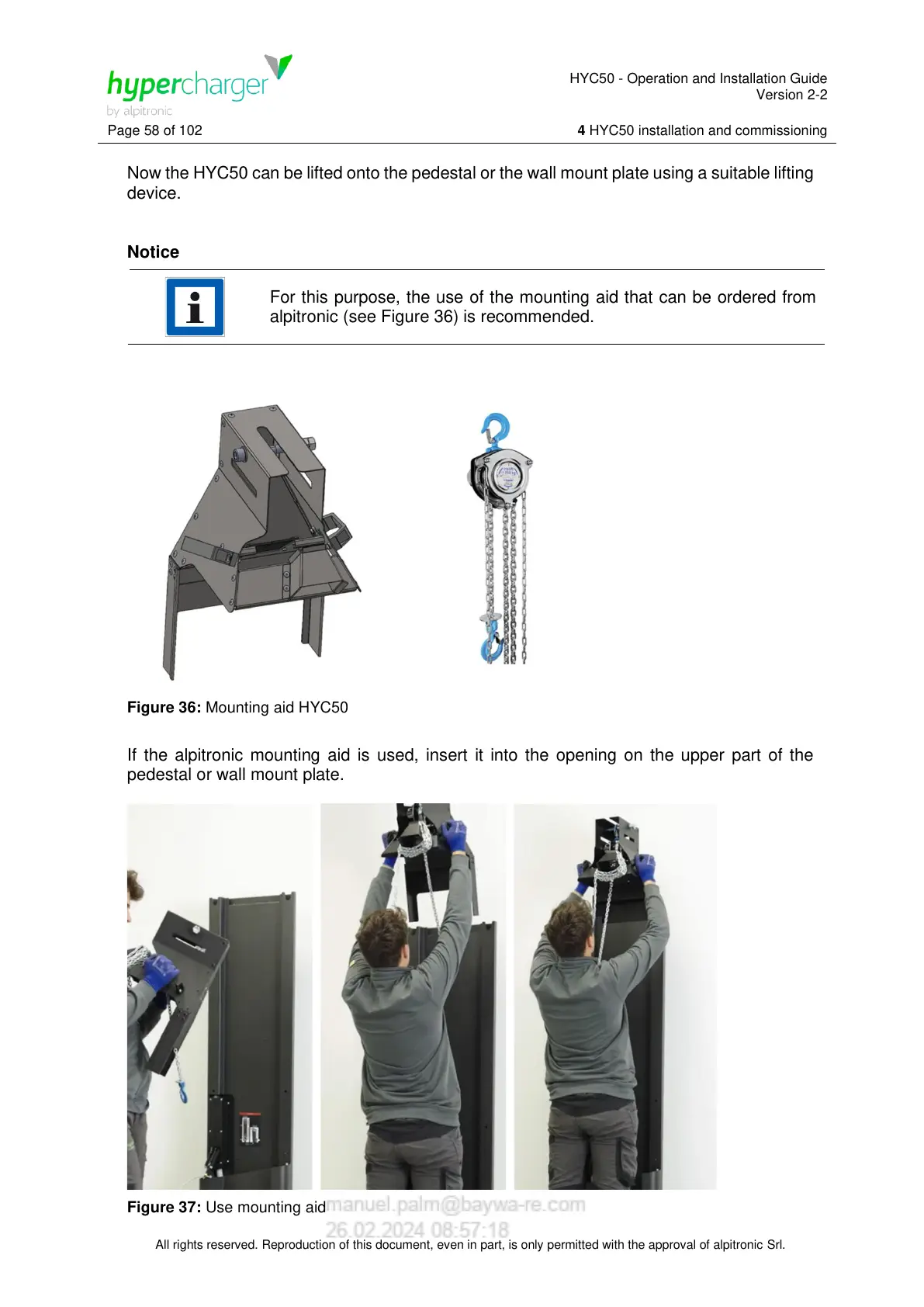

Now the HYC50 can be lifted onto the pedestal or the wall mount plate using a suitable lifting
device.
Notice
For this purpose, the use of the mounting aid that can be ordered from
alpitronic (see Figure 36) is recommended.
Figure 36: Mounting aid HYC50
If the alpitronic mounting aid is used, insert it into the opening on the upper part of the
pedestal or wall mount plate.
Figure 37: Use mounting aid
