3 Packaging, transportation, storage and handling
All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
3. Packaging, transportation, storage and handling

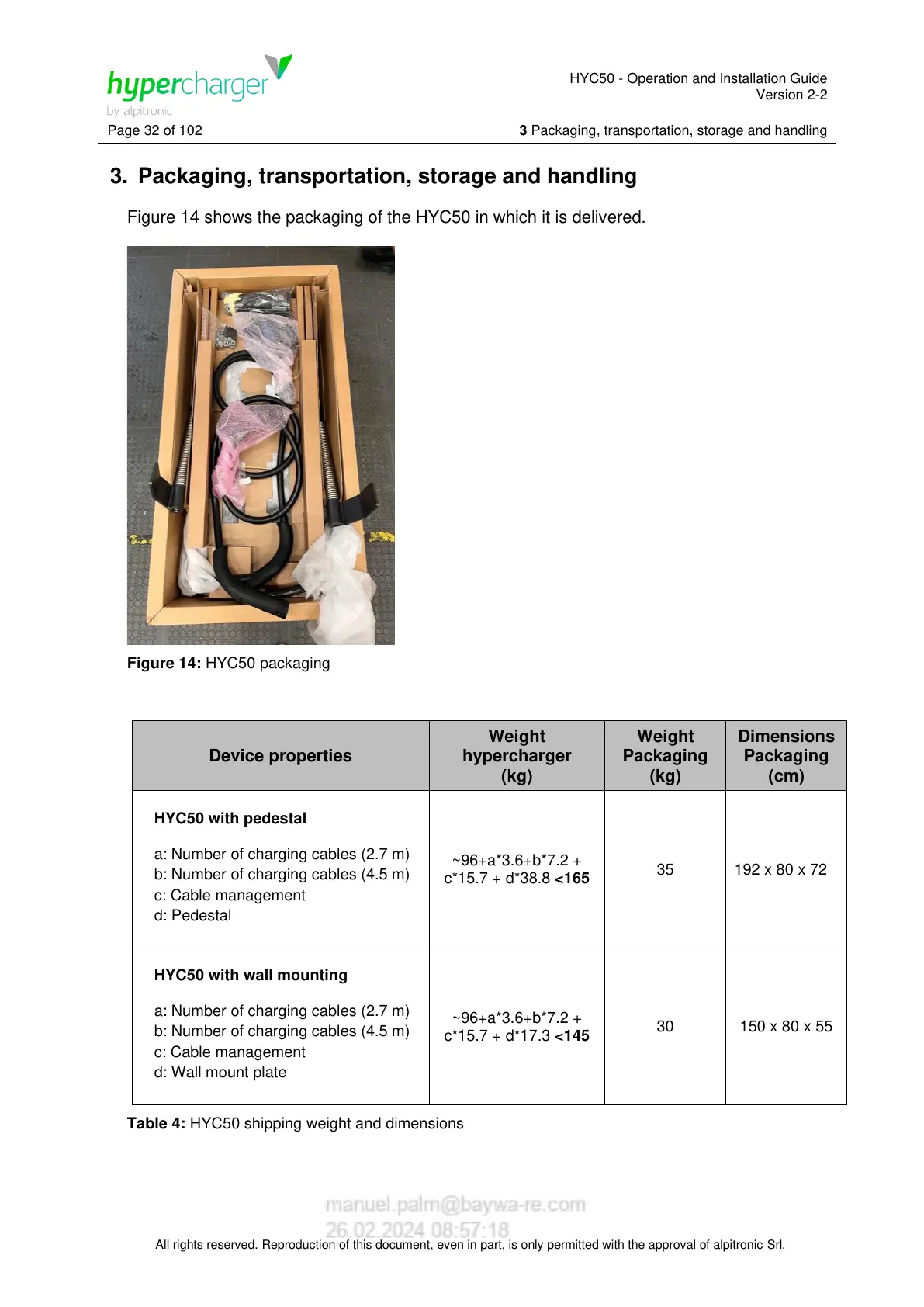

Figure 14 shows the packaging of the HYC50 in which it is delivered.
Figure 14: HYC50 packaging
Device properties
Weight
hypercharger
(kg)
Weight
Packaging
(kg)
Dimensions
Packaging
(cm)
HYC50 with pedestal
a: Number of charging cables (2.7 m)
b: Number of charging cables (4.5 m)
c: Cable management
d: Pedestal
~96+a*3.6+b*7.2 +
c*15.7 + d*38.8 <165
35
192 x 80 x 72
HYC50 with wall mounting
a: Number of charging cables (2.7 m)
b: Number of charging cables (4.5 m)
c: Cable management
d: Wall mount plate
~96+a*3.6+b*7.2 +
c*15.7 + d*17.3 <145
30
150 x 80 x 55
Table 4: HYC50 shipping weight and dimensions
