2.2. Exterior view

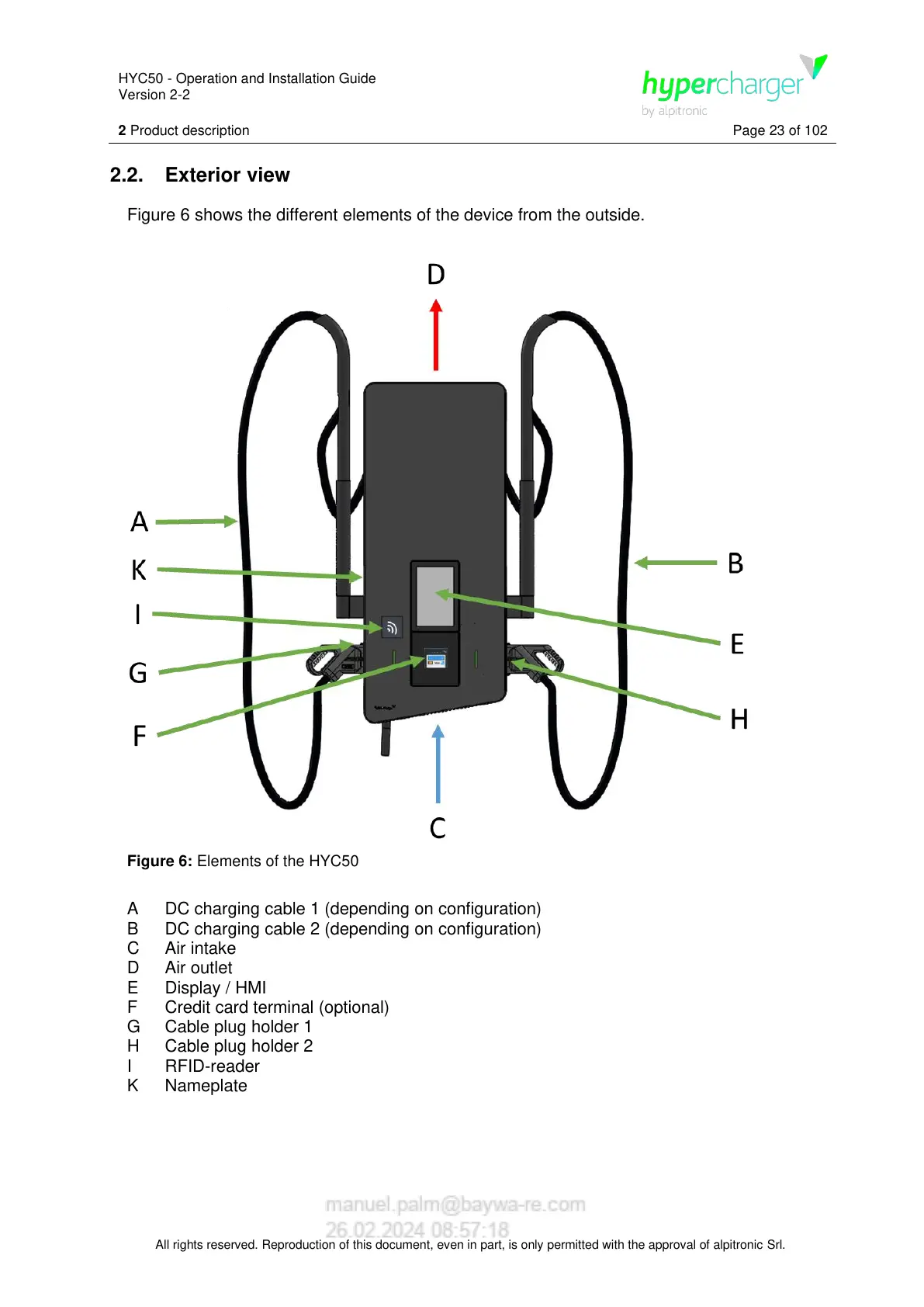

Figure 6 shows the different elements of the device from the outside.

Figure 6: Elements of the HYC50

A DC charging cable 1 (depending on configuration)

B DC charging cable 2 (depending on configuration)

C Air intake

D Air outlet

E Display / HMI

F Credit card terminal (optional)

G Cable plug holder 1

H Cable plug holder 2

I RFID-reader

K Nameplate
