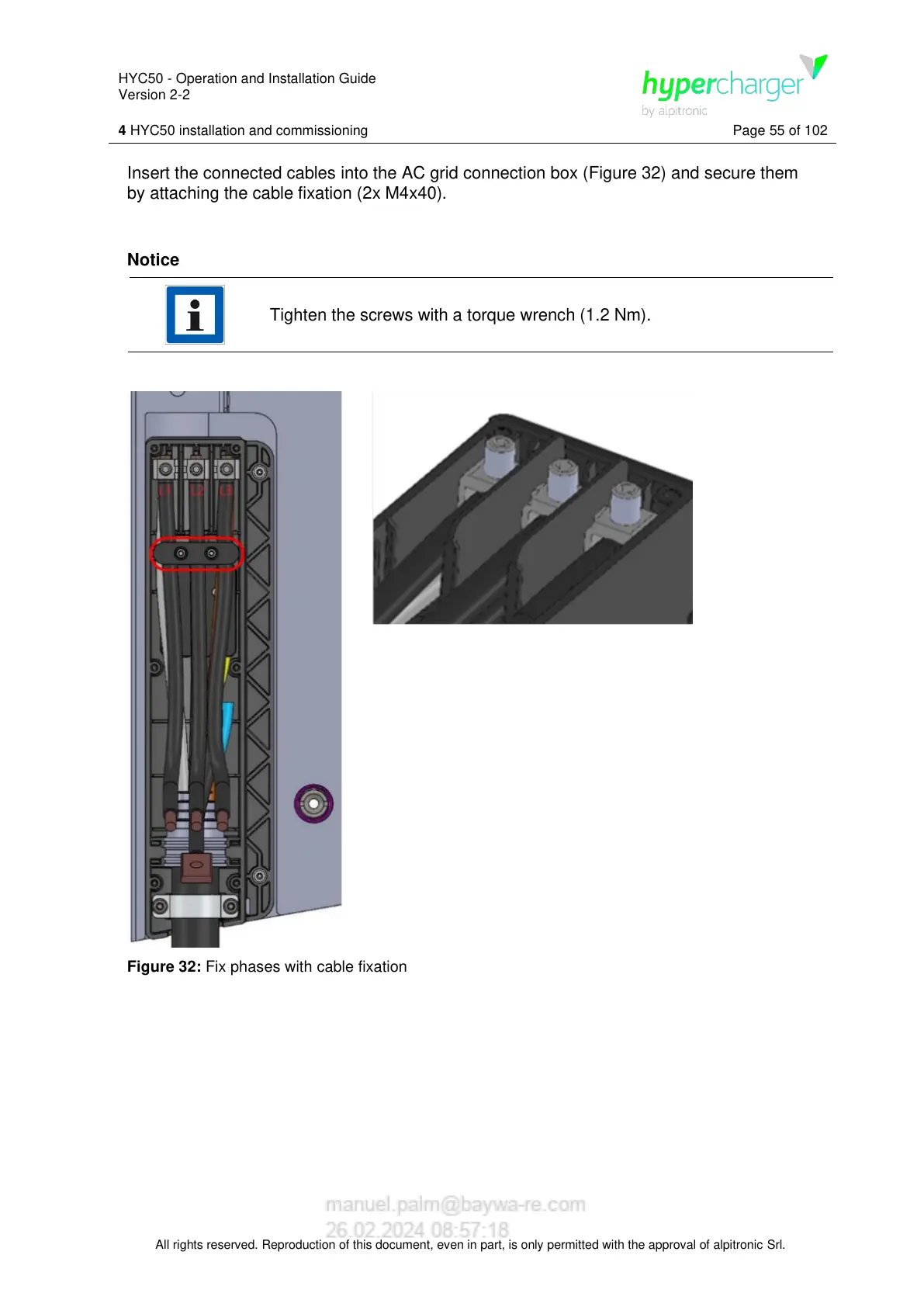

Insert the connected cables into the AC grid connection box (Figure 32) and secure them

by attaching the cable fixation (2x M4x40).

Notice

Tighten the screws with a torque wrench (1.2 Nm).

Figure 32: Fix phases with cable fixation
