HYC50 - Operation and Installation Guide
Version 2-2
4 HYC50 installation and commissioning
All rights reserved. Reproduction of this document, even in part, is only permitted with the approval of alpitronic Srl.
Notice
The hypercharger foundation is designed for level 4 wind zones
(maximum wind speed of 30 m/s; wind load q
b
= 0.56 kN/m²) and terrain
category I.
To lift and position the foundation, use the eyebolts (M16) marked in red in the following
figure.

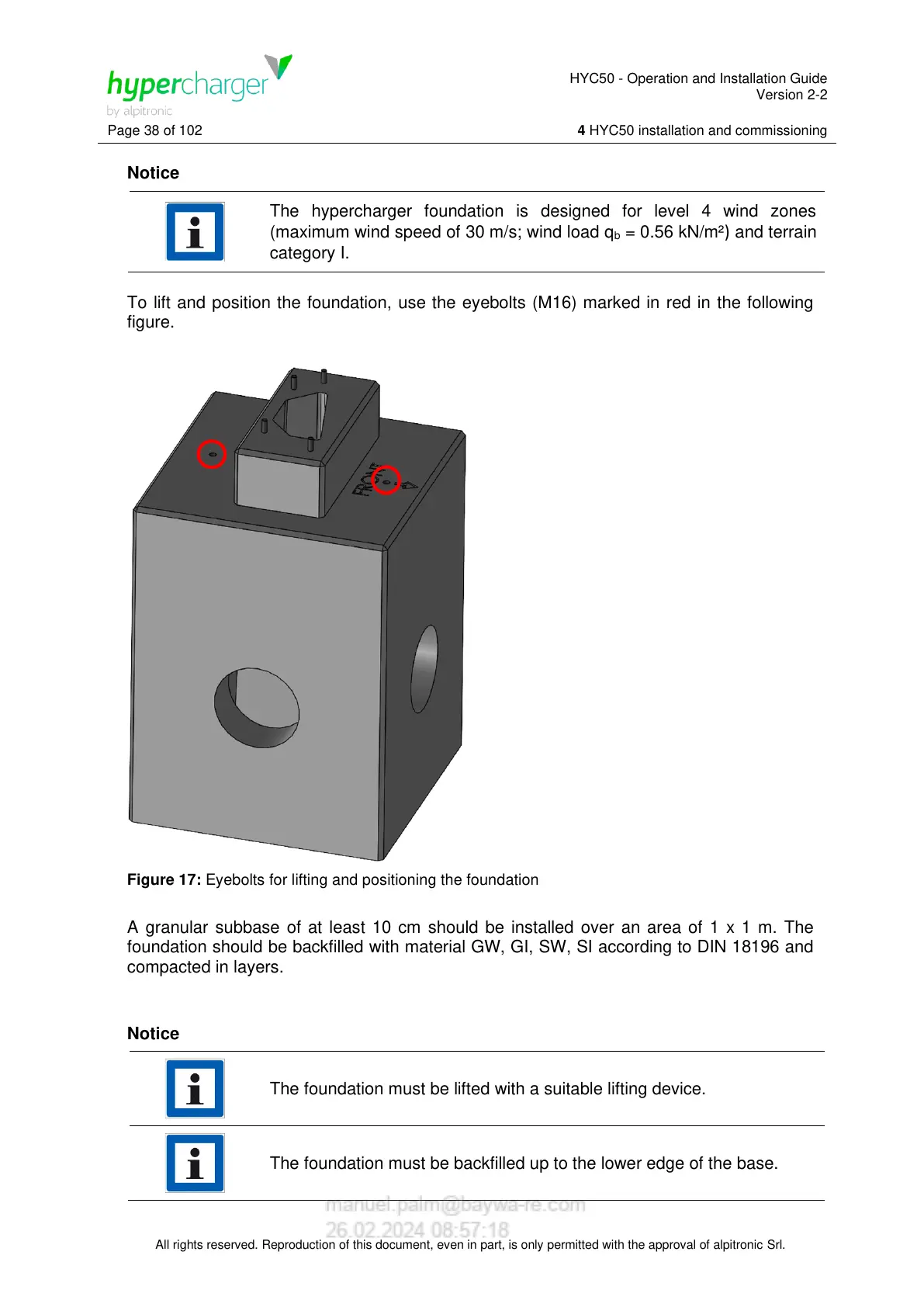

Figure 17: Eyebolts for lifting and positioning the foundation
A granular subbase of at least 10 cm should be installed over an area of 1 x 1 m. The
foundation should be backfilled with material GW, GI, SW, SI according to DIN 18196 and
compacted in layers.
Notice
The foundation must be lifted with a suitable lifting device.
The foundation must be backfilled up to the lower edge of the base.
