The wall template that is included in the scope of delivery can be used for the installation.
Notice
If the wall template is used, a mark should be drawn at the height of 62 cm
at the position where the HYC50 is to be mounted. The lower edge of the
wall template should be aligned with this mark.
When choosing the mounting height of the charging station, make sure
that the cable plug holder of the charging station is at a height of between
0.5 m and 1.5 m above the ground.

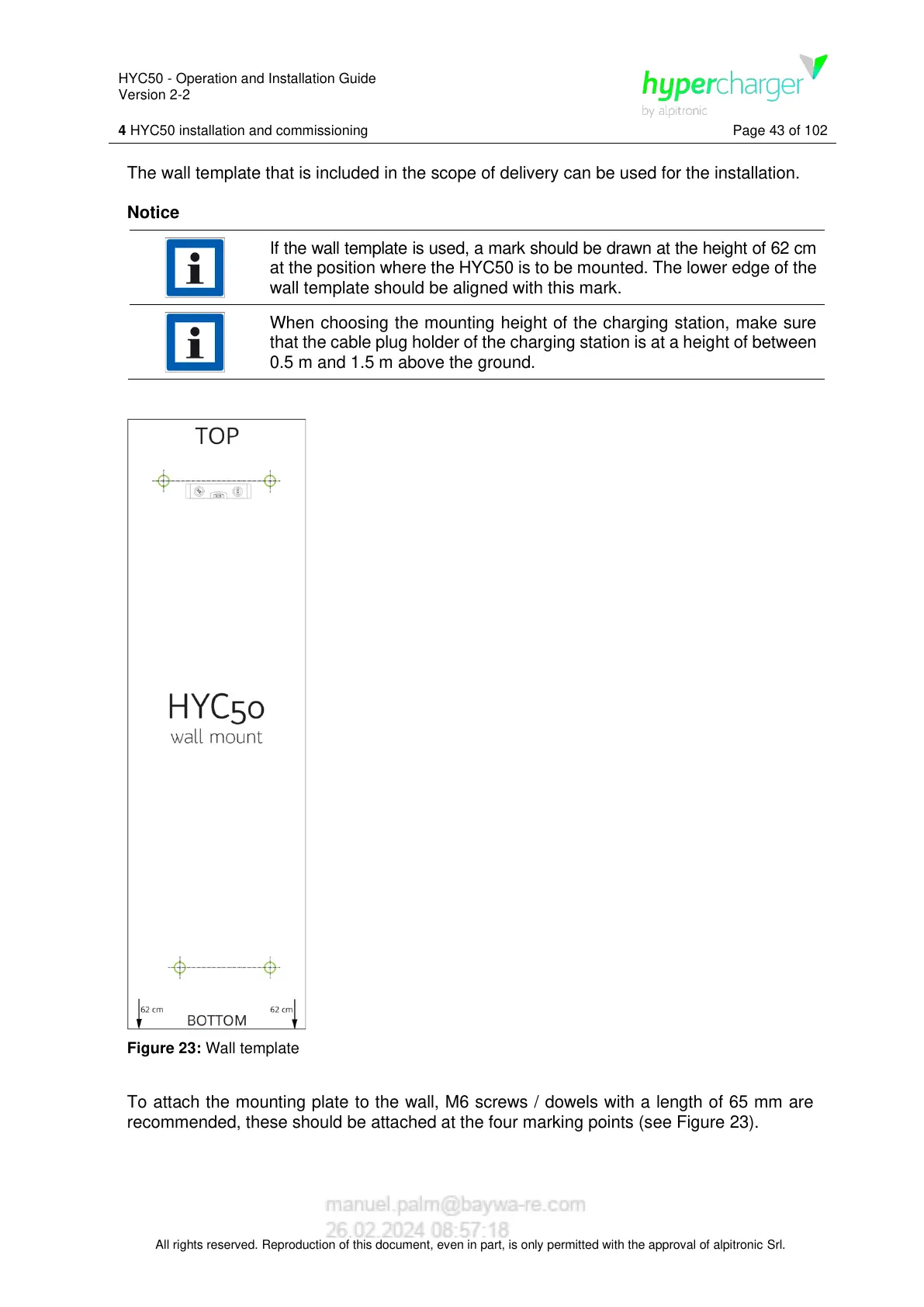

Figure 23: Wall template
To attach the mounting plate to the wall, M6 screws / dowels with a length of 65 mm are
recommended, these should be attached at the four marking points (see Figure 23).
