4.2.2. Mounting the pedestal
Notice
The pedestal is only supplied in one version, which meets the
requirements for accessibility.
The pedestal of the HYC50 is attached to the surface with four washers (4x M12x27) and
nuts (4x M12) (see Figure 20). For this purpose, separate foundation bases are offered as
an option.
Notice
Tighten the screws with a torque wrench (70 Nm).

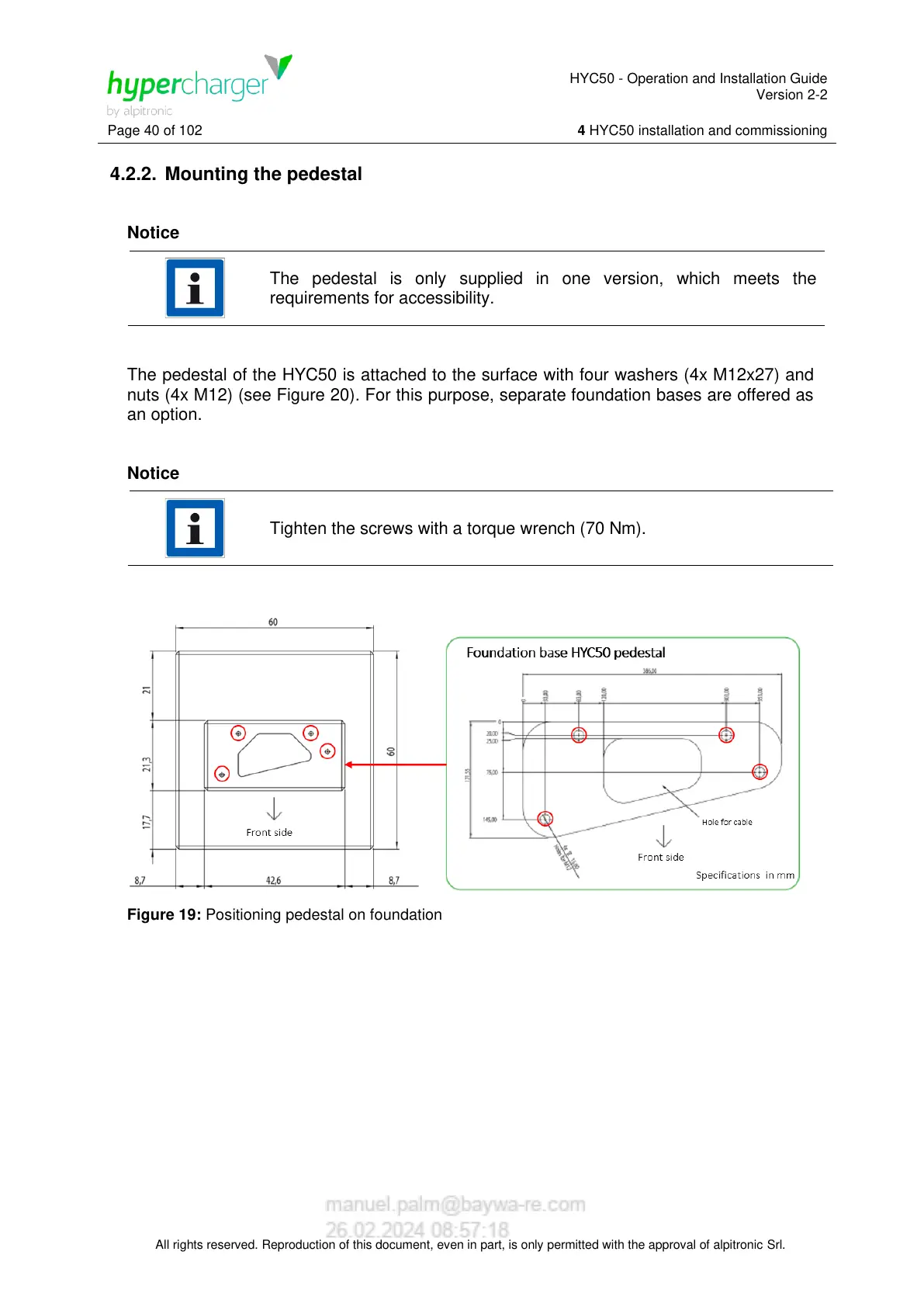

Figure 19: Positioning pedestal on foundation
