Alpitronic hypercharger HYC50 - Figure 48: Attach Protective Conductor

102 pages

Save Page as PDF

To Next Page

To Previous Page

HYC50 - Operation and Installation Guide

Version 2-2

4 HYC50 installation and commissioning

Page 65 of 102

Fasten the PE mains connection cable (marked yellow-green with cable lug) to the housing

with a nut (1x M6).

Notice

Tighten the screw with a torque wrench (10 Nm).

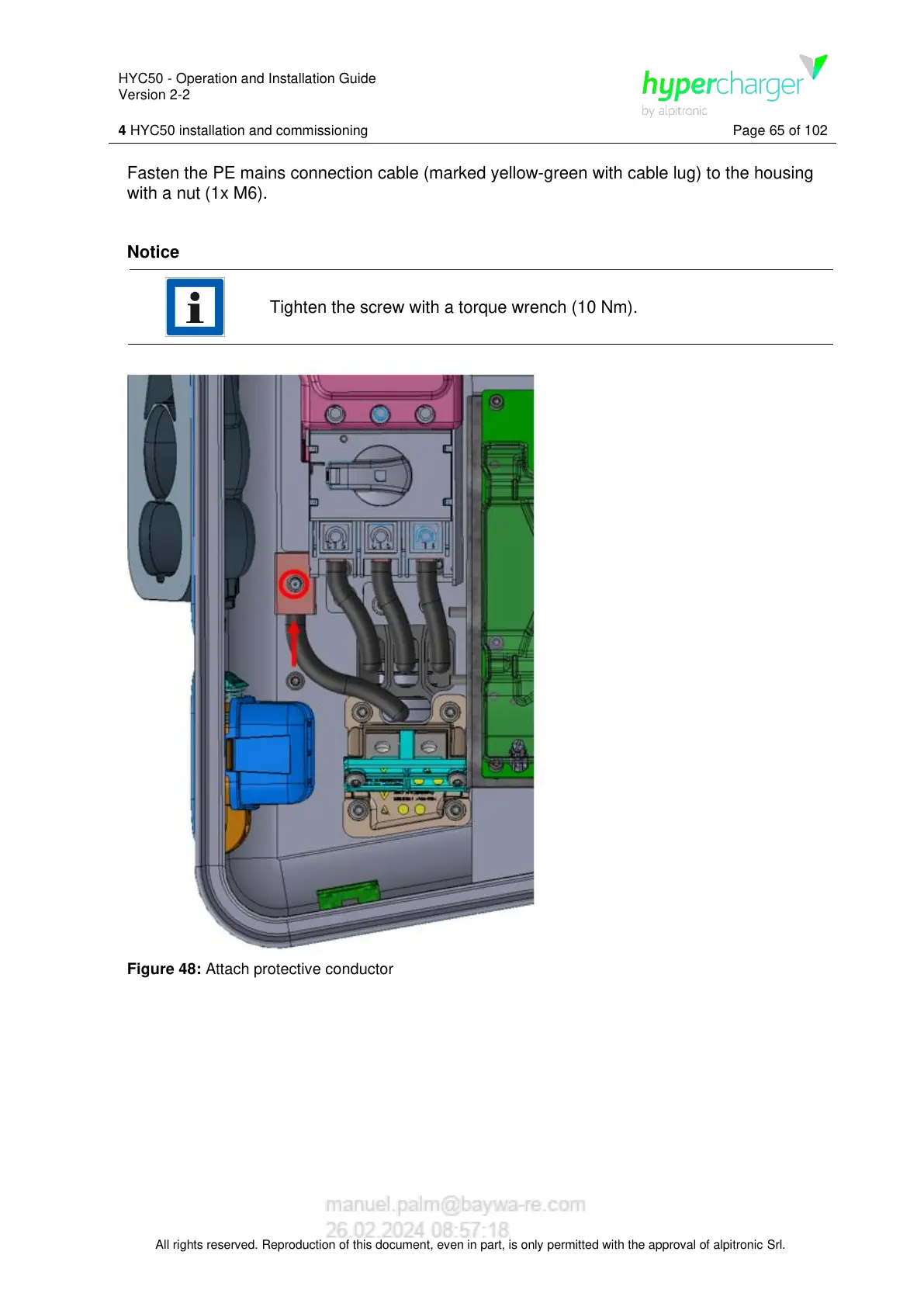

Figure 48: Attach protective conductor
