HYC50 - Operation and Installation Guide

Version 2-2

4 HYC50 installation and commissioning

Page 53 of 102

Terminals are used for contact between the individual mains connection cables and the

flexible cables (see Figure 30). Connect all flexible cables to the mains connection cables

(L1, L2, L3, PE) using cable terminals. The flexible cable is always on top.

Notice

Tighten the screw with a torque wrench (9 Nm).

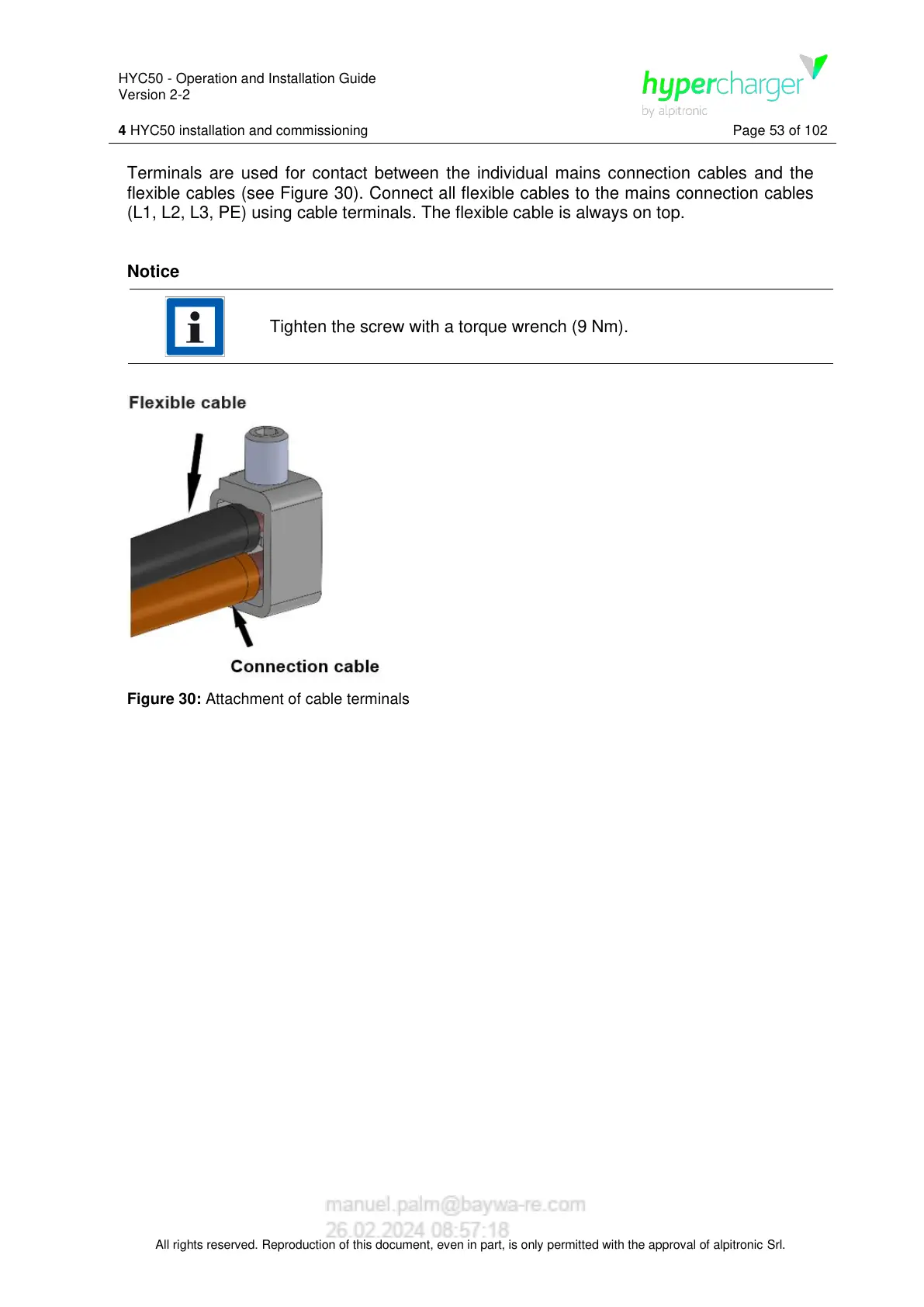

Figure 30: Attachment of cable terminals
